Foam insulation coaxial cable
Tape + Braiding outer conductor
Black PE jacket
Operating frequency: DC to 3000 MHz
PROSE braiding shield coaxial cable features high shielding effectiveness, low loss and stable impedance, effectively ensuring reliable signal transmission.
Widely used for flexible interconnection in communication systems, it can provide stable and secure signal transmission in various application scenarios.
| Inner Conductor Material | Copper Clad Aluminum, Solid | |
| Dielectric Material | Foam PE | |
| Shield 1 Material | Al Foil | |
| Shield 2 Material | Tinned Copper Wire Braiding | |
| Jacket Material | PE, Black | |
| Inner Conductor OD. | Ø 1.8 mm | |
| Dielectric OD. | Ø 5.0 mm | |
| Shield 1 OD. | Ø 5.2 mm | |
| Shield 2 OD. | Ø 5.78 mm | |
| Jacket OD. | Ø 7.5 mm | |
| UV Resistance | UL 1581 or IEC 60068-2-5 | |
| Impedance | 50±2 Ω | |
| Capacitance, Nom. | 82 pF/m | |
| Relative Velocity of Propagation | 81 % | |
| Dielectric Strength | 1600V | |
| Shielding Effectiveness | >80 dB | |
| Max. Operating Voltage | 2000V | |
| Max. Operating Frequency | 3GHz | |
| Min. Bending Radius, Single | 38mm | |
| Operating Temperature | -40°C to +80°C | |
| RoHS | Compliance | |
| Attenuation, Ambient Temperature | 20°C | |
| Average Power, Ambient Temperature | 40°C | |
| Average Power, Inner Conductor Temperature | 100°C | |
|
VSWR
|
≤1.20 @30-2700MHz
|
|
Frequency (MHz)
|
Attenuation (dB/
|
|
150
|
7.8
|
|
280
|
10.8
|
|
350
|
12.1
|
|
400
|
13.0
|
|
800
|
18.9
|
|
900
|
20.2
|
|
1200
|
23.7
|
|
1500
|
26.8
|
|
1800
|
29.7
|
|
1900
|
30.6
|
|
2000
|
31.5
|
|
2200
|
33.3
|
|
2500
|
35.8
|
|
3000
|
40.9
|
|
*Maximum attenuation value shall be 105% of the nominal attenuation value.
|
|
.jpg)
Feeder Cable 1/4", Super Flexible, Copper Outer Conductor, FRNC/LSZH Jacket, Heavy Duty
_495x300(2).jpg)

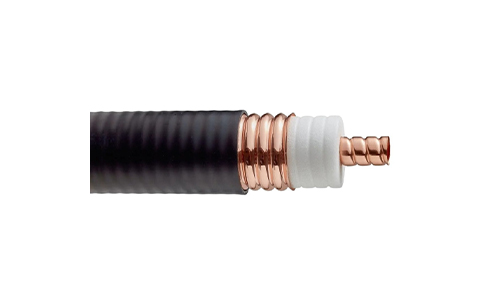

Feeder Cable 1-1/4", Low Loss, Copper Outer Conductor, PE Jacket, Heavy Duty
