Short-circuit protection
Output overvoltage protection
Input overvoltage protection
Input undervoltage alarm
Over-temperature protection function
Fan control function
Communication function

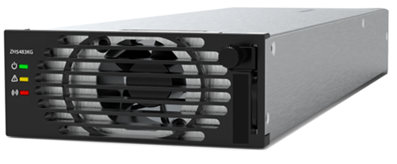

This product uses advanced digital control technology, featuring high voltage and current regulation accuracy, low ripple coefficient, high reliability, excellent craftsmanship, and low cost.
Communication between the module and the upper-level equipment uses RS485, with purely software current sharing.
It can be easily interfaced with automation systems, making it an ideal choice for communication rooms and outdoor wall-mounted communication power supplies.
| Parameter | Min. | Typical | Max. | Unit | Remark | |
| Input | Power on Voltage | 120 | / | 430 | Vdc | |
| Input Voltage | 85 | 360 | 430 | Vdc | ||
| Input Voltage MPPT | 100 | 360 | 380 | Vdc | ||
| Static Tracking Efficiency, MPPT | 99 | % | ||||
| Input Current | / | 13 | 18 | A | ||
| The Impulse Current is Instantaneous When the Machine is Turned On | ≤Maximum steady-state input 150% of peak current | Rated input/rated load | ||||
| Output | MPPT Output Voltage | 43 | 53.5 | 58 | Vdc | Customer setting |
| MPPT Output Current | / | 56 | 62.5 | A | ||
| MPPT Output Power | / | / | 3000 | W | Max.3200W @25±10℃ | |
| Voltage Regulation Accuracy | / | / | ±0.6 | % | 10%-100% Rated load | |
| Loading Effect | / | / | ±0.6 | % | 10%-100% Rated load | |
| Source Effects | / | / | ±0.1 | % | ||
| Ripple (Peak-to-Peak) | 150 | mV | 100% of Rated load | |||
| Prototype Peak Efficiency | 96.3 | / | / | % | Rated load | |
| Batch Peak Efficiency | 96 | / | / | % | Rated load | |
| Temperature Coefficient | / | / | ±0.02 | %/℃ | 20℃ | |
| Dynamically Respond to Recovery Times | / | / | 50 | ms | ||
| / | / | ±5 | % | |||
| Boot Time | 3 | / | 10 | s | ||
| Switching On and Off Overshoot | / | / | 5 | % | 50-100% rated load | |
| Steady Flow Accuracy | / | / | ±3 | % | 20%-100% rated load | |
| Hold Time | 20 | / | / | ms | ||
| Operating Temperature | -40 to +75 | ℃ | |||
| Storage Temperature | -40 to +85 | ℃ | |||
| relative Humidity | ≤90 | % | |||
| Atmospheric Pressure | 70-106 | kPa | |||
| Cooling Method | Air-cooled | ||||
| Noises | <58 | dB | |||
| Ground Resistance | ≤0.1 | Ω | |||
| Leakage Current | ≤3.5 | mA | |||
| ESD Immunity | EN/IEC 6 |
||||
| Radiation Immunity | EN/IEC 6 |
||||
| Fast Transient Burst Immunity | EN/IEC 6 |
||||
| Lightning Strike | EN/IEC6 |
||||
| Conductive Immunity | EN/IEC 6 |
||||
| Harmonic Emission | EN/IEC6 |
||||
| Radiated Emissions | EN55022, Class B | ||||
| Conducted Emissions | EN55022, Class A | ||||
