Modular design,high compatibility and extensibility.
Socket diversified, various sockets of different standard to meet the needs of different customers.
Various power input,adopt GB plug, industrial coupler and other standard power input.
Overload protection switch, prevent load short circuit and overload protection.
Strong applicability, suitable for a variety of installation methods.

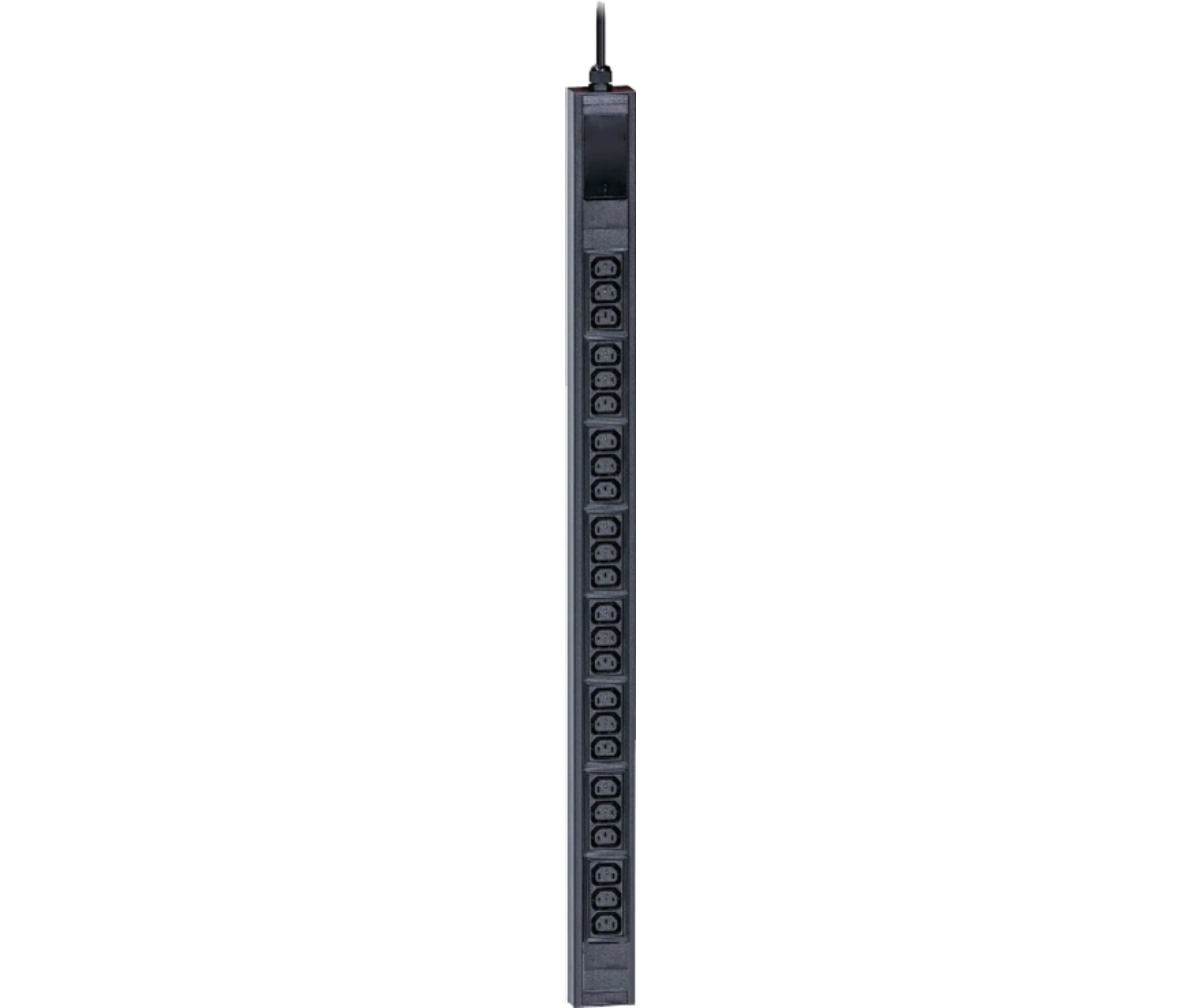

PROSE PDU (Power Distribution Unit) provides various series of specifications with different functions, installation methods and plug combinations.
It can provide suitable rack power distribution solutions for different power environments.
PDU can make the power distribution in the cabinet more orderly, reliable, safe and professional.
PDU also can make the maintenance of the power supply in the cabinet more convenient.
PROSE provides three series of PDU product: standard type, intelligent basic type and intelligent monitoring type.
The standard PDU is a multi-channel economical and practical power product which socket include GB1002, IEC320 C13, IEC320 C19 etc. Intelligent basic type can read power bus current, voltage and other information remotely.
Intelligent monitoring type can read power bus current, separate current by each channel and separate on and off settings.
| Item | Technical Parameter |
| Size | (W)67x(D)44.5x(H)2243mm |
| Standard | CE, EN55032 & EN55035, EN62368-1, RoHS |
| Input | 220V,32A,2P+E,50Hz |
| Output | 30*C13+6*C19,2P Circuit Breaker/Surge |
| Input Line | 3*6mm² |
| Line Mode | Upper line |
| Working Temperature | 0 ~ 45 °C |
| Color | Black |
| Protection Class | IP44 |
| Lighting Protection | Yes |
| Installation Position | The rear sides of the cabinet are mounted vertically |
