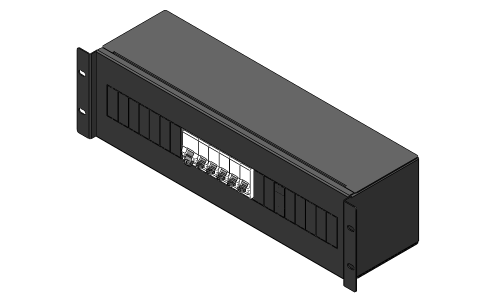

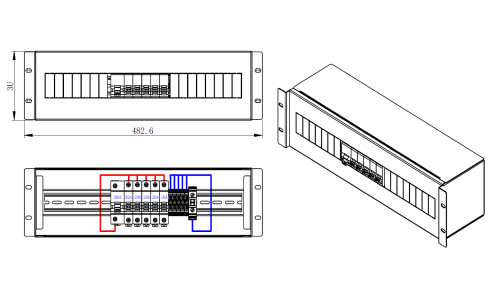

Standard 19-inch rack-mount design
All-metal enclosure for high mechanical strength and reliability
Front-facing power distribution layout for easy management
Compact structural design to optimize rack space utilization
High compatibility with standard server cabinets
Industrial-grade design suitable for continuous data center operation
PDU (Power Distribution Unit) is the key node for rack-level power distribution, safeguarding data center electrical safety and energy efficiency. Our PDUs deliver high reliability and easy installation, each circuit/output is protected by an independent miniature circuit breaker (MCB) for rapid fault isolation, effectively protecting critical loads and enabling stable operations and granular energy management.
| Description | Technical Specification |
| Rated Working Voltage | AC 230/240 V |
| Rated Frequency | 50/60 Hz |
| Input MCB | 1x 100 A (1P) |
| Output MCBs | 4x 20 A (1P) + 1x 10 A (1P) |
| Type | Standard 19 inch rack |
| Height | 3U |
| Material of Enclosure | SPCC |
| Finish | Powdwer coating in RAL9005(Black) |
| Working Temperature | -20 to +65 ℃ |
| Storage Temperature | -40 to +80 ℃ |
| RoHS | Compliant |
.png)
DC Power Distribution Unit, total 2 parallel inputs & 9 outputs
.png)
DC Power Distribution Unit, total 2 parallel inputs & 8 outputs
