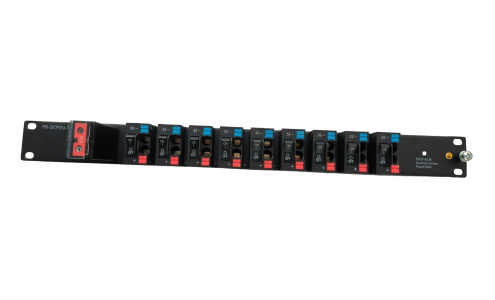

19 inch 1U rack installation
1 input with two parallel ports and 9 outputs
With circuit breaker, can disconnect the circuit when fault or overload happens
Easy connection for input and output wiring
Insulation of output connectors
Large current discharge capability and low residual voltage
Each circuit breaker with a status alarm indicating window
PDU (Power Distribution Unit) is the key node for rack-level power distribution, safeguarding data center electrical safety and energy efficiency. Our PDUs deliver high reliability and easy installation, with built-in surge protection and circuit-level output alarms. Each circuit / output is protected by an independent miniature circuit breaker (MCB) for rapid fault isolation, effectively protecting critical loads and enabling stable operations and granular energy management.
| Description | Technical Specification |
| Nominal Operating Voltage Uo | -48 V |
| Input Voltage Range | -40 V ~ -75 V |
| Protection Mode | -48 V-RTN, RTN-PE |
| Nominal Discharge Current In(8/20us) |
-48 V-RTN: 10 kA RTN-PE: 15 kA |
| Max. Discharge Current Imax(8/20us) | 15 kA |
| Voltage Protection Level Up | -48 V-RTN: ≤500 V |
| Connection | In serial connection |
| Indicators | In front of DCPDU, (Normal: Green, Fault: Red) |
| Nominal Load Current IR | Two inputs: total 250 A, each 125 A max 9 outputs: total 250 A , maximum current 32 A |
| Rated Current of Circuit Breaker | 32 A ×9 |
| Wiring | Input: Pressed frame crimp connectors |
| Output: Spring crimp connectors | |
| Wire Section Area | Input: 4~35 mm² |
| Output: 1.5~16 mm² | |
| Grounding | By M6 grounding cap nut connectors on the front & rear panel |
| Type | Standard 19 inch rack |

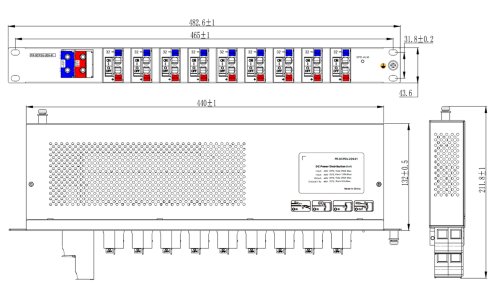

| Dimensions | 483 mm x 132 mm x 43.6 mm |
| Material of Enclosure | SPCC |
| Finish | Powdwer coating in RAL9005(Black) |
| Working Temperature | -20 to +65 ℃ |
| Storage Temperature | -40 to +80 ℃ |
| RoHS | Compliant |
