High grade copper wire
Solid or stranded conductor
Rated operating voltage: 0.6/1kV
Rated operating temperature: -15°C to +90°C
PROSE power cable features safe and stable performance, effectively ensuring reliable power supply.
Widely used in communication systems and other related fields, it can provide safe and stable power support for various equipment.
| PW2XHR6-STA-XCXXmm2-X | Armored Power Cable | |
|
1 2 3
|
|
|
| *1 indicate the core quantity, 2-2cores, 3-3cores, 4-4cores, 5-5cores. | ||
| *2 indicate the single core section area. | ||
| *3 indicate the insulation colour, the meaning of the numbers is in the "colour code" table. | ||
|
For example:
|
||
|
Part No.
|
Description
|
|
| PW2XHR6-STA-2C10mm2-1 | Power cable, 0.6/1kV, 2x10mm^2, Class 2, Blue and Brown XLPE insulation, Black LSZH inner sheath and outer sheath, Galvanized steel tape armor | |
| PW2XHR6-STA-3C25mm2-2 | Power cable, 0.6/1kV, 3x25mm^2, Class 2, Blue, Brown and Yellow/Green XLPE insulation, Black LSZH inner sheath and outer sheath, Galvanized steel tape armor | |
| PW2XHR6-STA-4C10mm2-1 | Power cable, 0.6/1kV, 4x10mm^2, Class 2, Blue, Brown, Black and Grey XLPE insulation, Black LSZH inner sheath and outer sheath, Galvanized steel tape armor | |
| PW2XHR6-STA-5C25mm2-1 | Power cable, 0.6/1kV, 5x25mm^2, Class 2, Yellow/Green, Blue, Brown, Black and Grey XLPE insulation, Black LSZH inner sheath and outer sheath, Galvanized steel tape armor | |
| Insulation colour: The meaning of the number or letter is as below. | ||||||||||||
| 2 cores: | ||||||||||||
|
Number
|
0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||
|
Colour
|
Red, Blue | Blue, Brown | Blue, Black | Blue, Grey | Black, Grey | Red, Black | Black, White | Blue, White | Red, White | |||
| 3 cores: | ||||||||||||
|
Number
|
0 | 1 | 2 | 3 | 4 | 5 | ||||||
|
Colour
|
Yellow, Green, Red | Blue, Black, Brown | Blue, Brown, Yellow/Green | Red, Yellow, Blue | Brown, Black, Grey | Red, Blue, Yellow/Green | ||||||
|
Number
|
6 | 7 | 8 | 9 | 10 | 11 | ||||||
|
Colour
|
Black, White, Red | Black, Blue, Green | Black, Blue, Yellow/Green | Brown, Black, Yellow/Green | Blue, Brown, Green | Black, White, Green | ||||||
|
Number
|
12 | |||||||||||
|
Colour
|
White, Red, Yellow/Green | |||||||||||
| 4 cores: | ||||||||||||
|
Number
|
0 | 1 | 2 | |||||||||
|
Colour
|
Blue, Yellow, Green, Red | Blue, Brown, Black, Grey | Red, Blue, Yellow, Black | |||||||||
|
Number
|
3 | 4 | 5 | |||||||||
|
Colour
|
Grey, White, Red, Blue | Blue, Brown, Black, Yellow/Green | Black, Brown, Grey, Yellow/Green | |||||||||
|
Number
|
6 | 7 | 8 | |||||||||
|
Colour
|
Blue, Brown, Red, Black | Red, Yellow, Green, Black | Red, Blue, White, Black | |||||||||
|
5 cores:
|
||||||||||||
|
Number
|
0
|
1
|
2
|
|||||||||
|
Colour
|
Blue, Yellow, Green, Red, Black
|
Yellow/Green, Blue, Brown, Black, Grey
|
Red, Yellow, Blue, Brown, Green
|
|||||||||
|
Number
|
3
|
4
|
5
|
|||||||||
|
Colour
|
Black insulation with white number (1-5)
|
Yellow/Green, Red, Yellow, Blue, Black
|
Blue, Yellow, Green, Red, Yellow/Green
|
|||||||||
|
Number
|
6
|
7
|
|
|||||||||
|
Colour
|
Black, Red, Blue, White, Yellow/Green
|
Red, Yellow, Blue, White, Yellow/Green
|
|
|||||||||
| Inner sheath colour: Black | ||||||||||||
| Outer sheath colour: Black | ||||||||||||
|

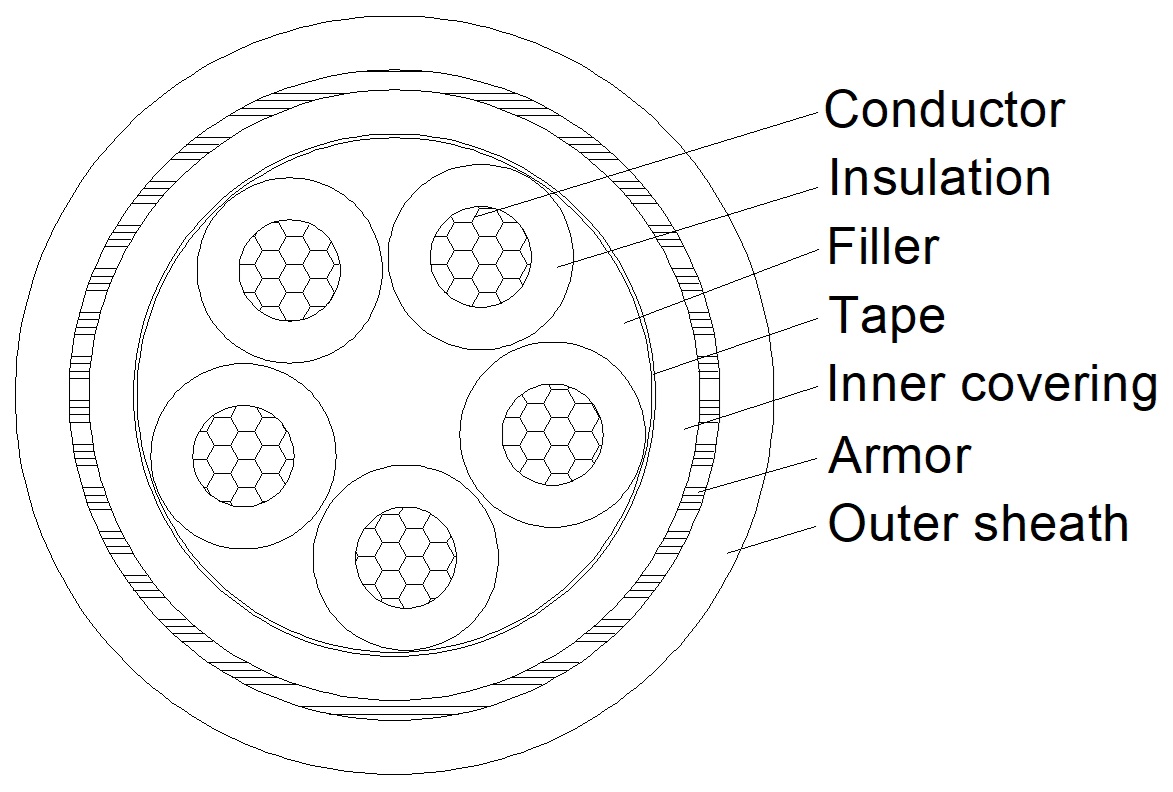

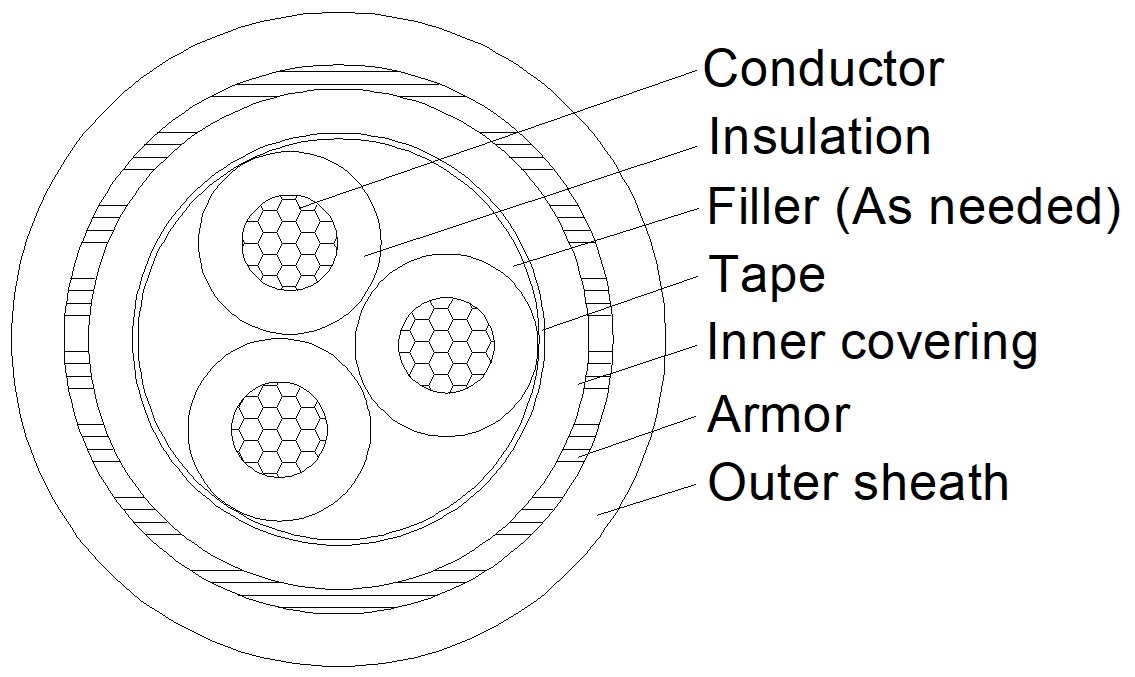

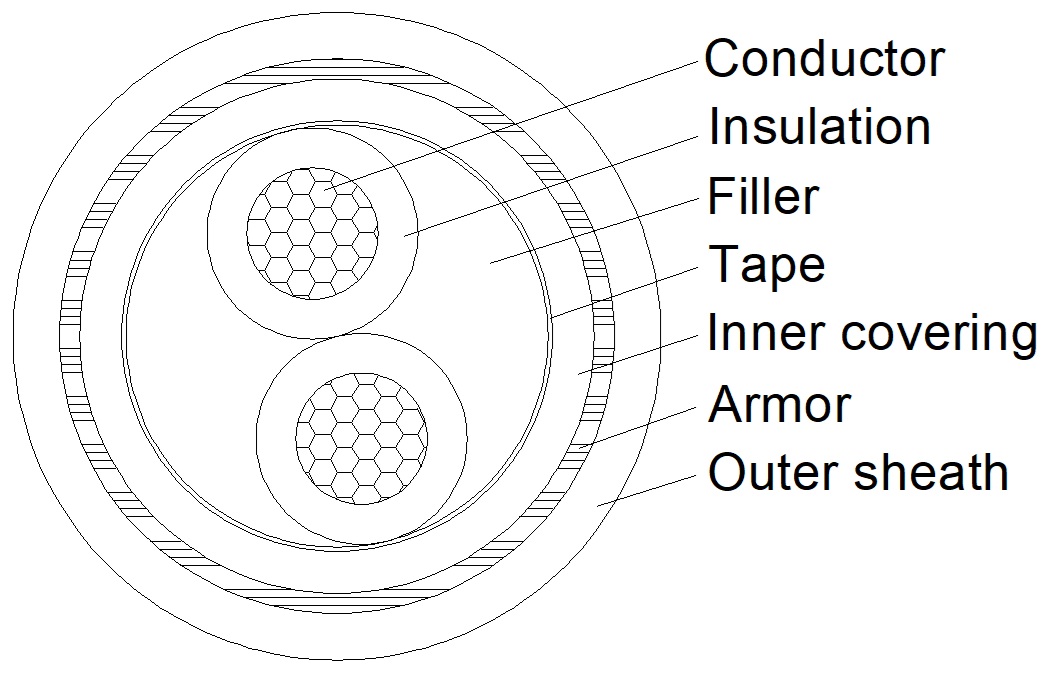

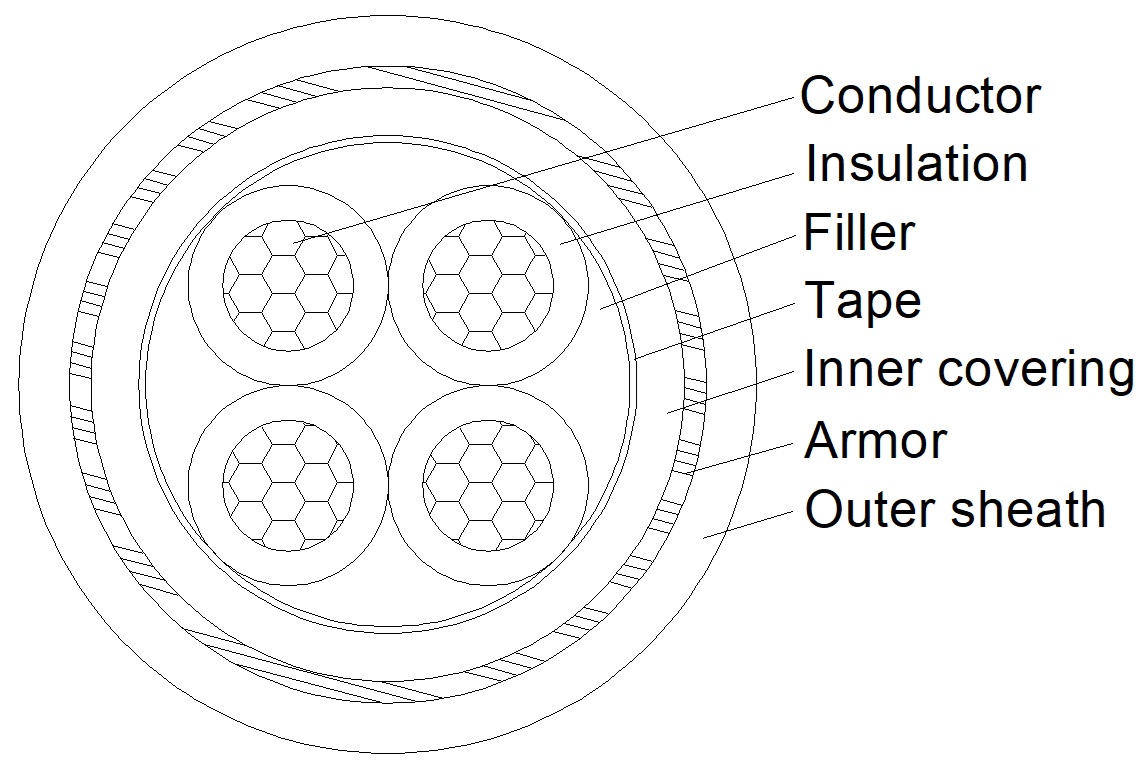

No.
|
Item
|
PW2XHR6-STA-XCXXmm2-X | |
|
1
|
Conductor
|
Material
|
Annealed bare copper, Class 1 for section ≤6mm^2, Class 2 for others |
|
2
|
Insulation
|
Material
|
XLPE |
| 3 | Filler | Material | As needed |
| 4 | Tape |
Material
|
Optional |
| 5 | Inner Sheath | Material | LSZH |
| 6 | Armor | Material | Galvanized steel tape |
| 7 | Outer Sheath |
Material
|
LSZH, ST8 |
|
PN
|
Max. Conductor Resistance, 20°C (Ω/km) | Insulation Thickness, Nom. (mm) | Nom. Armor Metal tape Thickness (mm) | Outer Sheath Thickness, Min. (mm) | Overall Diameter, Approx. (mm) |
|
PW2XHR6-STA-2C2.5mm2-X
|
7.41
|
0.7
|
0.20
|
1.24
|
13.0
|
|
PW2XHR6-STA-2C4mm2-X
|
4.61
|
0.7
|
0.20
|
1.24
|
14.0
|
|
PW2XHR6-STA-2C6mm2-X
|
3.08
|
0.7
|
0.20
|
1.24
|
15.0
|
|
PW2XHR6-STA-2C10mm2-X
|
1.83
|
0.7
|
0.20
|
1.24
|
17.6
|
|
PW2XHR6-STA-2C16mm2-X
|
1.15
|
0.7
|
0.20
|
1.24
|
19.6
|
|
PW2XHR6-STA-2C25mm2-X
|
0.727
|
0.9
|
0.20
|
1.24
|
22.6
|
|
PW2XHR6-STA-2C35mm2-X
|
0.524
|
0.9
|
0.20
|
1.24
|
24.8
|
|
PW2XHR6-STA-2C50mm2-X
|
0.387
|
1.0
|
0.20
|
1.24
|
27.2
|
|
PW2XHR6-STA-2C70mm2-X
|
0.268
|
1.1
|
0.20
|
1.32
|
31.4
|
|
PW2XHR6-STA-2C95mm2-X
|
0.193
|
1.1
|
0.20
|
1.40
|
34.8
|
|
PW2XHR6-STA-3C2.5mm2-X
|
7.41
|
0.7
|
0.20
|
1.24
|
13.5
|
|
PW2XHR6-STA-3C4mm2-X
|
4.61
|
0.7
|
0.20
|
1.24
|
14.6
|
|
PW2XHR6-STA-3C6mm2-X
|
3.08
|
0.7
|
0.20
|
1.24
|
15.7
|
|
PW2XHR6-STA-3C10mm2-X
|
1.83
|
0.7
|
0.20
|
1.24
|
18.5
|
|
PW2XHR6-STA-3C16mm2-X
|
1.15
|
0.7
|
0.20
|
1.24
|
20.6
|
|
PW2XHR6-STA-3C25mm2-X
|
0.727
|
0.9
|
0.20
|
1.24
|
23.9
|
|
PW2XHR6-STA-3C35mm2-X
|
0.524
|
0.9
|
0.20
|
1.24
|
26.2
|
|
PW2XHR6-STA-3C50mm2-X
|
0.387
|
1.0
|
0.20
|
1.32
|
29.0
|
|
PW2XHR6-STA-3C70mm2-X
|
0.268
|
1.1
|
0.20
|
1.40
|
33.5
|
|
PW2XHR6-STA-3C95mm2-X
|
0.193
|
1.1
|
0.50
|
1.56
|
38.9
|
|
PW2XHR6-STA-4C2.5mm2-X
|
7.41
|
0.7
|
0.20
|
1.24
|
14.3
|
|
PW2XHR6-STA-4C4mm2-X
|
4.61
|
0.7
|
0.20
|
1.24
|
15.6
|
|
PW2XHR6-STA-4C6mm2-X
|
3.08
|
0.7
|
0.20
|
1.24
|
16.8
|
|
PW2XHR6-STA-4C10mm2-X
|
1.83
|
0.7
|
0.20
|
1.24
|
19.9
|
|
PW2XHR6-STA-4C16mm2-X
|
1.15
|
0.7
|
0.20
|
1.24
|
22.3
|
|
PW2XHR6-STA-4C25mm2-X
|
0.727
|
0.9
|
0.20
|
1.24
|
25.9
|
|
PW2XHR6-STA-4C35mm2-X
|
0.524
|
0.9
|
0.20
|
1.24
|
28.6
|
|
PW2XHR6-STA-4C50mm2-X
|
0.387
|
1.0
|
0.20
|
1.40
|
31.8
|
|
PW2XHR6-STA-4C70mm2-X
|
0.268
|
1.1
|
0.50
|
1.48
|
38.5
|
|
PW2XHR6-STA-4C95mm2-X
|
0.193
|
1.1
|
0.50
|
1.64
|
42.7
|
|
PW2XHR6-STA-5C2.5mm2-X
|
7.41
|
0.7
|
0.20
|
1.24
|
15.3
|
|
PW2XHR6-STA-5C4mm2-X
|
4.61
|
0.7
|
0.20
|
1.24
|
16.6
|
|
PW2XHR6-STA-5C6mm2-X
|
3.08
|
0.7
|
0.20
|
1.24
|
18.0
|
|
PW2XHR6-STA-5C10mm2-X
|
1.83
|
0.7
|
0.20
|
1.24
|
21.5
|
|
PW2XHR6-STA-5C16mm2-X
|
1.15
|
0.7
|
0.20
|
1.24
|
24.2
|
|
PW2XHR6-STA-5C25mm2-X
|
0.727
|
0.9
|
0.20
|
1.24
|
28.2
|
|
PW2XHR6-STA-5C35mm2-X
|
0.524
|
0.9
|
0.20
|
1.32
|
31.4
|
|
PW2XHR6-STA-5C50mm2-X
|
0.387
|
1.0
|
0.20
|
1.48
|
35.0
|
|
PW2XHR6-STA-5C70mm2-X
|
0.268
|
1.1
|
0.50
|
1.56
|
42.2
|
|
PW2XHR6-STA-5C95mm2-X
|
0.193
|
1.1
|
0.50
|
1.72
|
47.1
|
|
Rated Voltage
|
0.6/1 kV |
|
Dielectric Strength
|
AC 3500V, 5min, no breakdown |
|
Rated Temperature
|
-15°C to +90°C |
|
RoHS
|
Compliant
|
|
Min. Bending Radius
|
12D (D= overall diameter)
|
|
Flame Retardant
|
IEC 60332-1-2
|
| Halogen Free | IEC 60754-1, IEC 60754-2 |
| Low Smoke | IEC 61034-2 |
