High grade copper wire
Flexible stranded conductor
Rated operating voltage: 0.6/1kV
Rated operating temperature: -15°C to +90°C

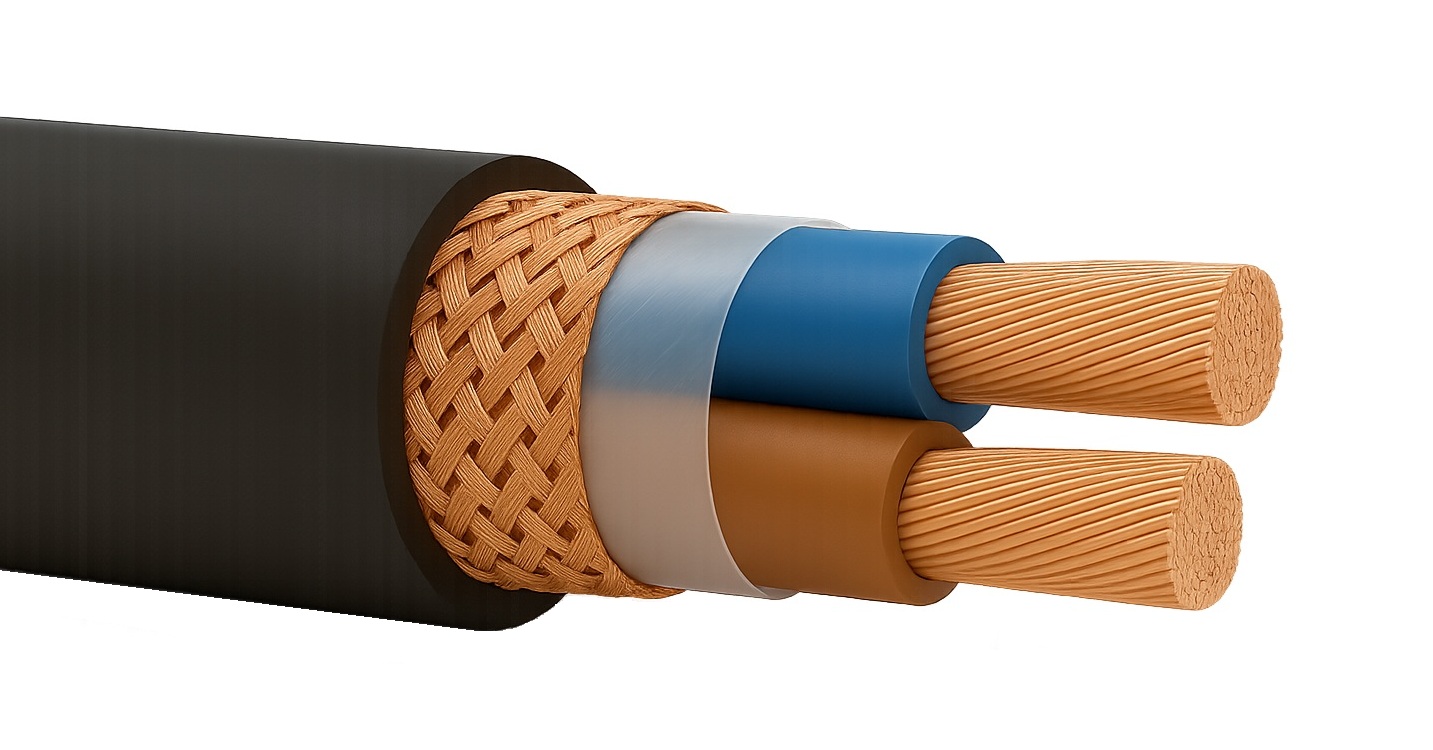

PROSE 2-core shielded power cable features safe and stable performance, effective shielding and good anti-interference ability, effectively ensuring reliable DC&AC power supply.
Widely used in communication systems and other related fields, it can provide safe and stable power support for various communication equipment.
| PW2XHK-2CXXmm2-X |
Power cable
|
|
|
1 2 3
|
|
|
| *1 indicate the core quantity, 2-2cores. | ||
| *2 indicate the single core section area. | ||
| *3 indicate the insulation colour, the meaning of the numbers or letters is in the "colour code" table. | ||
|
For example:
|
||
|
Part No.
|
Description
|
|
| PW2XHK-S-2C10mm2-2 | Power cable, 0.6/1kV, 2x10mm^2, Class 5, Black and Blue XLPE insulation, Black LSZH sheath, Copper wire braiding shield. | |
| PW2XHK-S-2C16mm2-1 | Power cable, 0.6/1kV, 2x16mm^2, Class 5, Blue and Brown XLPE insulation, Black LSZH sheath, Copper wire braiding shield. | |
| Insulation colour: The meaning of the number or letter is as below. | ||||||||||||
|
Number
|
0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||
|
Colour
|
Red, Blue | Blue, Brown | Blue, Black | Blue, Grey | Black, Grey | Red, Black | Black, White | Blue, White | Red, White | |||
|
Sheath colour: Black
|
||||||||||||
|

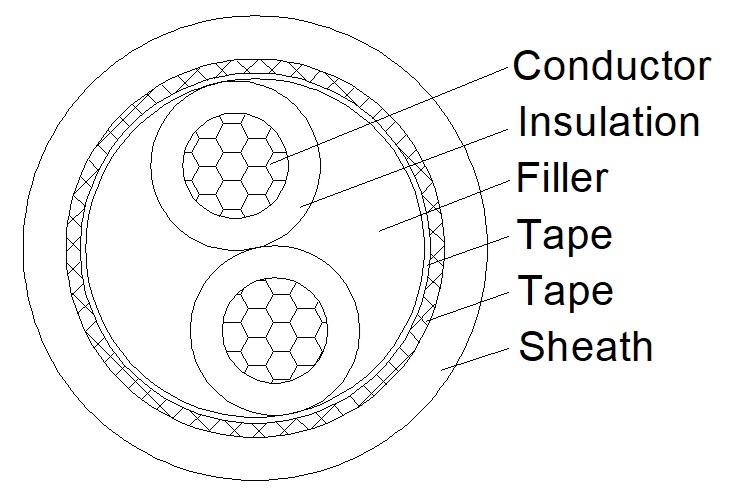

No.
|
Item
|
PW2XHK-S-2CXXmm2-X | |
|
1
|
Conductor
|
Material
|
Annealed bare copper, Class 5 |
| Quantity | 2 cores | ||
|
2
|
Insulation
|
Material
|
XLPE |
| 3 | Filler | Material | Optional |
| 4 | Tape |
Material
|
Optional |
| 5 | Shield | Material | Copper wire braiding |
| Coverage | ≥80% | ||
| 6 |
Sheath
|
Material
|
LSZH |
|
PN
|
Max. Conductor
resistance, 20℃
(Ω/km)
|
Nom. Insulation thickness
(mm)
|
Min. Sheath thickness
(mm)
|
Approx. Overall
Diameter,
(mm)
|
|
PW2XHK-S-2C1.5mm2-X
|
13.3
|
0.7
|
0.75
|
8.6
|
|
PW2XHK-S-2C2.5mm2-X
|
7.98
|
0.7
|
0.75
|
9.5
|
|
PW2XHK-S-2C4mm2-X
|
4.95
|
0.7
|
0.92
|
11.0
|
|
PW2XHK-S-2C6mm2-X
|
3.30
|
0.7
|
0.92
|
12.2
|
|
PW2XHK-S-2C10mm2-X
|
1.91
|
0.7
|
1.09
|
15.6
|
|
PW2XHK-S-2C16mm2-X
|
1.21
|
0.7
|
1.09
|
17.6
|
|
PW2XHK-S-2C25mm2-X
|
0.78
|
0.9
|
1.09
|
21.4
|
|
PW2XHK-S-2C35mm2-X
|
0.554
|
0.9
|
1.26
|
24.0
|
|
Rated Voltage
|
0.6/1 kV |
|
Dielectric Strength
|
AC 3500V, 5min, no breakdown |
|
Rated Temperature
|
-15°C to +90°C |
|
RoHS
|
Compliant
|
| Flame Retardant | IEC 60332-1-2 |
| Halogen Free | IEC 60754-1, IEC 60754-2 |
| Low Smoke | IEC 61034-2 |
|
Min. Bending Radius
|
8D (D= overall diameter)
|
|
UV Resistance For Black Sheath, (UL 1581-1200)
|
Compliant |

Power Cable, 450/750V, 1 Core, Class 5 Flexible Copper Conductor, LSZH Insulation, Unshielded, No Sheath
_495x300(4).jpg)

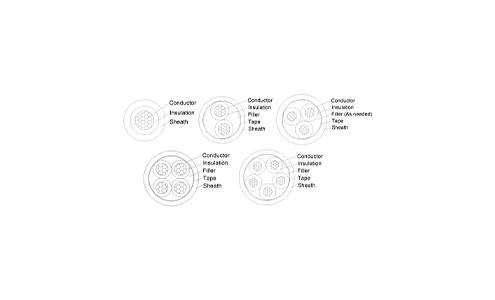

DC/AC Power Cable, 0.6/1kV, Class 5 Conductor, 1-5 Cores, PVC Insulation, PVC Sheath.
