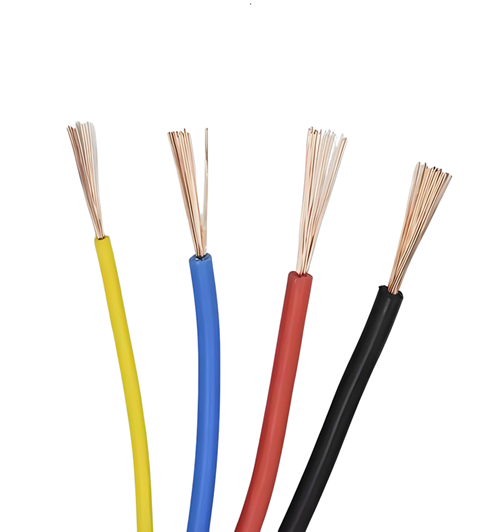

High grade copper wire
Class 5 flexible conductor
Rated operating voltage: 450/750V
Rated operating temperature: 70°C
PROSE power cable features safe and stable performance, effectively ensuring reliable power supply.
Widely used in communication systems and other related fields, it can provide safe and stable power support for various equipment.
| PWHK-1CXXmm2-XX | Power cable, 1 core | |
|
1 2
|
|
|
|
*1 indicate the single core section area
|
||
|
*2 indicate the insulation color, the meaning of the letters is in the "color code" table.
|
||
|
For example:
|
||
|
Part No.
|
Description
|
|
| PWHK-1C1.5mm2-YG | Power cable, 450/750V, 1x1.5mm^2, Class 5 copper conductor, Yellow/Green LSZH insulation | |
| PWHK-1C16mm2-RD | Power cable, 450/750V, 1x16mm^2, Class 5 copper conductor, Red LSZH insulation | |
| PWHK-1C16mm2-BK | Power cable, 450/750V, 1x16mm^2, Class 5 copper conductor, Black LSZH insulation | |
| Insulation colour: The meaning of the letter is as below. | ||||||||||||
| C.C. | Blue | Orange | Green | Brown | Grey | White | Red | Black | Yellow | Violet | Yellow /Green* | |
| Abb.(XX) | BL | OR | GN | BN | GY | WH | RD | BK | YW | VT | YG | |
| *(For Yellow/Green) Green is the color stripe. | ||||||||||||
|
No.
|
Item
|
PWHK-1CXXmm2-XX | ||
|
1
|
Conductor
|
Material
|
Annealed bare copper, IEC 60228 Class 5
|
|
|
Quantity
|
1 core
|
|||
|
2
|
Insulation
|
Material
|
LSZH
|
|
| Note: For larger cross section conductor, tape may also be used around conductor. | ||||
|
PN
|
Max. Conductor Resistance, 20°C (Ω/km) | Nom. Insulation Thickness (mm) | Approx. Overall Diameter (mm) |
|
PWHK-1C1.5mm2-XX
|
13.3
|
0.7
|
3.0
|
|
PWHK-1C2.5mm2-XX
|
7.98
|
0.8
|
3.7
|
|
PWHK-1C4mm2-XX
|
4.95
|
0.8
|
4.2
|
|
PWHK-1C6mm2-XX
|
3.30
|
0.8
|
4.8
|
|
PWHK-1C10mm2-XX
|
1.91
|
1.0
|
6.3
|
|
PWHK-1C16mm2-XX
|
1.21
|
1.0
|
7.3
|
|
PWHK-1C25mm2-XX
|
0.780
|
1.2
|
9.0
|
|
PWHK-1C35mm2-XX
|
0.554
|
1.2
|
10.7
|
|
PWHK-1C50mm2-XX
|
0.386
|
1.4
|
12.7
|
|
PWHK-1C70mm2-XX
|
0.272
|
1.4
|
14.4
|
|
PWHK-1C95mm2-XX
|
0.206
|
1.6
|
16.5
|
|
PWHK-1C120mm2-XX
|
0.161
|
1.6
|
18.2
|
|
PWHK-1C150mm2-XX
|
0.129
|
1.8
|
20.4
|
|
PWHK-1C185mm2-XX
|
0.106
|
2.0
|
22.8
|
|
PWHK-1C240mm2-XX
|
0.0801
|
2.2
|
25.4
|
|
Rated Voltage
|
450/750 V
|
|
Dielectric Strength
|
AC 2500V, 5min, no breakdown
|
|
Rated Temperature
|
-15°C to +70°C
|
|
RoHS
|
Compliant
|
|
Min. Bending Radius
|
8D (D= overall diameter)
|
|
Flame Retardant
|
IEC 60332-1-2
|
| Halogen Free | IEC 60754-1, IEC 60754-2 |
| Low Smoke | IEC 61034-2 |
