Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

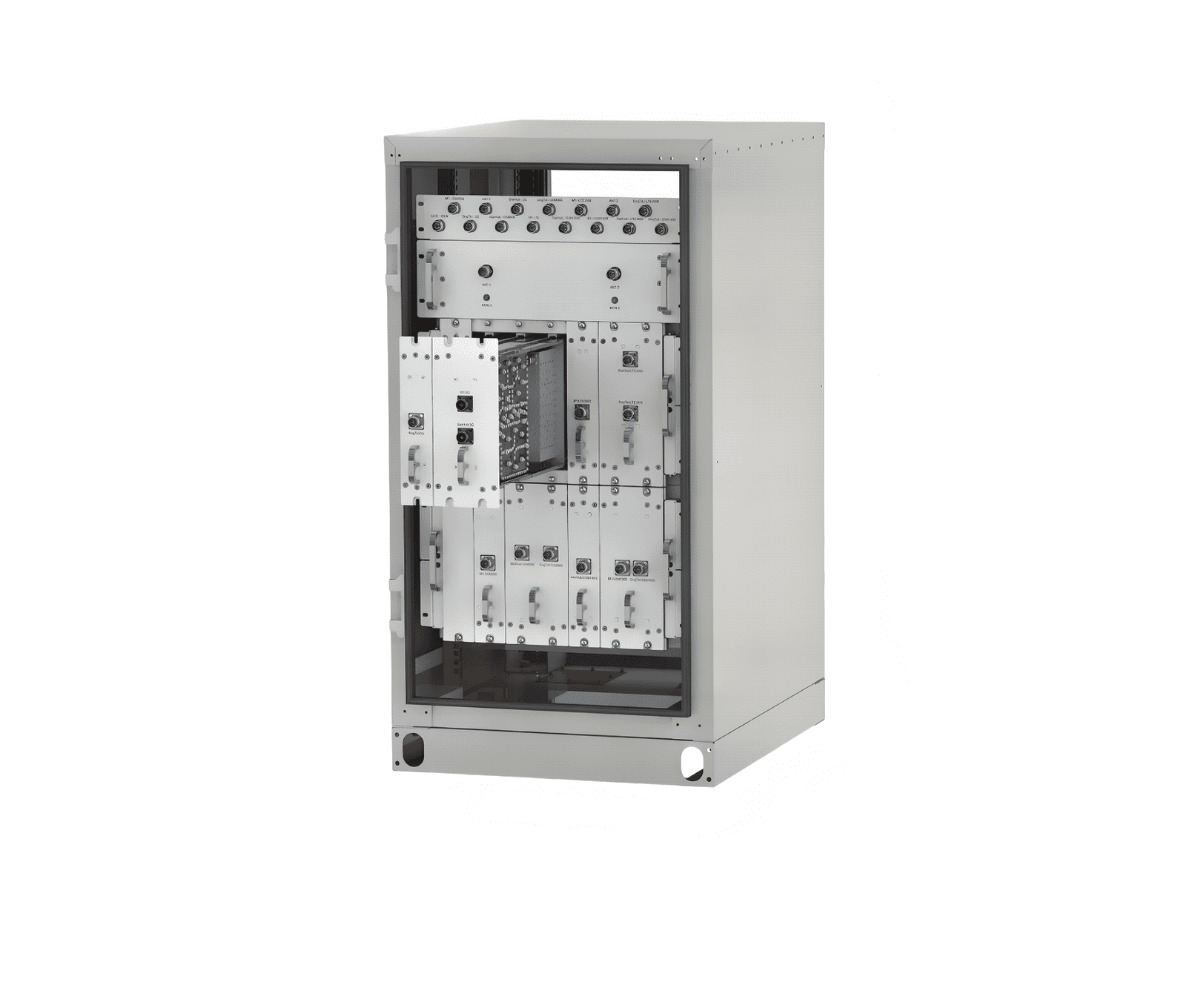

Point of Interface (POl) is a device used to merge multiple wireless communication systems (such as 2G/3G/4G/5G, Wi Fi, private networks, etc.) from different frequency bands into the same antenna feeder system. It is widely used in large indoor distributed antenna systems (DAS) such as railways, airports, sports venues, tunnels, etc., to achieve multi operator and multi standard signal coverage sharing and avoid redundant construction.
| Frequency | 900-1: 895~905/940~950MHz |
| 900-2: 905~915/950~960MHz | |
| 900-3: 890~895/935~940MHz | |
| 900-4: 885~890/930~935MHz | |
| 1800-1: 1710~1740/1805~1835MHz | |
| 1800-2: 1765~1785/1860~1880MHz | |
| 1800-3: 1740~1765/1835~1860MHz | |
| 2100-1: 1930~1955/2120~2145MHz | |
| 2100-2: 1955~1980/2145~2170MHz | |
| 2100-3: 1920~1930/2110~2120MHz | |
| 2600-1: 2500-2520/2620-2640MHz | |
| 2600-2: 2520-2540/2640-2660MHz | |
| 2600-3: 2540-2560/2660-2680MHz | |
| 2300: 2300-2340MHz | |
| Return Loss / VSWR | ≤-18 dB/1.3 |
| Insertion Loss | 3.0 dB +3.7dB (Typ.,4.0dB Max) ±0.5 |
| 3.0 dB+1.7dB (Typ.,2.2 dB Max) ±0.9 | |
| 3.0 dB+2.5dB (Typ.,2.8dB Max) ±0.3 | |
| 3.0 dB+5.7dB (Typ.,6.2 dB Max) ±0.9 | |
| Isolation | 45-50dB Typical (33dB Min) |
| 110dB Typical (100dB Min) TDD2500 to FDD2600 | |
| 6 5dB (50dB Min) 700&900&1800 to other | |
| Power Handling | 100 W per port |
| Intermodulation (3rd Order) | ≤-155dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | Indoor |
| Dimension | 485 × 1067 × 435 (mm) |
| Weight | 55 kg |
| Connectors Type | 4.3-10 female |
| Packing | 1Pcs in box |
