Low VSWR, high isolation
Low PIM, low insertion loss
Compact design for easy installation
Customized band is available

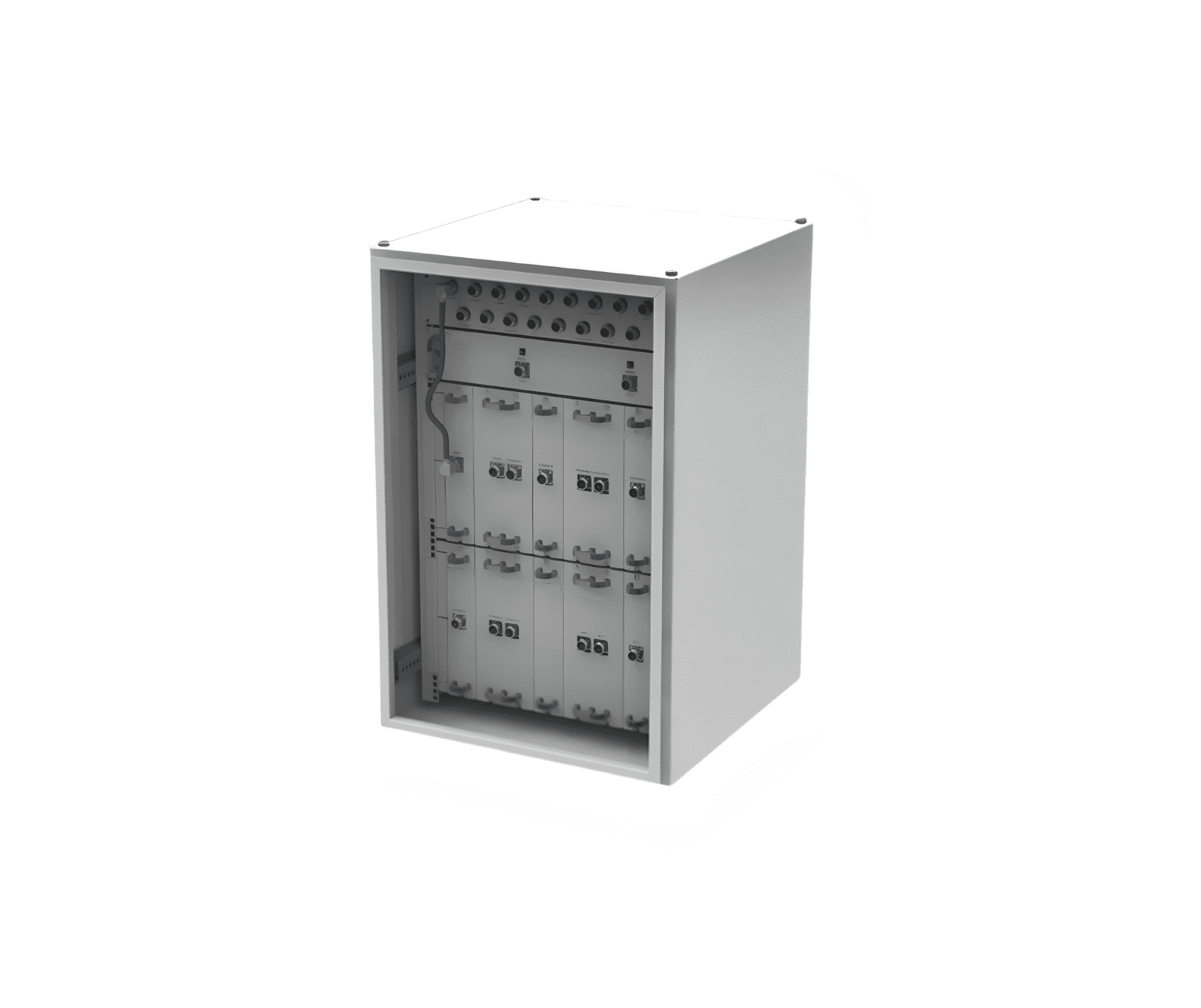

Point of Interface (POl) is a device used to merge multiple wireless communication systems (such as 2G/3G/4G/5G, Wi Fi, private networks, etc.) from different frequency bands into the same antenna feeder system. It is widely used in large indoor distributed antenna systems (DAS) such as railways, airports, sports venues, tunnels, etc., to achieve multi operator and multi standard signal coverage sharing and avoid redundant construction.
| Frequency | GSM1800: 1735-1750/1830-1845 MHz |
| LTE1800-1: 1717.5-1732.5/1812.5-1827.5 MHz | |
| LTE1800-2: 1760-1785/1855-1880 MHz | |
| LTE2100: 1920-1945/2110-2135 MHz | |
| LTE2300: 2300-2395 MHz | |
| LTE2600: 2500-2627 MHz | |
| GSM900: 880-915/925-960MHz | |
| LTE1800: 1710-1785/1805-1880 MHz | |
| GSM1800: 1710-1785/1805-1880 MHz | |
| UMTS 2100: 1945-1975/2135-2165 MHz | |
| LTE2300: 2300-2395 MHz | |
| LTE2600: 2500-2627 MHz | |
| Return Loss / VSWR | ≤-18 dB/1.3 |
| Insertion Loss | ≤8.5 dB (For 1800) |
| ≤5.5dB (For 2100) | |
| ≤5.0dB (For others) | |
| Isolation | 40dB minimum (For 1800 and 2100) |
| 28dB minimum (For 2300 and 2600) | |
| 80dB minimum | |
| Power Handling | 100 W per port |
| Intermodulation (3rd Order) | ≤-153 dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | Indoor |
| Dimension | 483 × 533 × 685 (mm) |
| Weight | 16 kg |
| Connectors Type | DIN female |
| Packing | 1Pcs in box |
