Antenna frequency: 2×(698-960) +2×(1427-2690)+ 2×(1695-2690) MHz
3dB azimuth beamwidth: 65 °
Gain: 16.4/20.5 dBi
Electrical downtilt: 2-12 °
Connector: 12 x 4.3-10 female
Dimension: 2008 x 466 x 209 mm
Status of product: general available
PROTREEM (PROSE Extra Energy Efficiency Mark-up) Platform
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 2×(698-960) +2×(1427-2690)+ 2×(1695-2690) MHz |
| Gain | 16.4/20.5 dBi |
| 3dB Azimuth Beamwidth | 65 ° |
| Electrical Downtilt | 2-12 ° |
| 1st Upper Sidelobe Suppression | > 15 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 |
| Inter - Cluster Isolation | > 25 |
| 3rd PIM(2 x 43 dBm) | < -153 dBc |
| Impedance | 50 Ω |

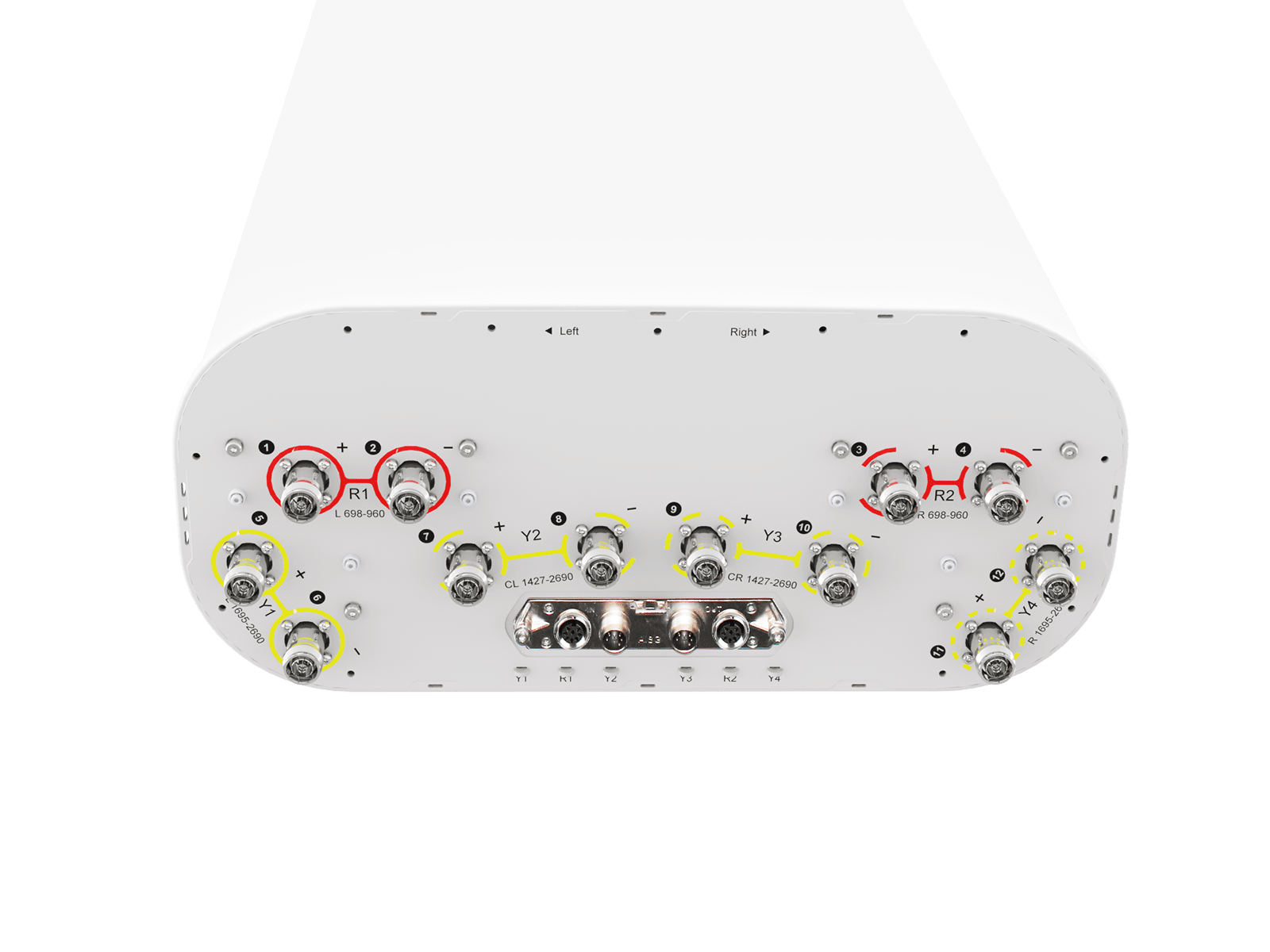

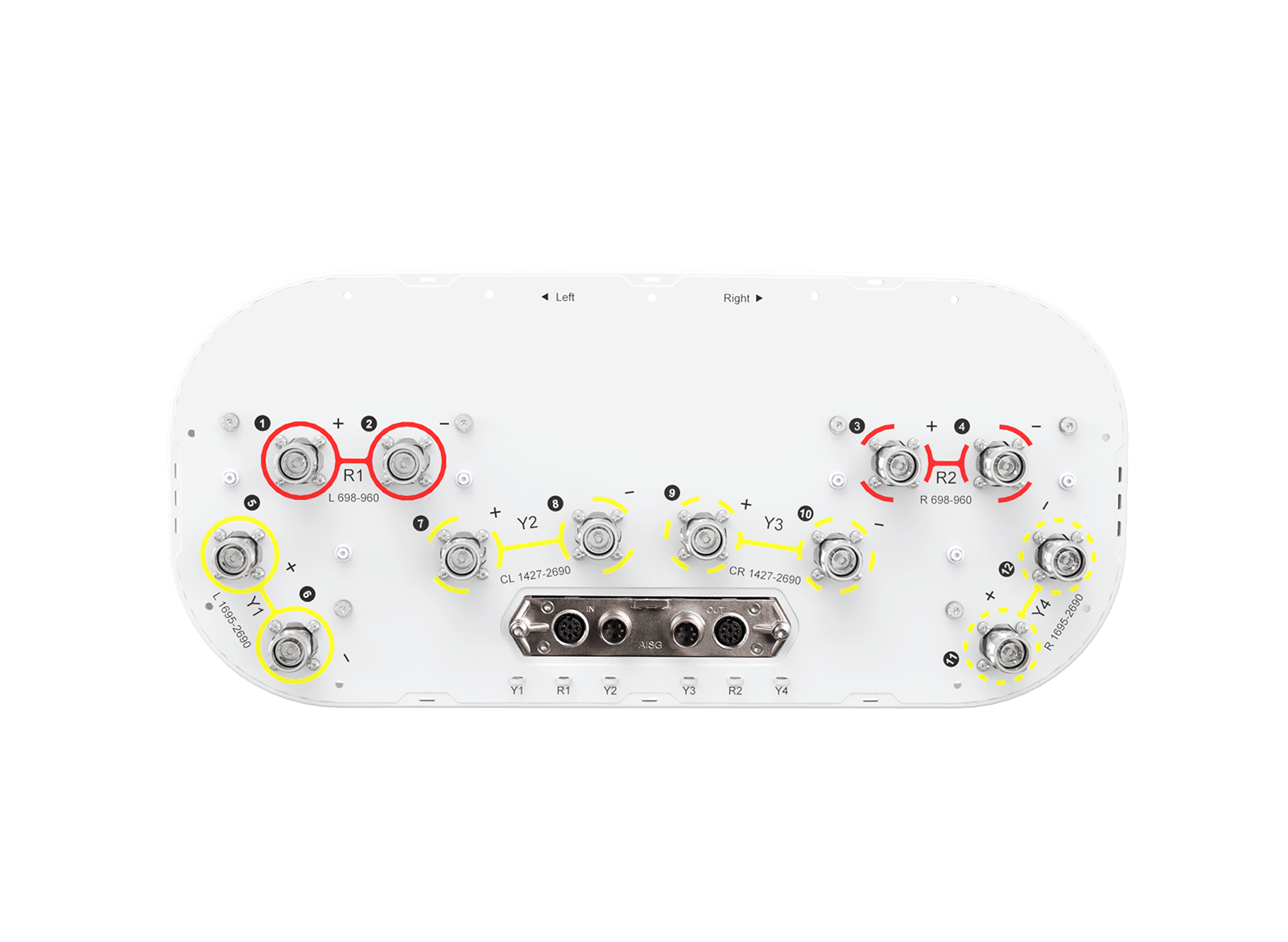

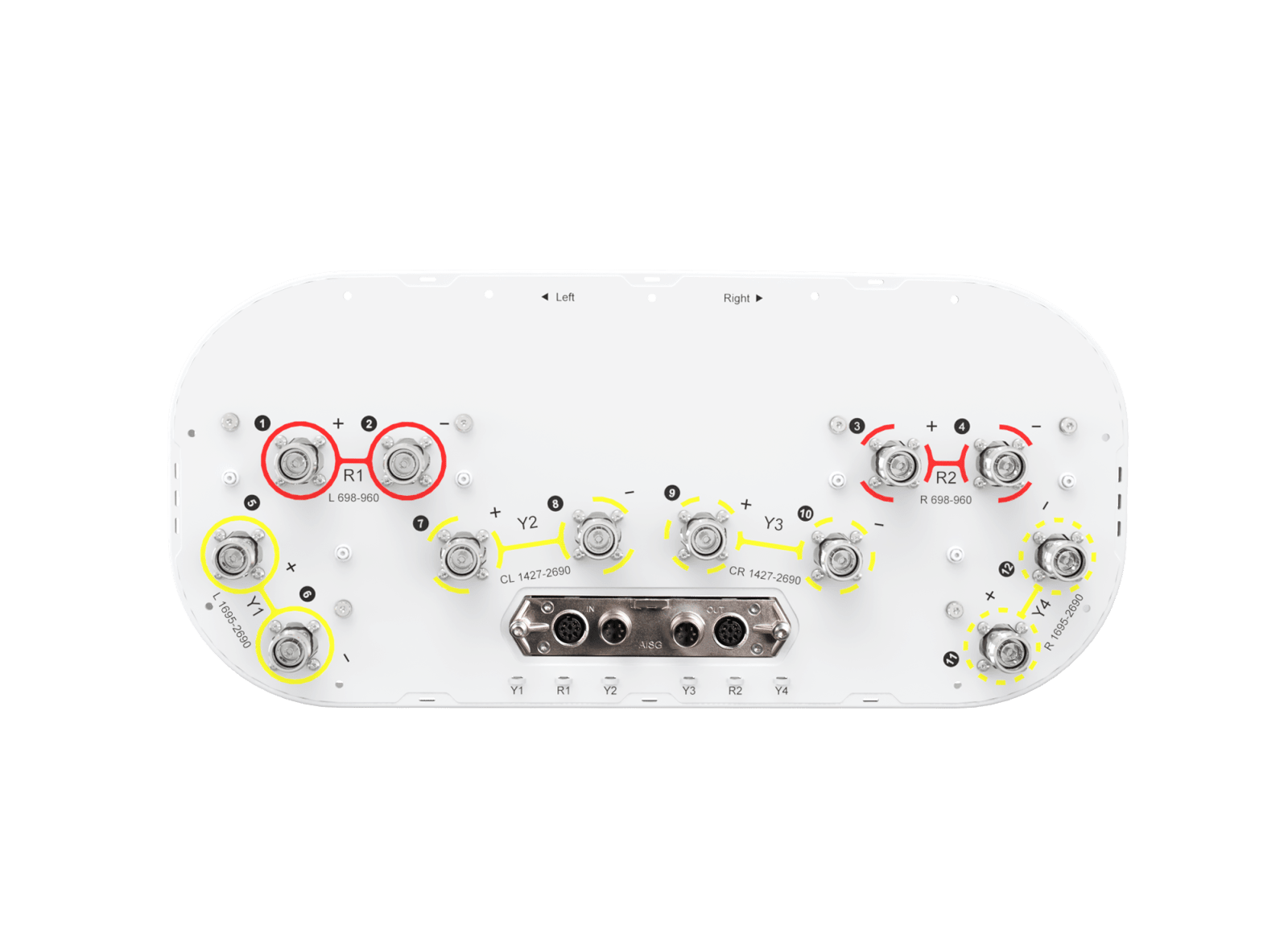

| Connector Type | 12 x 4.3-10 female |
| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | MRPP |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 2008 x 466 x 209 mm | 79.1 x 18.3 x 8.2 in |
| Packing Size (H x W x D) | 2145 x 555 x 355 mm | 84.4 x 21.9 x 14.0 in |
| Survival Wind Speed | 241 km/h | 150 mph |
| Wind Load @150 km/h (Max) | 751 N | 169 lbf |
| Mast Diameter Supported | 50 - 110 mm | 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C | -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 698-960 | 1427-2690 | 1695-2690 |
![]() |
![]() |
![]() |

| Item | Model | Weight | Mechanical Tilt Range (°) |
| Mounting Kit | RAPMK-01 | 3.8 kg / 8.4 lb | 0-10 |
