19" Standard Rack, Front-Access Maintenance

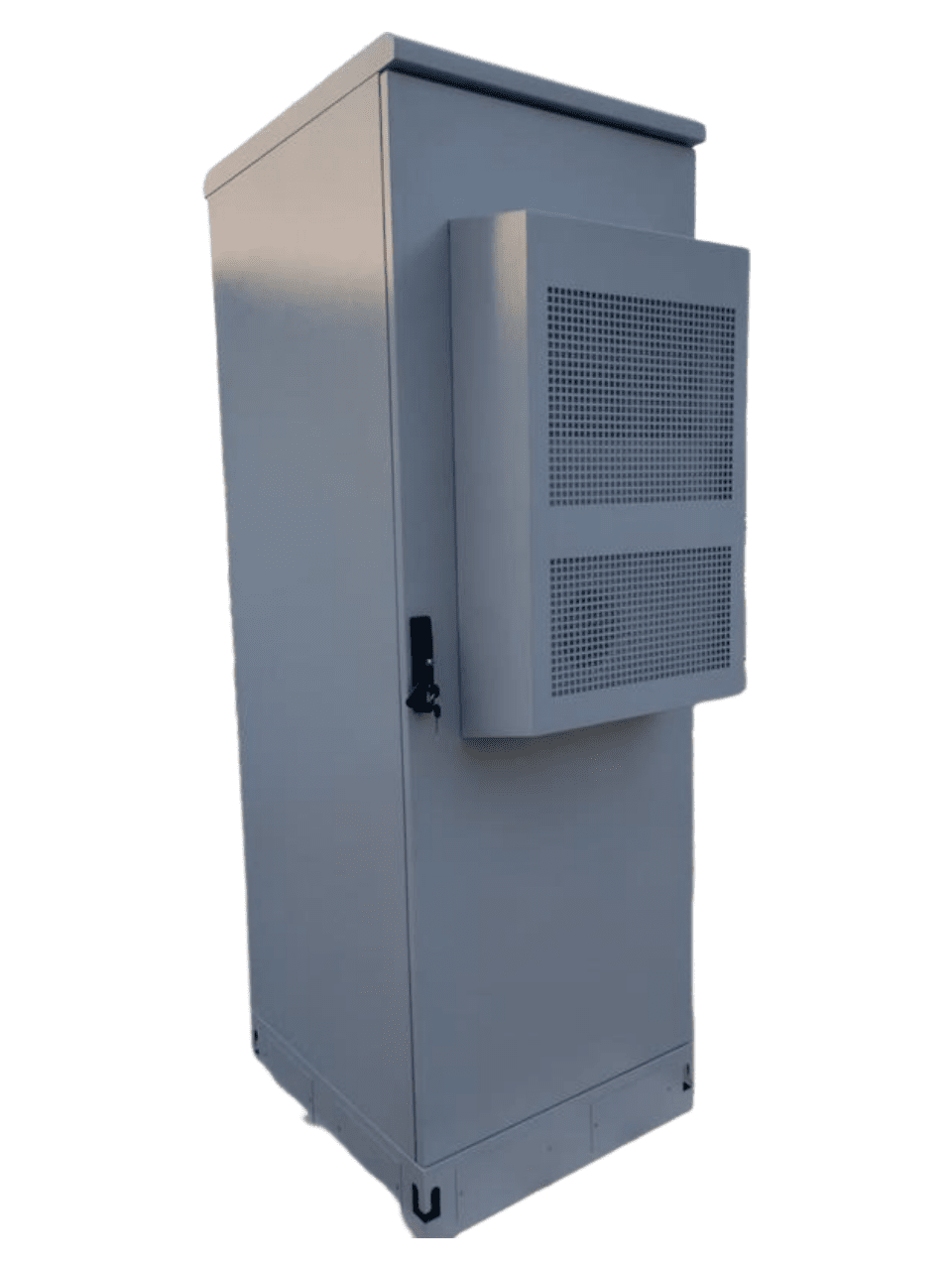

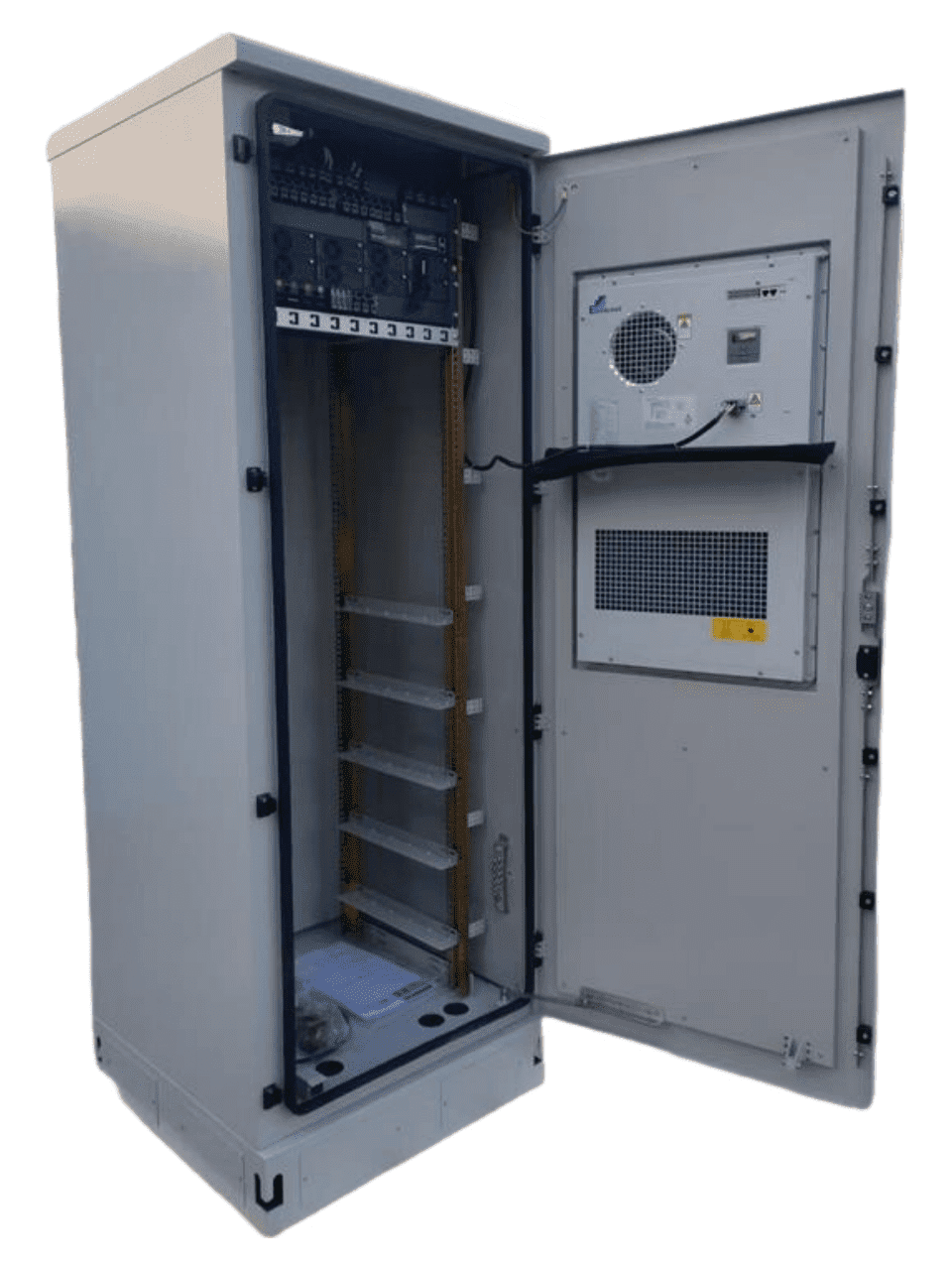

Front-Door Integrated AC, Rapid Cooling
Independent Airflow Design, No Heat Recirculation
IP-Rated Outdoor Enclosure, All-Weather Ready
Modular Rectifiers (Hot-Swappable), N+1 Redundancy
Remote Monitoring & Alarms, Parameters Visible & Controllable

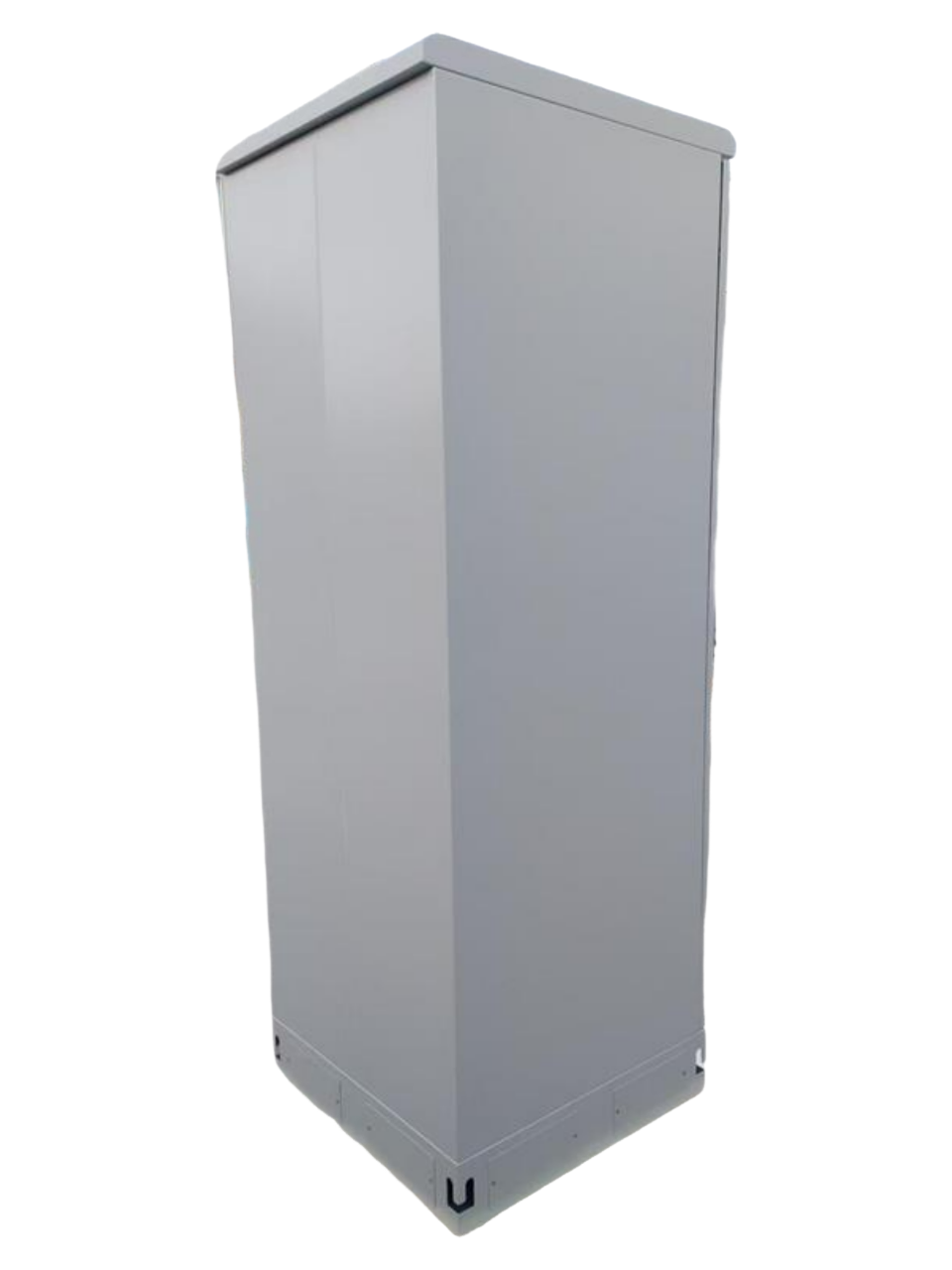

This power cabinet features IP55 outdoor protection, with excellent resistance to wind, rain, sun exposure, dust, and mechanical shock.
Inside, it integrates high-efficiency rectifier modules from leading brands, premium lithium battery packs, and comprehensive surge / over-voltage / over-current protection to deliver stable power to equipment. An intelligent monitoring system provides real-time telemetry and alarms, enabling O&M teams to respond quickly and safeguard equipment and site safety.
We offer one-stop customization to meet real-world deployment needs, covering cooling systems, power shelves, lithium battery packs, and environmental monitoring. Optional DC PDU, AC PDU, inverters, and cameras can be provided for a complete, ready-to-deploy solution.
| Item | Part | Description | Unit |
| 1 | Outdoor cabinet | 700x700x2000 mm, with air conditioner | 1 set |
| 2 | Communication power supply | 48 V, 24 kW | 1 set |
| Capacity | 24 KW (450 A @ 48 V) |
| AC Input | 346~433 VAC / 3W+N+PE |
| Input Breakers | 63 A / 3P+N terminal |
| Input Frequency | 45~65 Hz, rated value: 50 Hz / 60 Hz |
| Input AC SPD | 20 kA / 40 kA, 8/20 μs |

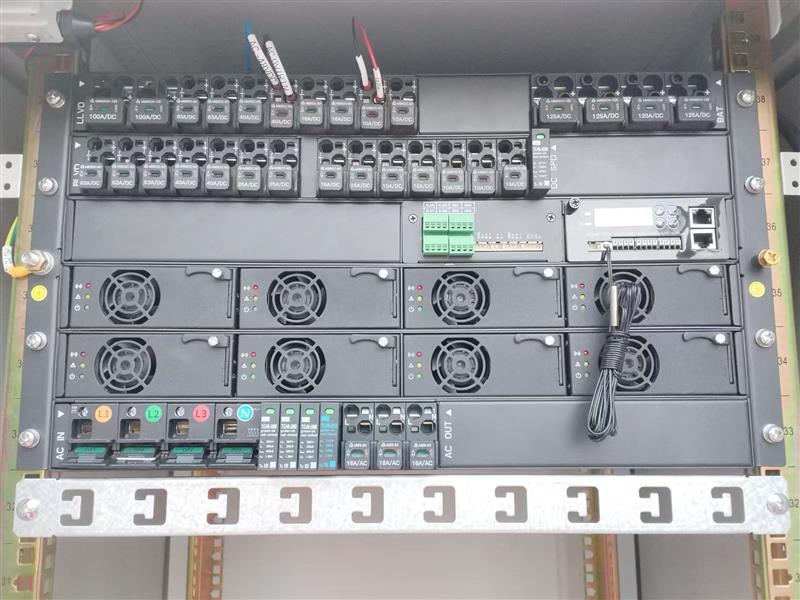

| PSU Rectifier | 8 pcs x 3000 W |
| PSU Controller | With controller for power unit |
| BLVD | 3* 6 A/1P, 2* 10 A/1P, 2* 16 A/1P, 2* 25 A/1P, 2* 40 A/1P, 3* 63 A/1P |
| LLVD | 2* 10 A/1P, 2* 16 A/1P, 2* 40 A/1P, 2* 63 A/1P, 2* 100 A/1P |
| DC Output SPD | 10 kA, 8/20 μs |
| Battery MCBs | 4 x 125 A/1P |
| Dimension (WxDxH) | 700x700x2000 mm |
| Material | SGCC |
| Finish | Powder coating RAL7035 |
| Equipment Space | 38U (32U@24 KW Power core) |
| Lifting | 4 hanging slots |
| Cable Entry | Bottom in and out |
| Lock | Three-point Anti-theft lock |
|
Cooling System
|
DC air conditioner Model: Envicool DC10CDNC1D Cooling capacity: 1250 W @ L35/L35 Rated power Consumption: 345 W @ L35/L35 Rated current:7.1 A @ L35/L35 Inner circulation air flow rate: 380 m3/h |
| Ambient Temperature | -40 to +45 °C |
| Transport & Storage Temp | -40 to +70 °C |
| Operating Humidity | 5%-95% (non-condensing) |
| Altitude | 0~2000 m |
| IP Grade | IP55 |
| RoHS | Compliant |
