B40
4T4R
40W
eCPRI

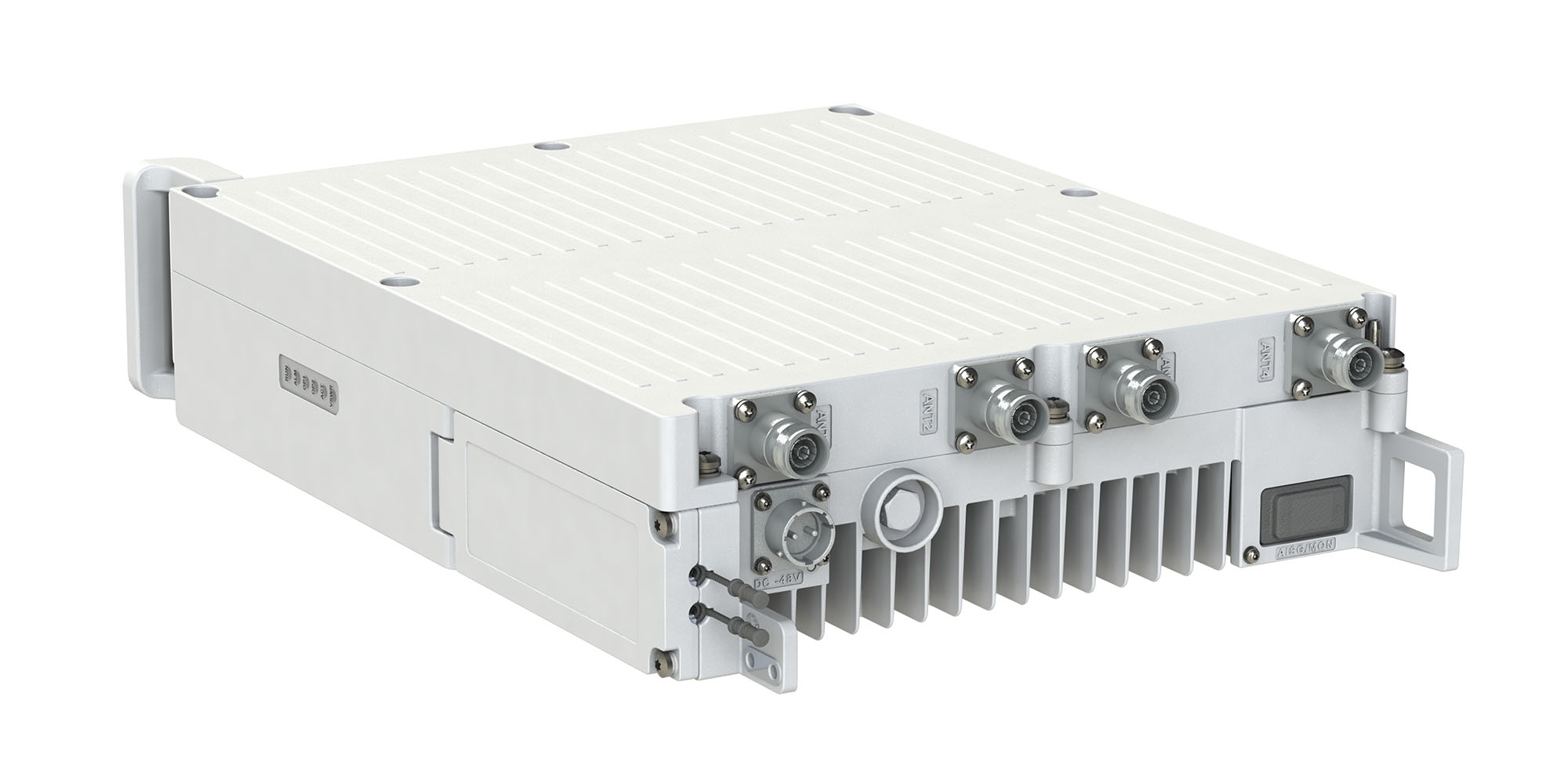

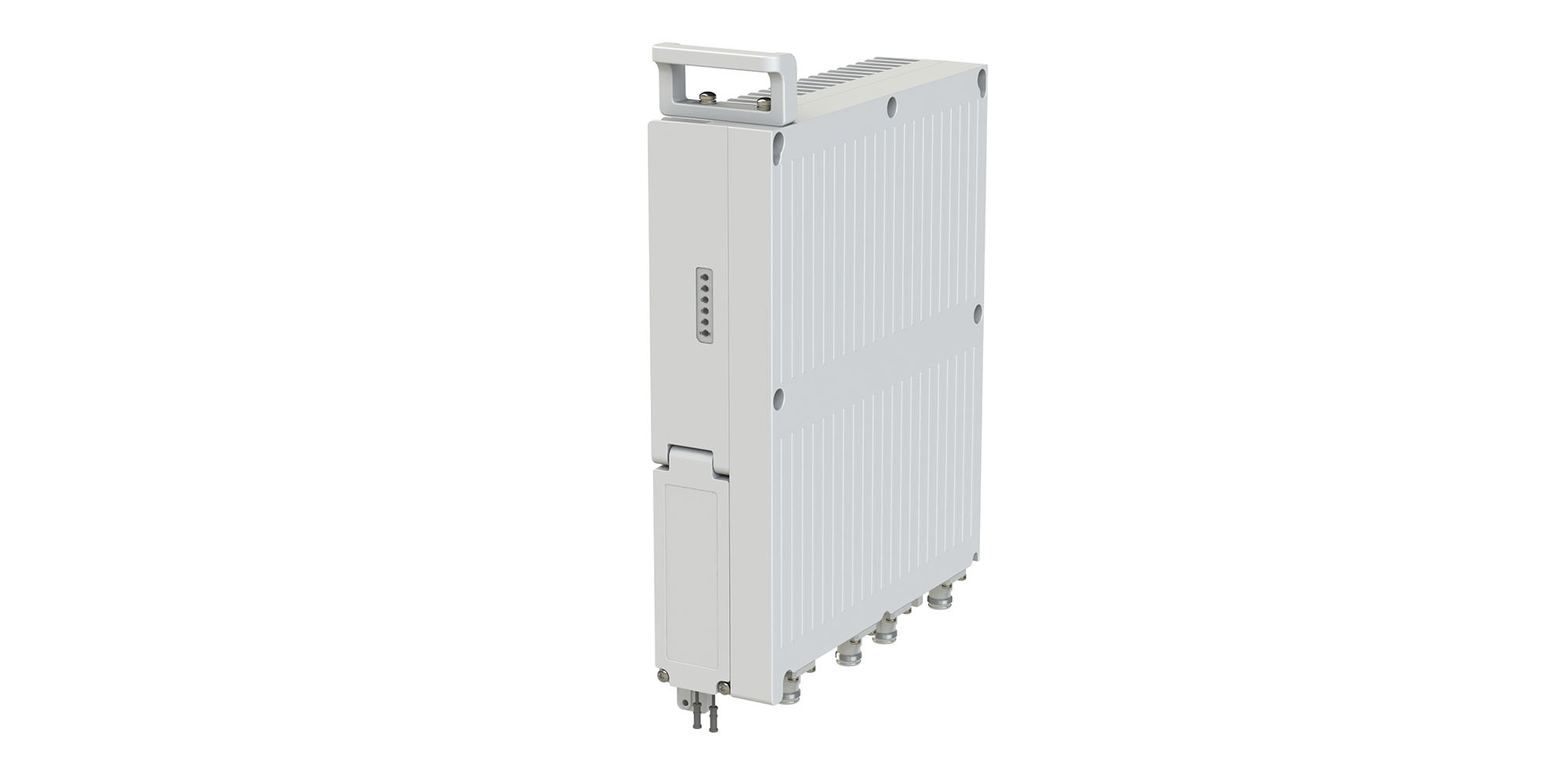

The ORU-46-Q40-LN-64F-D-01 is an outdoor remote radio unit. It is the radio frequency (RF) part of a distributed base station and can be located near antennas.
Adopting an innovative design, ORU-46-Q40-LN-64F-D-01 is able to work in 4 TX and 4 RX mode and therefore supports higher output power and larger carrier capacity.
| Frequency |
2300 - 2400 MHz |
| Instantaneous Bandwidth | 100 MHz |
| Operation Bandwidth | 40 MHz |
| Mode | LTE & NR |
| RF Output Power | 4x40W |
| Power Supply | -48V DC(-36V~-57V) |
| ORAN Split Option | Split option 7-2x |
| Data Rate of Front Haul | Max. 10.3125Gbps |
| Noise Figure(typical) | < 3dB |
| 3GPP Compliant | TS38.104, TS38.141 |
| Operating Temperature | -40°C to +55°C (without solar radiation) ,-40°C to +50°C (with solar radiation) |
| Relative Humidity | 5% RH to 100% RH |
| Absolute Humidity | 1 g/m3 to 30 g/m3 |
| Atmospheric Pressure | 70 kPa to 106 kPa |
| Shockproof Protection | NEBS GR63 zone4 |
| Ingress Protection (IP) Rating | IP65 |
| Size | 400x330x100(mm) |
| Volume | 13.2L |
| Weight | 15kg |
| RF Connectors | 4x4.3-10 Female |
