To adapt to different application scenarios, PROSE provides many types of network cabinet, to meet the different needs of customers in cost, use space, portability and other aspects.
Available in a variety of cabinet sizes and components, flexible configurations can be adapted to different application requirements.
Detachable frames combined structural design, light weight, strong structure, flexibility.
Tool-free installation of the top cover, multiple cable inlets, convenient for many cables in and out, designed with a top panel, effectively prevent foreign objects and dust from entering the cabinet.
The standard two-cable tray is configured at the rear of the cabinet to facilitate cable arrangement and installation of equipment such as PDUs.
Built-in side doors, tool-free installation and removal, optional lock anti-disassembly design.
Advanced revolving door handles, full range of all front and rear lock keys can be opened.
The cabinet is equipped with grounding copper nails in many places to facilitate the grounding of the equipment; Complete accessories, with snap nut fixing tools.
All accessories are complete, and tools are provided to secure the buckle nuts.
Optional mounting base to meet the requirements of cabinet fixing, bottom cable crossing, bottom air supply, rat resistance and so on.
The surface treatment is decreasing, pickling, rust prevention and phosphating, pure water cleaning.
| Item | Network Cabinet |
| Static Load | 500kg static load rating |
| Color | Black |
| Standard | Compliance with EIA-310-E, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92 standard; Compatible with ETSI standard, UL60950, IEC 60297-2, RoHS, REACH |
| Mounting rails | 1.5mm SPCC,4pcs |
| Frame | 0.8mm SPCC |
| Top panels | 0.8mm SPCC |
| Bottom Panel | 0.8mm SPCC |
| Fan | None,2 or 4 or 6pcs optional, AC220V |
| Front Door | Glass door, Optional with Other Types of Doors |
| Rear Door | Single Steel door, Optional with Other Types of Doors |
| Side Door | 2pcs, tool-free installation, with the option to add a round lock |
| Cable Entry | Brush Panel on top & bottom cable Entry |
| Accessories | Philip screws and Nuts 50 set, cascade components 1set |
| Castors | 4 Pcs 2.0-inch castor with 2 lock and adjustable feet |
| Protection | IP20 |
| Surface Finish | Powder Coated |
.jpg)

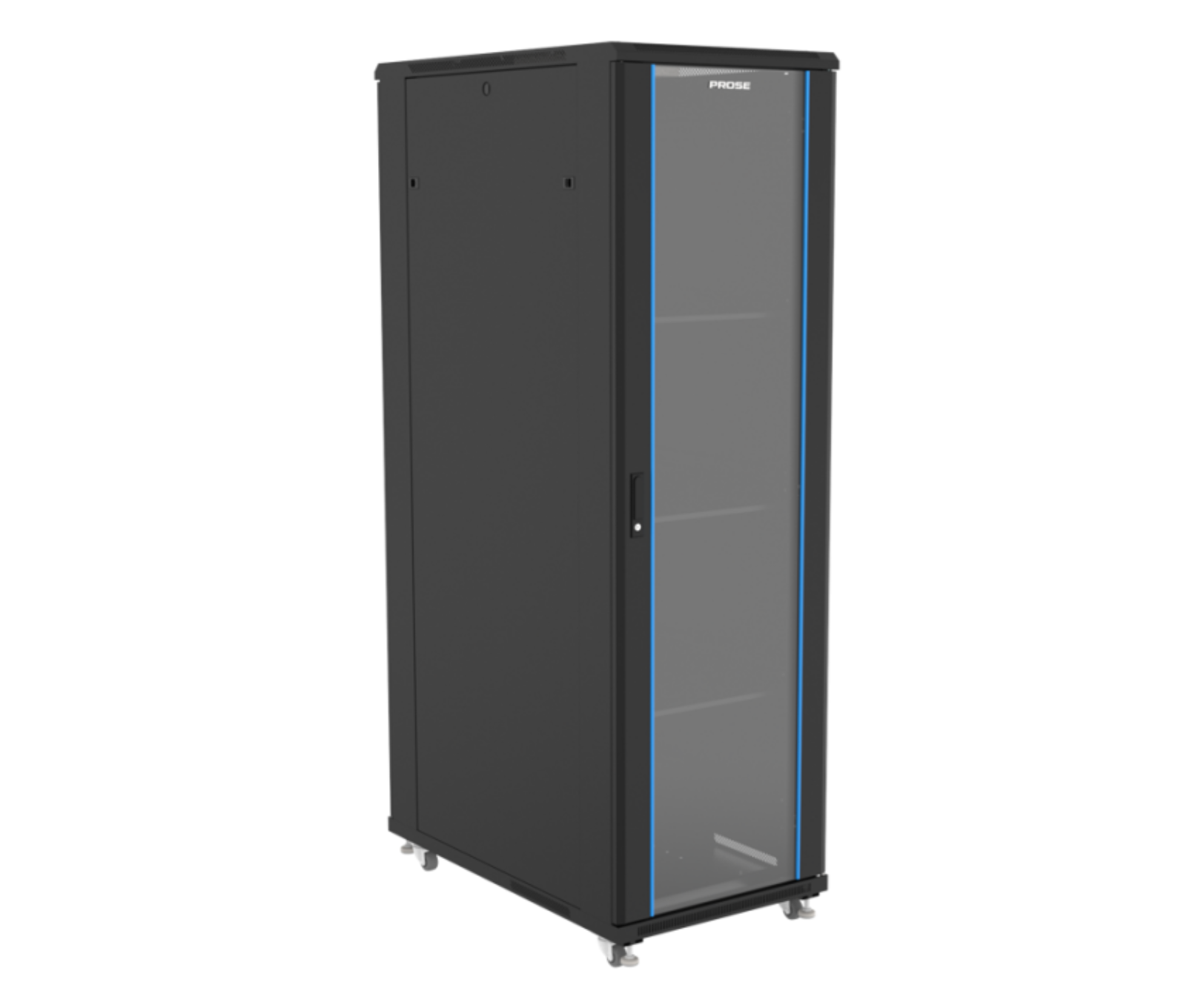

Network cabinet
.jpg)
SCC120 Series Server Cabinet

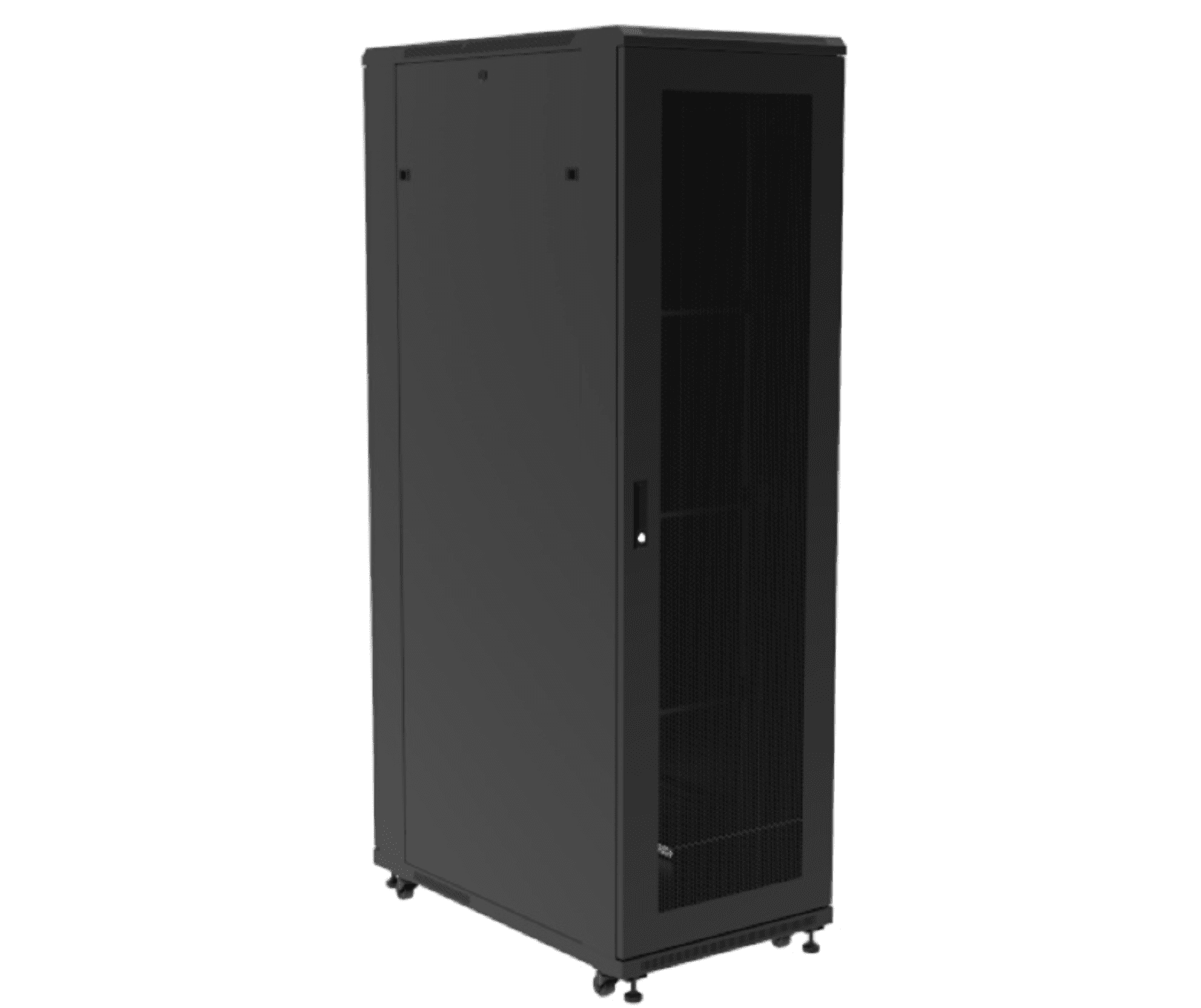

Network cabinet
.jpg)
SCC150 Series Server Cabinet
