Lower investment by 25%
Fast installation only 2H
FC AC energy saving 30%
PUE less than 1.26
System emergency response protection
Biometrics authentication
Cascading available for rack
Saving room space 50%
Quiet operation less-than 55dB
DCIM 24H cloud O&M

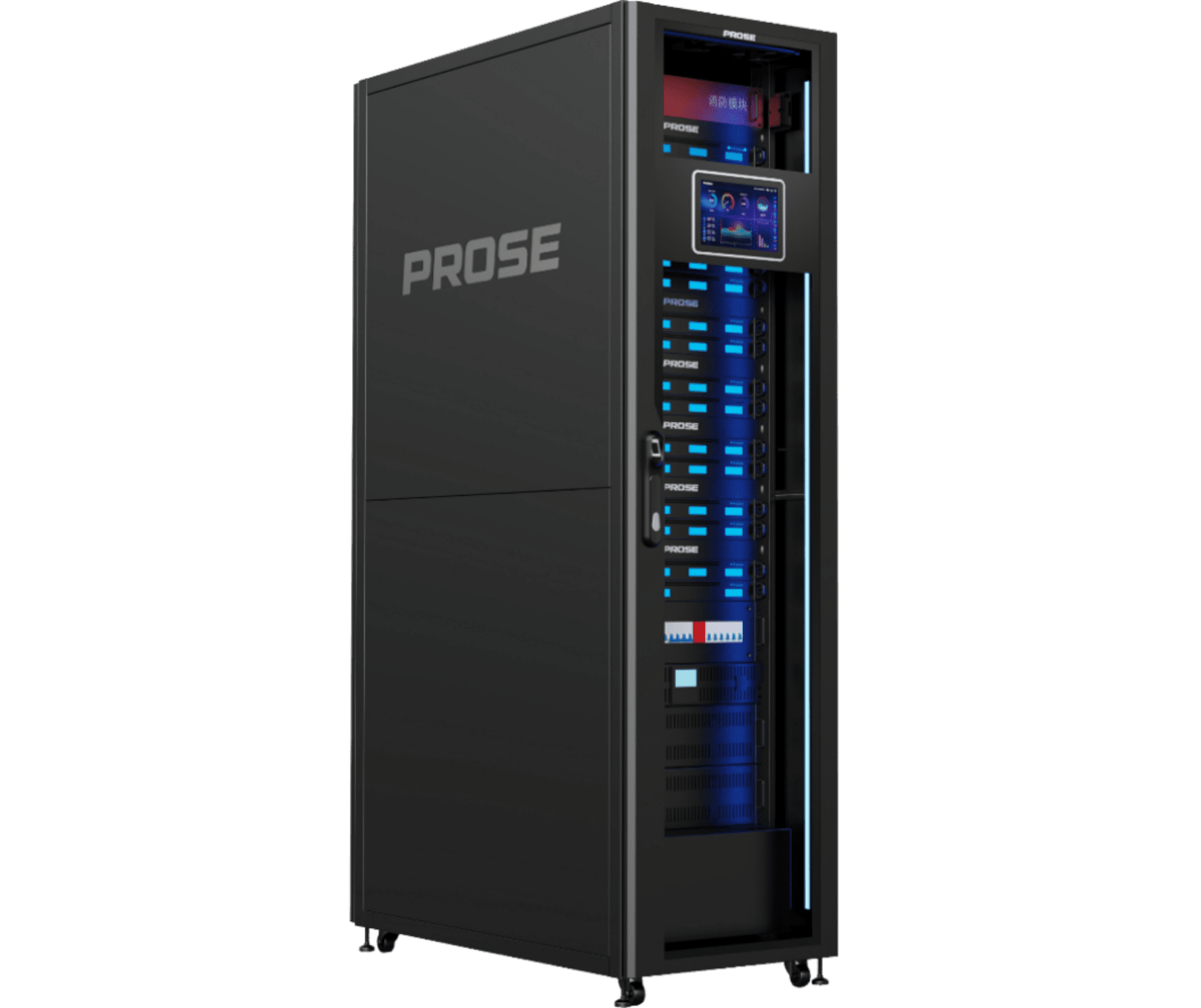

Traditional miniaturized data centers face several challenges, including high maintenance costs, prolonged construction cycles, and the inability to monitor operating status in real time. To address these pain points, PROSE has developed the innovative Smart Micro Data Center (MDC).
Designed to meet the deployment demands of future edge computing applications, the Smart Micro Data Center adopts a modular design concept. It offers significant cost advantages, allowing customers to complete rapid installation and deployment for immediate use.
This all-in-one MDC integrates cabinets, power distribution, cooling, and structured cabling systems. To ensure uninterrupted power and prevent data loss, the system supports remote access via TCP/IP and cloud applications, enabling real-time status monitoring. Additionally, the integrated temperature and humidity monitoring alongside the air-cooling system ensures an optimal operating environment, while advanced authentication options—such as facial and fingerprint recognition—provide robust physical security for your data.
| Item | Specification |
| Rack Height (Customizable) | 42U |
| Cabinet Dimensions, W × D × H (mm) | 600 (W) x 1200 (D) x 2050 (H) |
| Number of Cabinets | 1 |
| UPS Capacity (kVA) | 3 |
| Rated IT Load (kW) | 2.4 |
| UPS Input Voltage | 220/230 VAC, single-phase |
| UPS Rack Space | 2U |
| Battery Voltage | 2 × 96 VDC |
| Battery Backup | 15 minutes; one 3U battery pack containing 16 × 9 Ah VRLA batteries |
| PDB Rated Input Voltage | 220/230 VAC |
| PDB Rated Input Current | 50 A |
| Air Conditioner Cooling Capacity (kW) | One 3.5 kW nominal unit; 3.6 kW specified cooling capacity |
| Power and Environmental Monitoring System | One master environmental monitoring system with a touch-panel LCD dashboard, one smoke sensor, and one temperature and humidity sensor |
| PDU | One PDU with 12 IEC 320 C13 outlets, rated at 16 A and 220 VAC, with a maximum power of 5 kW; intelligent monitoring is optional |
| Fire Suppression System | The fire suppression system is optional; this model’s listed configuration includes one automatic fire-suppression unit |
| Refrigerant | R410A |
| Color | Black or gray |
| Cabinet Construction | Welded frame with an integrated sealed-cabinet design |
| Compliance Standards | ANSI/EIA RS-310-D, IEC 297-2, DIN 41491, DIN 41494, and GB/T 3047.2-92 |
| IP Rating | IP5X |
| Display Panel | 10.1” Touch Panel LCD |
| Display Languages | English / Chinese |
| LED Lighting | Bi-color (red and blue) |
| Front Door | Toughened-glass door with a mechanical or fingerprint lock; supports face detection |
| Unlocking Methods | Remote control, authorized card, password, fingerprint, or mechanical key |
| Rear Door | Sheet-metal door |
| Static Load Capacity | Up to 2,200 kg |
| Safety Standard | RoHS |

42U, Seven-Cabinet Solution, 1xUPS 30 kVA, 4xAC 6.5 kW
_495x300.jpg)
42U,Two-Cabinet Solution, UPS 1x10 kVA, AC 1x6.5 kW

27U, Single-Cabinet Solution, UPS 1x3 kVA, AC 1x3.5 kW
_495x300.jpg)
42U, Four-Cabinet Solution, UPS 1x25 kVA, AC 2x12.5 kW
