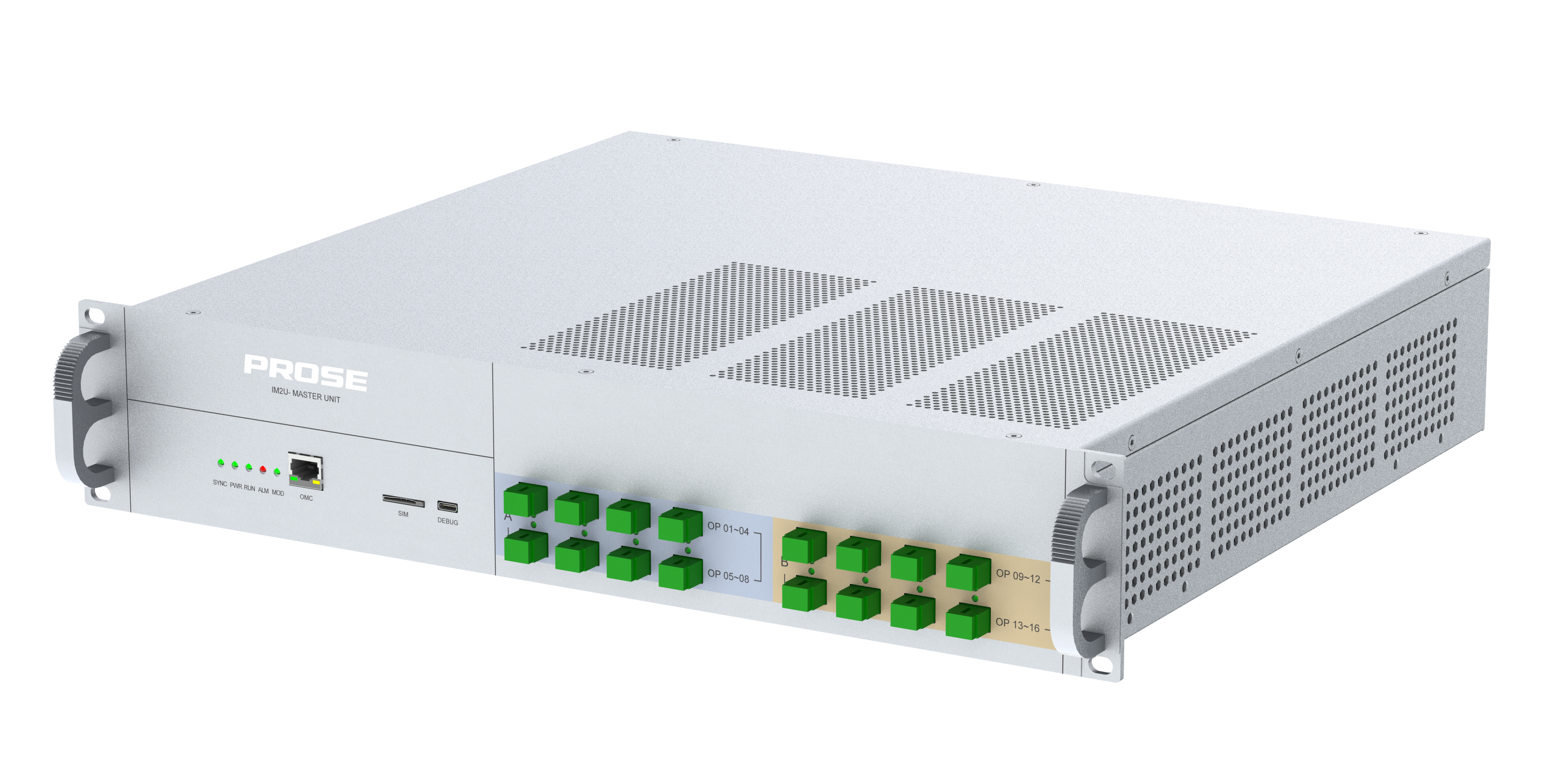

Support 2x2 MIMO for band 1/3/5/8/28/40/n78
Support 2G, 3G, 4G and 5G technologies
Support up to 8 remotes from one single IM2U
Management via OMT or NMS management software
700/850/900/1800/2100/2300/3500MHz, 14 in 32 out, 5G 2T2R, cabinet mounted
| Uplink | Downlink | ||
| Frequency Range | Band 1 (2x2 MIMO) | 1920 - 1980 MHz | 2110 - 2170 MHz |
| Band 3 (2x2 MIMO) | 1710 - 1785 MHz | 1805 - 1880 MHz | |
| Band 5 (2x2 MIMO) |
|
869 - 890 MHz | |
| Band 8 (2x2 MIMO) | 890 - 915 MHz | 935 - 960 MHz | |
| Band 28 (2x2 MIMO) | 703 - 748 MHz | 758 - 803 MHz | |
| Band 40 (2x2 MIMO) | 2300 - 2400 MHz | 2300 - 2400 MHz | |
| n78 (2x2 MIMO) | 3300 - 3800 MHz | 3300 - 3800 MHz | |
| Gain | -5 ± 2 dB | -5 ± 2 dB | |
| RF Output Power | ≤ -10 dBm (RF) | --- | |
| Operating Temperature Range | -10°C to +45°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
10% - 95% |
|
Ingress Protection |
IP40 for indooor |
| Monitoring and Control | LAN-RJ45 (local) |
| 3G&4G wireless modem/Ethernet (remote) | |
| Cooling | Nature cooling |
| Optical Connectors | 8 sets x SC/APC | |
| RF Connectors |
TXRX: 14 x QMA-Female (7 ports for band 1/3/5/8/28/40/n78 SISO and 7 ports for band 1/3/5/8/28/40/n78 MIMO) |
|
| Mounting | 19' Rack Mounting | |
