Support 2x2 MIMO for band 41/n41 and 4x4 MIMO for n78
Support 3G, 4G, 5G technologies
Hybrid DC/Fiber Feed for plug and play installation
Suitable for large-scale indoor installations / Neutral Host / Multi-Operator applications
Features remote-control and monitoring
Integrated multi-band combiner to support external antenna

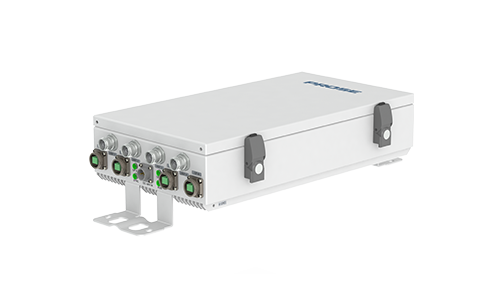

2300/3500MHz, 5GNR 4T4R(3400-3800) , DC-48V (Remote), wall/ceiling/polo mounted, 4.3-10 connectors, outdoor, external antenna
| Uplink | Downlink | ||
| Frequency Range | Band 41/n41 (2x2 MIMO) | 2496 - 2690 MHz | 2496 - 2690 MHz |
| n78 (4x4 MIMO) | 3400 - 3800 MHz | 3400 - 3800 MHz | |
| Gain | Band 41 | 30± 2 dB | 30 ± 2 dB |
| n78 | 33 ± 2 dB | 33 ± 2 dB | |
| RF Output Power | Band 41 | --- | 23 ± 1 dBm (RF per band per port) |
| n78 | --- | 26 ± 1 dBm (RF per band per port) | |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 98% |
|
Ingress Protection |
IP65 |
| Monitoring and Control | Remote control via IM2U/PBMU |
| Optical connector | 4 x SC/APC (4x4 MIMO port) | |
| RF Connectors | 4 x 4.3-10 (ANT1: Band 41(n41)/n78, ANT2: Band 41(n41)/n78, ANT3: n78, ANT4: n78) | |
| Installation | Celling, wall or pole mounted | |
