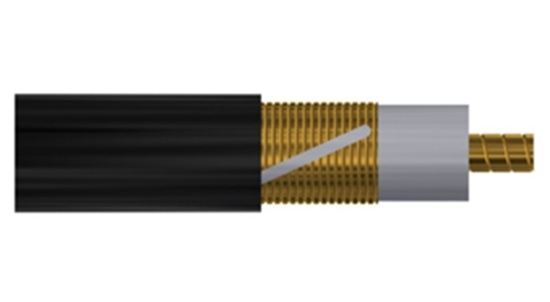

1-1/4" Foam Insulation Leaky Cable
Slotted copper foil outer conductor
Black flame retardant polyolefin jacket
Recommended operating frequency: 75~1000 MHz
Indoor application, flame retardant, low smoke, halogen free
PROSE leaky cable features low loss, stable radiation and strong anti-interference performance, effectively ensuring reliable wireless signal transmission.
Widely used in tunnels, subways, underground spaces and blind coverage areas in residential areas, it can provide continuous and uniform wireless signal coverage for mobile communication, emergency communication and broadcast transmission systems.
| Inner Conductor Material | Helical Copper Tube | |
| Dielectric Material | Foam PE | |
| Outer Conductor Material | Copper foil | |
| Jacket Material | Flame retardant polyolefin, Black, Halogen free | |
| Nominal Size | 1-1/4" | |
| Inner Conductor OD. | Ø 12.8 mm | |
| Dielectric OD. | Ø 32.4 mm | |
| Outer Conductor OD. | Ø 32.8 mm | |
| Jacket OD. | Ø 36.8 mm | |
| Flame Retardant Property | IEC 60332-1-2, IEC 60754-1/-2, IEC 61034-2 | |
| Impedance | 50±2 Ω | |
| Capacitance | 75 pF/m | |
| Insulation Resistance | ≥5000 MΩ·km | |
| Insulation Voltage | 10000 V | |
| Jacket Spark Test Voltage | 10000 V | |
| Relative Velocity of Propagation | 89 % | |
| Peak Power Rating | 200 kW | |
| Operating Frequency Band | 5MHz to 1000 MHz | |
| Optimum Operating Frequency Band | 300 - 960 MHz | |
| Stop Band | 240 - 270MHz & 480 - 540MHz & 720 - 800MHz | |
| VSWR | ≤1.3 @75MHz to 150MHz | |
| ≤1.3 @300MHz to 480MHz | ||
| ≤1.3 @580MHz to 700MHz | ||
| ≤1.3 @800MHz to 960MHz | ||
| Installation Temperature | -40°C to +80°C | |
| Operating Temperature | -55°C to +85°C | |
| Storage Temperature | -55°C to +85°C | |
| RoHS | Compliance | |
| Polarization | 5 - 150MHz | Radial | |
| 300 - 960MHz | Vertical | ||
|
Minimum Bend Radius
|
Single Bend
|
350 mm |
|
Multiple Bend
|
600 mm | |
|
Bending Moment
|
15.5 N·m | |
|
Minimum Distance to Wall
|
50 mm
|
|
|
Recommended Hanger Spacing
|
0.8 m to 1.2 m
|
|
|
Tensile Strength
|
2500 N | |
| Attenuation Test Method | IEC 61196-4 | |
| Attenuation Tolerance | ±5 % | |
| Attenuation Ambient Temperature | 20 °C | |
| Average Power, Ambient Temperature | 40 °C | |
| Average Power, Inner Conductor Temperature | 100 °C | |
| Coupling Loss Test Method | IEC 61196-4 | |
| Coupling Loss Tolerance | ±5 dB | |
|
Frequency (MHz)
|
Attenuation (dB/100m)
|
Coupling Loss (2m) 50% (dB)
|
Coupling Loss (2m) 95% (dB)
|
|
75
|
0.82
|
60
|
72
|
|
100
|
0.94
|
60
|
70
|
|
150
|
1.21
|
62
|
74
|
|
350
|
1.94
|
67
|
72
|
|
400
|
2.04
|
66
|
71
|
|
430
|
2.14
|
67
|
72
|
|
450
|
2.19
|
66
|
71
|
|
470
|
2.24
|
67
|
71
|
|
700
|
3.03
|
60
|
68
|
|
800
|
3.24
|
56
|
62
|
|
900
|
3.61
|
54
|
60
|
|
960
|
3.87
|
56
|
60
|
|
1000
|
4.04
|
58
|
62
|
