Supports connection and management of up to 24 scanners.
Collects and monitors the working status, port information, and physical location of each distribution frame port.
Analyzes and uploads port data to the management software in real time.
Equipped with a standard Ethernet interface for seamless network integration.
Uses standard 8-core twisted-pair cables (RJ45), eliminating the need for proprietary or special-purpose cabling.

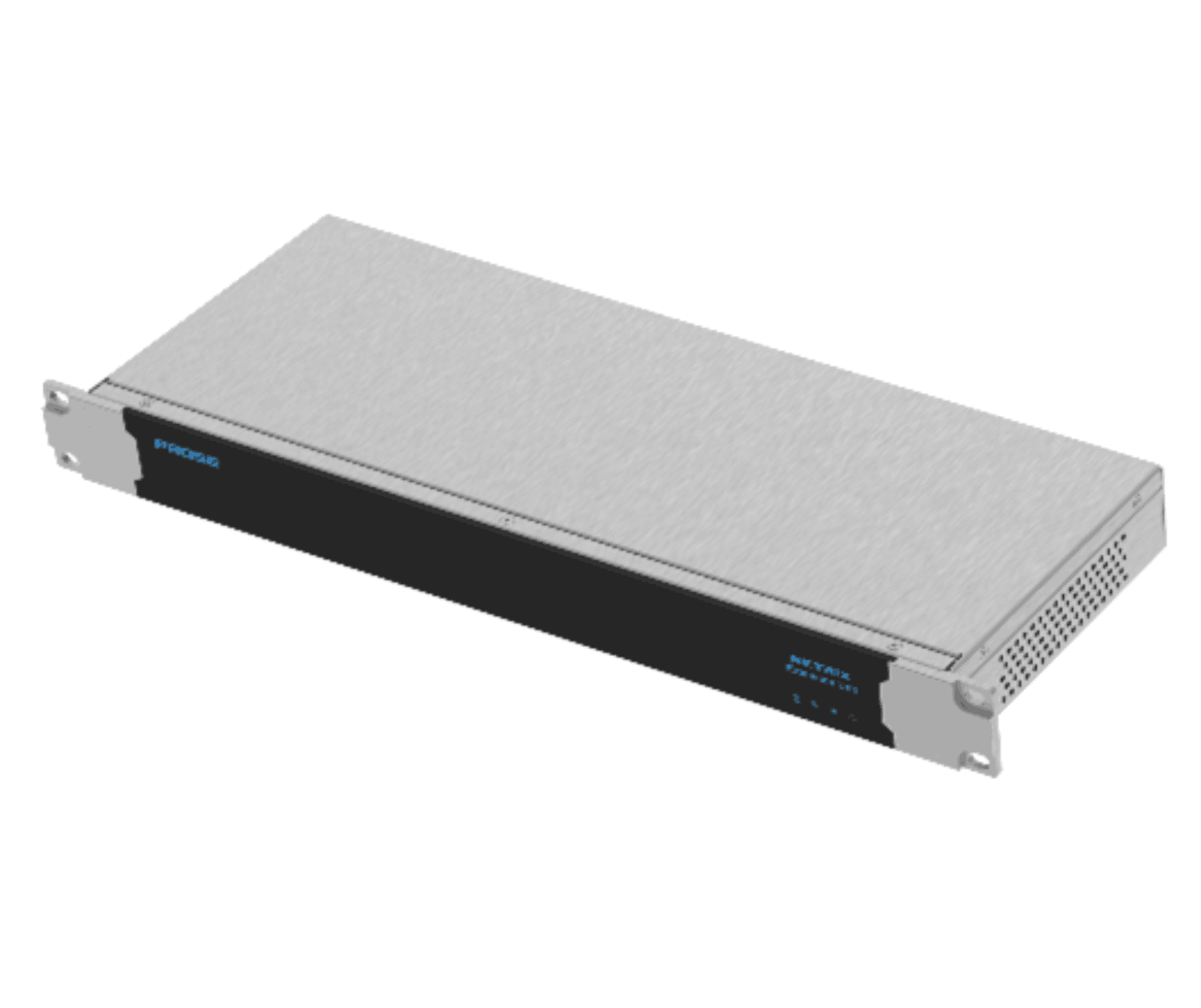

The PROSE ICS Extension Unit is device management unit in the intelligent Cabling system that used to real-time access to port-links information and ports connection status of scanning module, then reports to monitoring master. Management unit helps master to share ports-scanning load, extensions the number of scanning module and network scale, and provides power for the scanning modules. Through the standard RJ45 copper patch cord and the electronic distribution frame connection, support a maximum of 24 scnners management, the ICS Extension Unit can be networked through the Ethernet switch, and the server to achieve data exchange.
| Size | 1 HU x 19” |
| W x D x H : 482mm x 172mm x 44mm | |
| Materials | Aluminum + Plastic (Panel) |
| Weight | ≤2kg |
| Interface Type | LAN interface*1 |
| RS422 interface*1 (for connecting Master Unit) | |
| RS422 interface *24 (for connecting Scanner Unit) | |
| Status Indicator | POWER (Blue): When power supply is normal, the indicator is always on. |
| RUN (Blue): When the master run normally, the indicator is slow-flashing. | |
| TASK (Blue): When there are tasks, the indicator is always on. | |
| ALARM (Red): When wiring ports abnormal, the indicator is always on. |
| Input Parameter | |
| Voltage Range | 85~264VAC |
| Efficiency | 83% |
| Inrush Current | Cold boot: 33A/230VAC |
| Leakage Current | <2mA/240VAC |
| Output Parameter | |
| Dc Voltage | 5V |
| Rated Current | 10A |
| Current Range | 0~10A |
| Rated Power | 50W |
| Voltage Accuracy | -2.0%~+2.0% |
| Item | Description |
| Operation temperature | -20℃ to +55℃ |
| Operation humidity | 20~90%RH |
| Storage temperature | -25℃ to +65℃ |
| Storage humidity | 10-95%RH |
| Temperature coefficient | -0.03%~+0.03%/℃ |
