Support 24pcs replaceable fiber adapter at the height of 1U;
Support single-mode or multi-mode fiber adapter;
Standard optical fiber connector structure plus two copper needle structure;
Tthe removable top cover facilitates routine maintenance;
Each port above the LED indicator light, used to guide the patch cord;

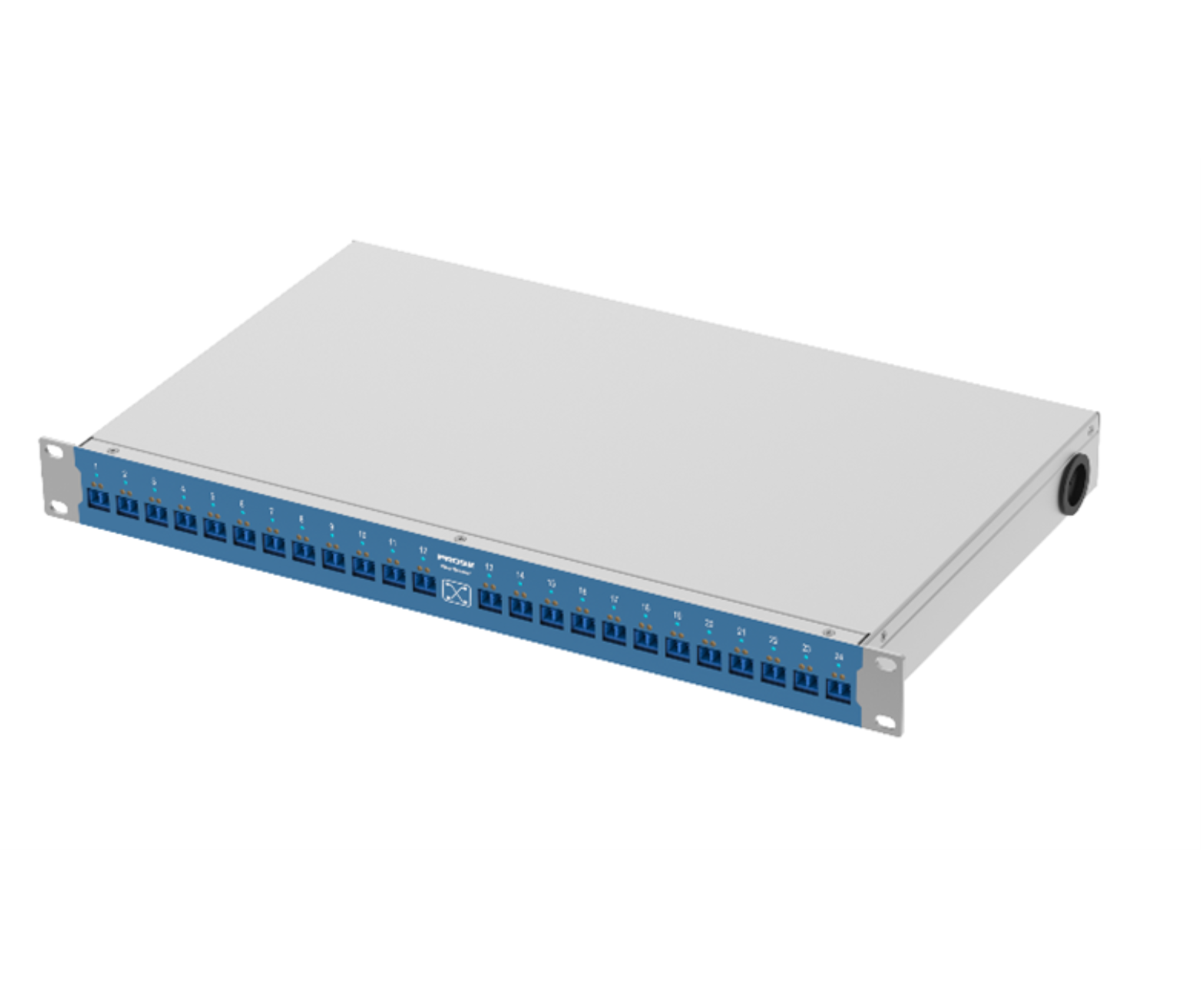

The PROSE ICS Fiber Patch Panel specially designed for common fiber adapter such as LC duplex adapter and SC simplex adapter, 1U rack space supports 24 ports, can install single-mode or multi-mode fiber adapter, easy disassembly and maintenance, with LED indicator, can display the current status of the port, the removable top cover facilitates routine maintenance.
| Height | 44.4mm(1U) |
| Width | 482.6mm(19in) |
| Depth | 250mm |
| Weight | ≤2kg |
| Materials | SPCC+Al5052 |
| Color | Default black, other colors can be customized |
| Function Name | Function Description |
| Port status | The scanning unit monitors the status changes of 24 ports in real time. When the status changes, the scanning unit immediately updates the data to the data cache and sends the data to the management unit in polling for processing |
| LED status management | The management unit organizes the LED status data of the scanning unit according to the current task and alarm status, and the scanning unit controls the LED blinking of the corresponding port according to the data |
| Scanning unit location | The scanning unit is quickly located by the software, and the 24 leds of the scanning unit are located to run the running state |
| Scan unit in-place detection | Checks whether scan units exist on the port |
| Operation Temperature | -20℃ to +55℃ |
| Operation Humidity | 20~90%RH |
| Storage Temperature | -25℃ to +65℃ |
| Storage Humidity | 10-95%RH |
| Temperature Coefficient | -0.03%~+0.03%/℃ |
