Standard fiber optic connector structure and two copper pins;
Support single-mode and multi-mode, length can be customized;
Supports LC duplex adapter and SC simplex adapter;

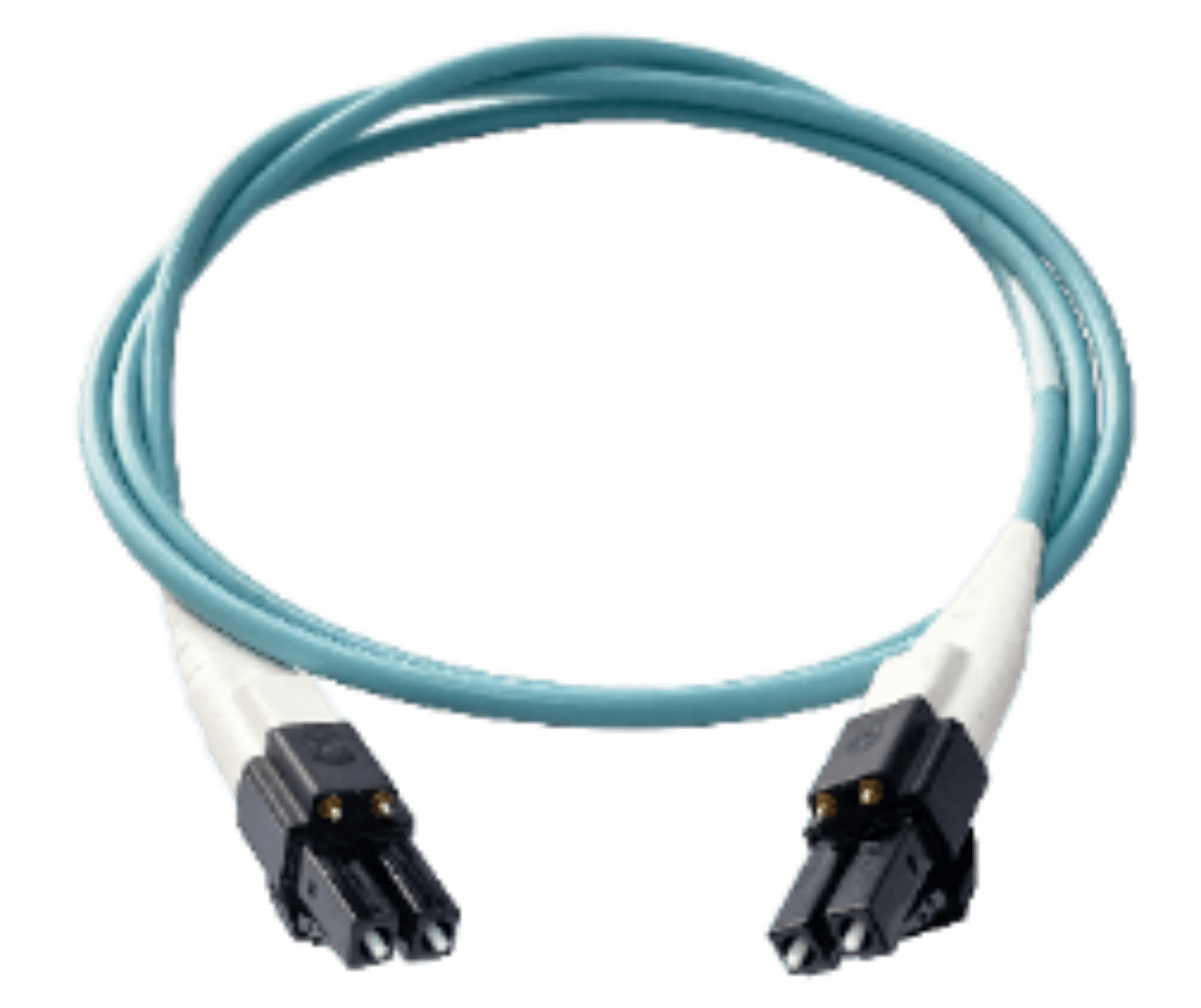

The PROSE ICS Fiber Patch Cord is designed for use with standard fiber optic adapters and intelligent patch panels. It features a standard fiber optic connector with an additional dual-pin intelligent connectivity design, supporting both single-mode and multimode fiber applications. Custom cable lengths are available to meet various deployment requirements.
| Fiber Types | Single-mode 9/125um (G652D,G657A/B, etc.) Multi-mode 50/125um (OM3/OM4/OM5) |
| Connecter Variants | Simplex and duplex |
| External Diameter | 0.9mm buffered fiber 3.5mm simplex/duplex cable |
| Delivery Form | Single item in foil bag One product ID label with measurement values per patchcord Serial number label on patchcord |
| Minimum Bending Radius for Installation(mm) | 20 times O.D |
| Minimum Bending Radius for Operation (mm) | 10 times O.D |
| Installation Temperature | 0-50℃ |
| Operating Temperature | -20℃ to +60℃ |
| Transportation and Storage Temperature | -25℃ to +70℃ |
| Single-mode | IL Typical | IL Maximum | RL Typical | RL Minimum | |
| LC duplex; SC simplex | Ultra (UPC) | 0.20 dB | 0.30 dB | -55 dB | -45dB |
| Angle(APC) | 0.20 dB | 0.30 dB | -65dB | -60dB | |
| Multi-mode | |||||
| LC duplex; SC simplex | Ultra (UPC) | 0.10 dB | 0.30 dB | NA | |
| Item | Parameter |
| Operation temperature | -20℃ to +55℃ |
| Operation humidity | 20~90%RH |
| Storage temperature | -25℃ to +65℃ |
| Storage humidity | 10-95%RH |
| Temperature coefficient | -0.03%~+0.03%/℃ |
