Compatible with Cat5e, Cat6,Cat6A and other shielded or unshielded cabling systems.
Adopts a standard 8-pin RJ45 interface with an additional dual-copper-pin structure for intelligent connectivity.
Equipped with a rear cable management bar for organized routing and simplified maintenance.
LED indicators above each RJ45 port provide clear visual guidance for patch cord tracing and management.
Supports both T568A and T568B wiring standards.

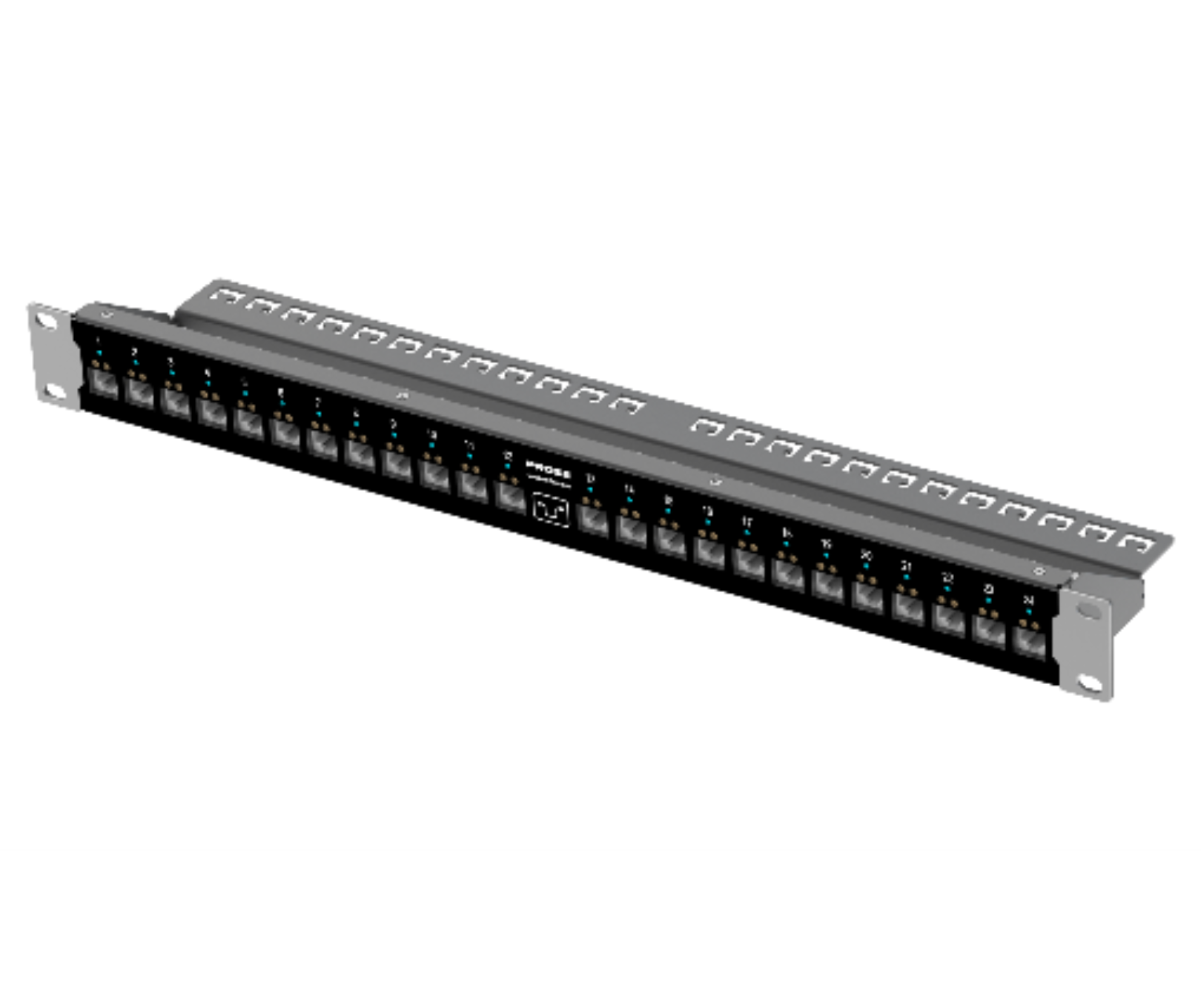

The PROSE ICS Patch panel specially designed for common Keystone interface modules, 1U rack space supports 24 ports, can install a variety of RJ45 Cat.5e/6/6A/7 modules, easy disassembly and maintenance, with LED indicator, can display the current status of the port, with removable rear cable tray.
| Height | 44.4mm(1U) |
| Width | 482.6mm(19in) |
| Depth | 94.4mm |
| Weight | ≤1kg |
| Materials | SPCC |
| Function Name | Function Description |
| Port status | The scanning unit monitors the status changes of 24 ports in real time. When the status changes, the scanning unit immediately updates the data to the data cache and sends the data to the management unit in polling for processing |
| LED status management | The management unit organizes the LED status data of the scanning unit according to the current task and alarm status, and the scanning unit controls the LED blinking of the corresponding port according to the data |
| Scanning unit location | The scanning unit is quickly located by the software, and the 24 leds of the scanning unit are located to run the running state |
| Scan unit in-place detection | Checks whether scan units exist on the port |
| Operation Temperature | -20℃ to +55℃ |
| Operation Humidity | 20~90%RH |
| Storage Temperature | -25℃ to +65℃ |
| Storage Humidity | 10-95%RH |
| Temperature Coefficient | -0.03%~+0.03%/℃ |
