Low VSWR, low insertion loss
Low PIM, high port isolation
High power handling
Compact design for easy installation
Customized connector is available
Optional 5G frequency band

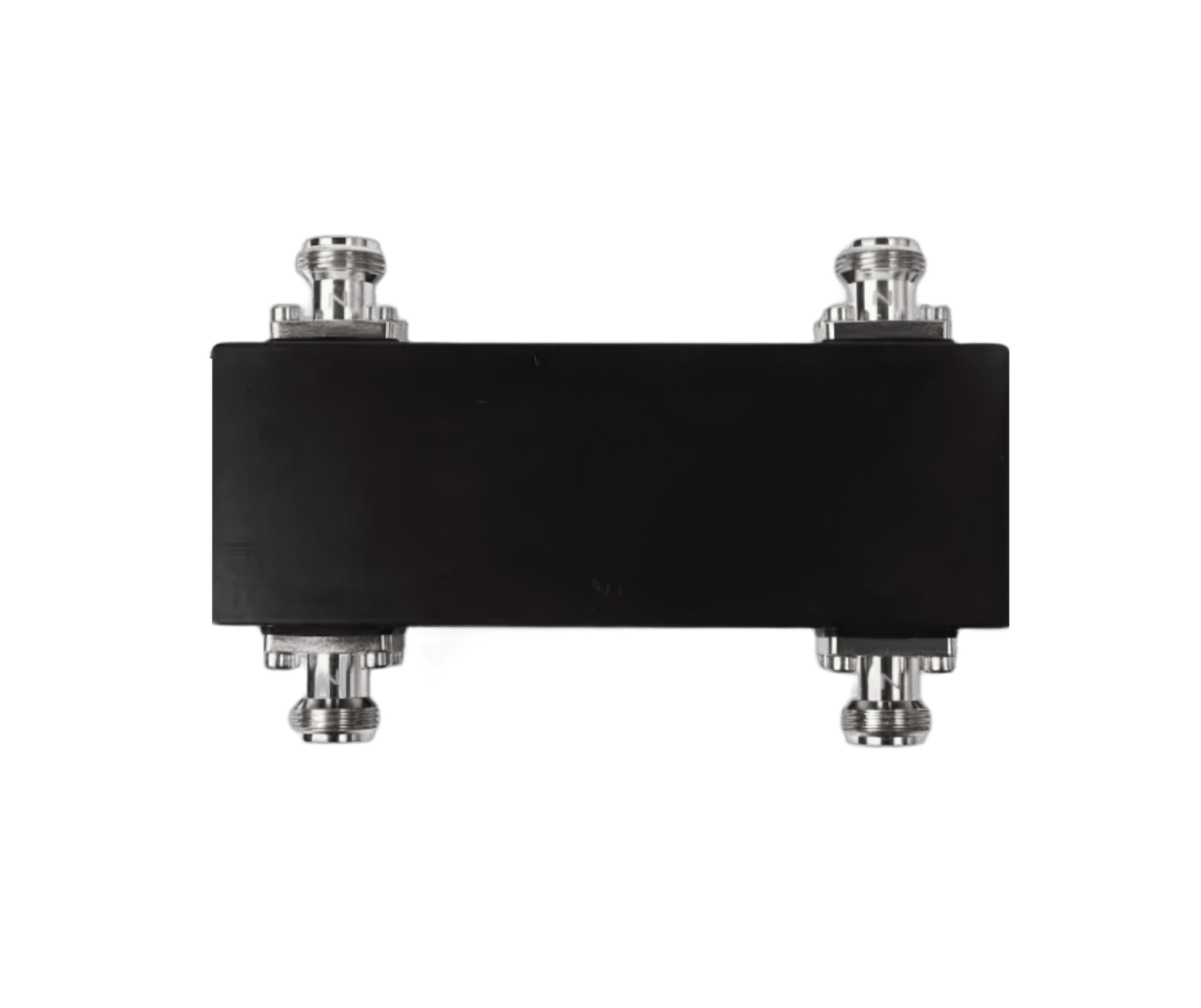

Hybrid coupler is mainly used for the combined output of signals of the same frequency in communication systems. It has the characteristics of high power capacity, high port isolation, and low PIM, and is widely used in various indoor coverage scenarios of mobile communication.
| Frequency | 698-4200 MHz |
| Return Loss / VSWR | ≤-18 dB/1.3 |
| Distribution Loss | 3±1.0dB |
| Isolation | ≥23dB |
| Power Handling | 300 W |
| Intermodulation (3rd order) | ≤-155 dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | IP65 |
| Dimension | 127 x 44 x 36 (mm) |
| Weight | 0.7 kg |
| Connectors Type | N female |
| Packing | 1Pcs in box |
