Modular design, and easy installation
Low optical transmission loss
Full remote-control of fiber optical repeaters
Broad frequency range
Can be free combination with other frequency band
Support GUI for parameter setting, status monitoring, firmware downloading, alarm indicating and other management operation

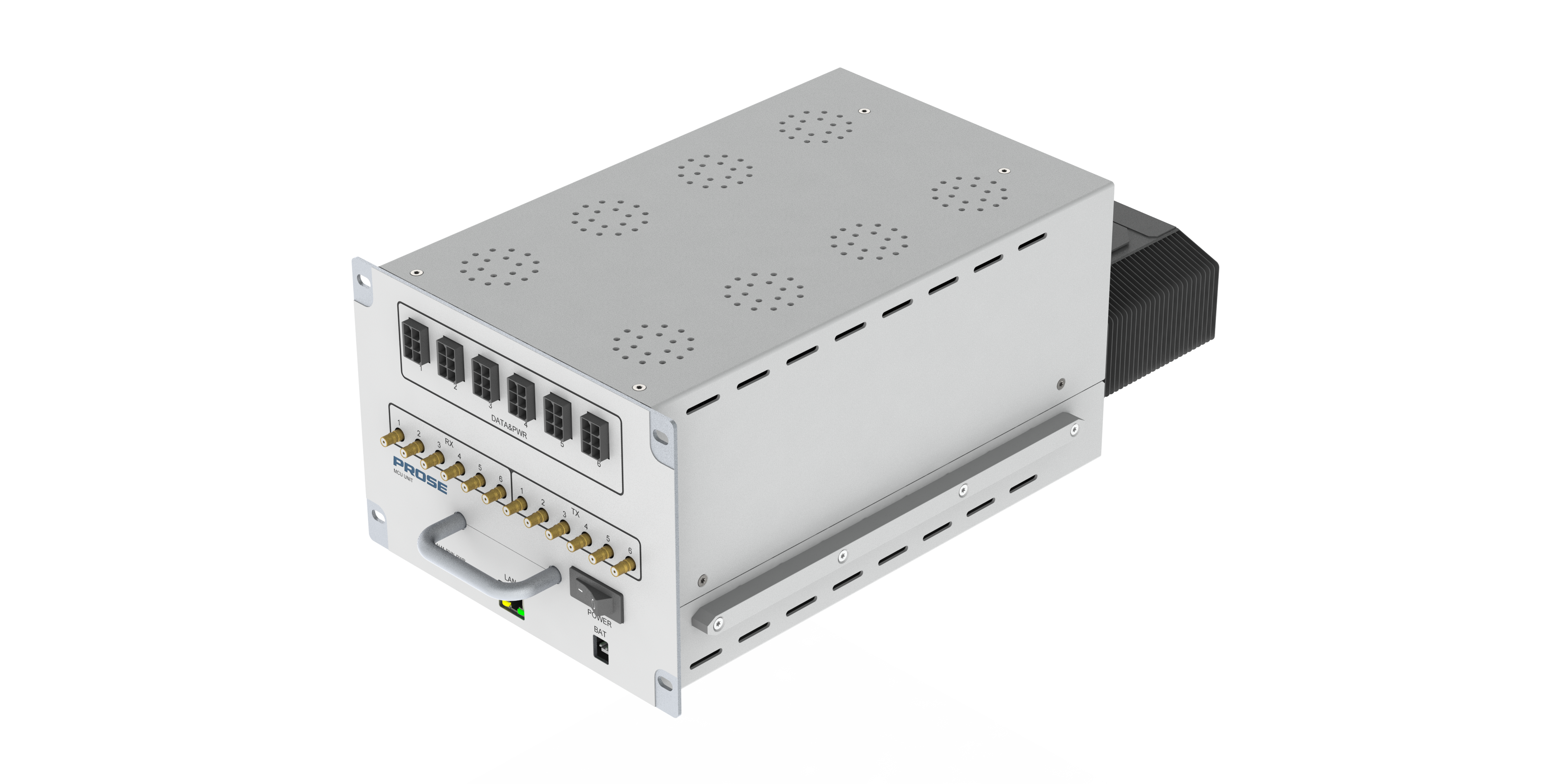

2T2R, 698-2700MHz, Sub-3G, support up to 6*Sub-3G LPAs
| Uplink | Downlink | ||
| Frequency Range | 698 - 2700 MHz | 698 - 2700 MHz | |
| Typical Gain | -5 ± 3 dB | -5 ± 3 dB | |
| Operating Temperature Range | -25°C to +55°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 85% |
| Local Control | PC via LAN |
| Optical Connectors | 2 x SC/APC | |
| RF Connectors | 24 x QMA (6 ports for TX SISO, 6 ports for TX MIMO, 6 ports for RX SISO, 6 ports for RX MIMO) | |
| Power supply port | 4 x 28 VDC + 2 x -48VDC | |

Low Noise and High-power Amplifier Unit
.png)
Low Noise and High-power Amplifier Unit
.png)
Low Noise and High-power Amplifier Unit
