Support UMTS/LTE technology
Modular design, hot swappable, easy installation
Independent gain control and filtering
Low-noise and high reliability
Broad frequency range

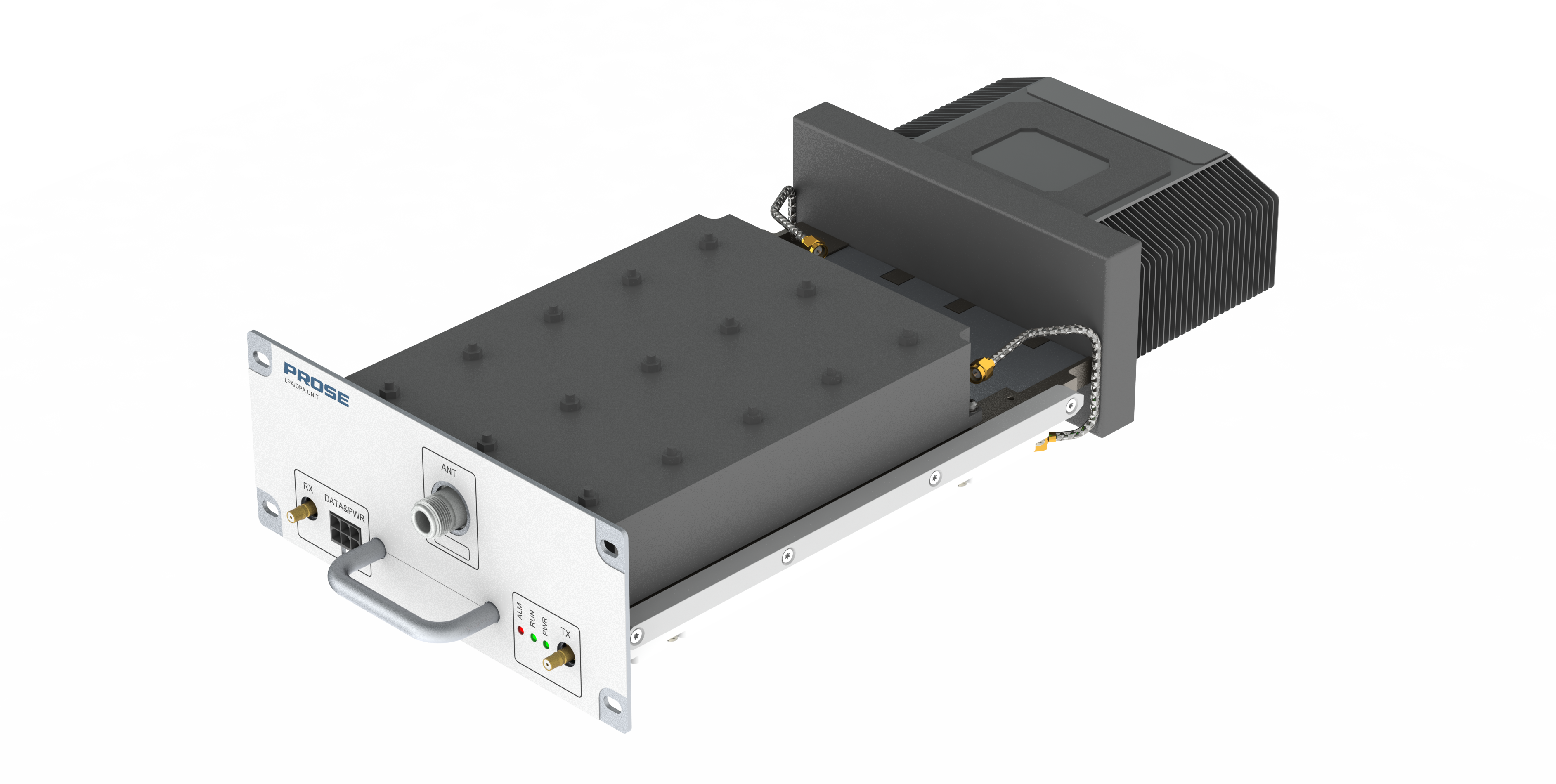

Band 1, 43.5 dBm, modular design
| Uplink | Downlink | ||
| Frequency Range | Band 1 | 1920 - 1980 MHz | 2110 - 2170 MHz |
| Gain | 55 ± 2 dB | 55 ± 2 dB | |
| RF Output Power | -5 ± 2 dBm | ≥ 43.5 dBm | |
| Operating Temperature Range | -25ºC to +55ºC |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
5% - 95% |
| Local Control | RS485 |
| RF Connectors Type |
QMA, N female |
|
