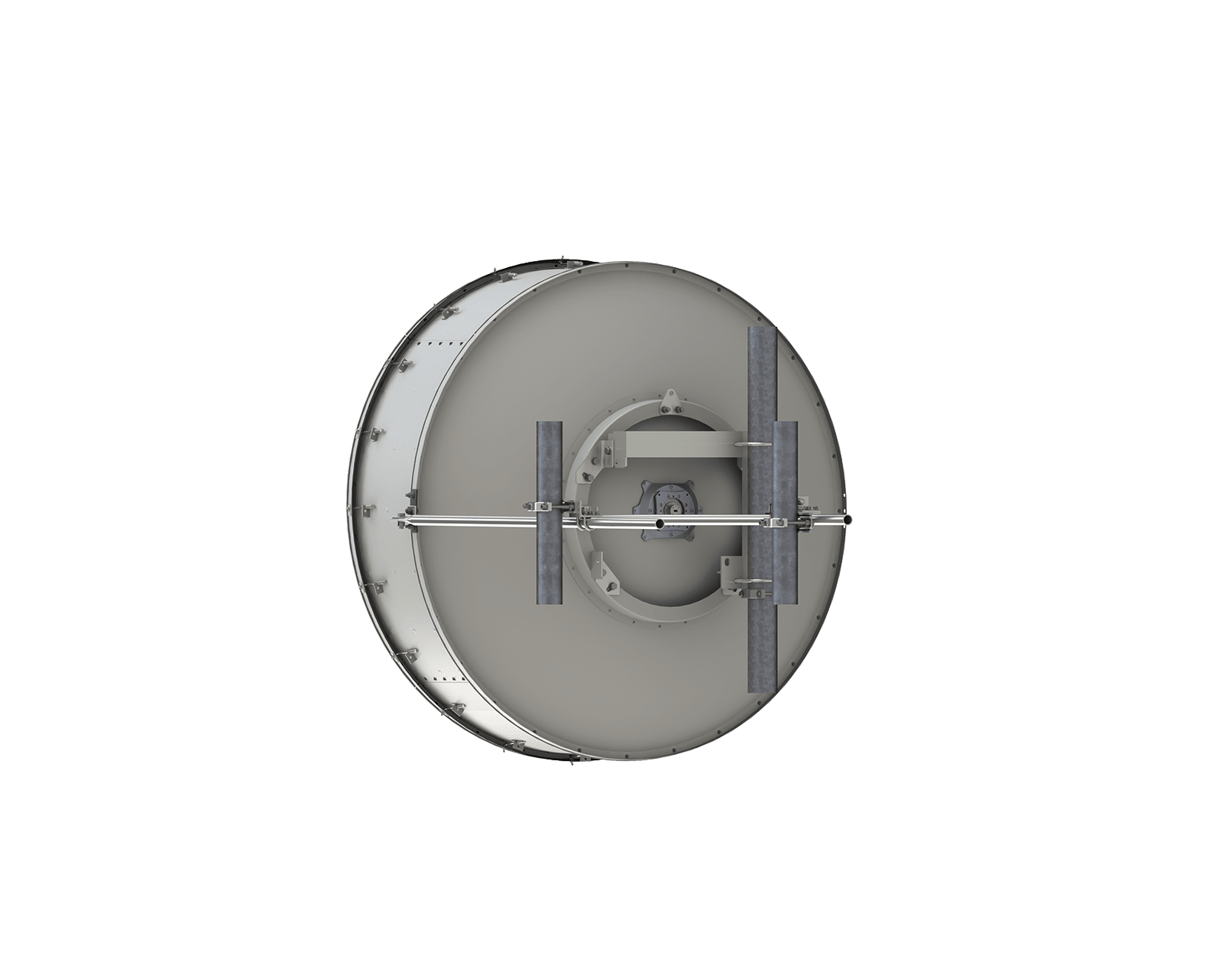

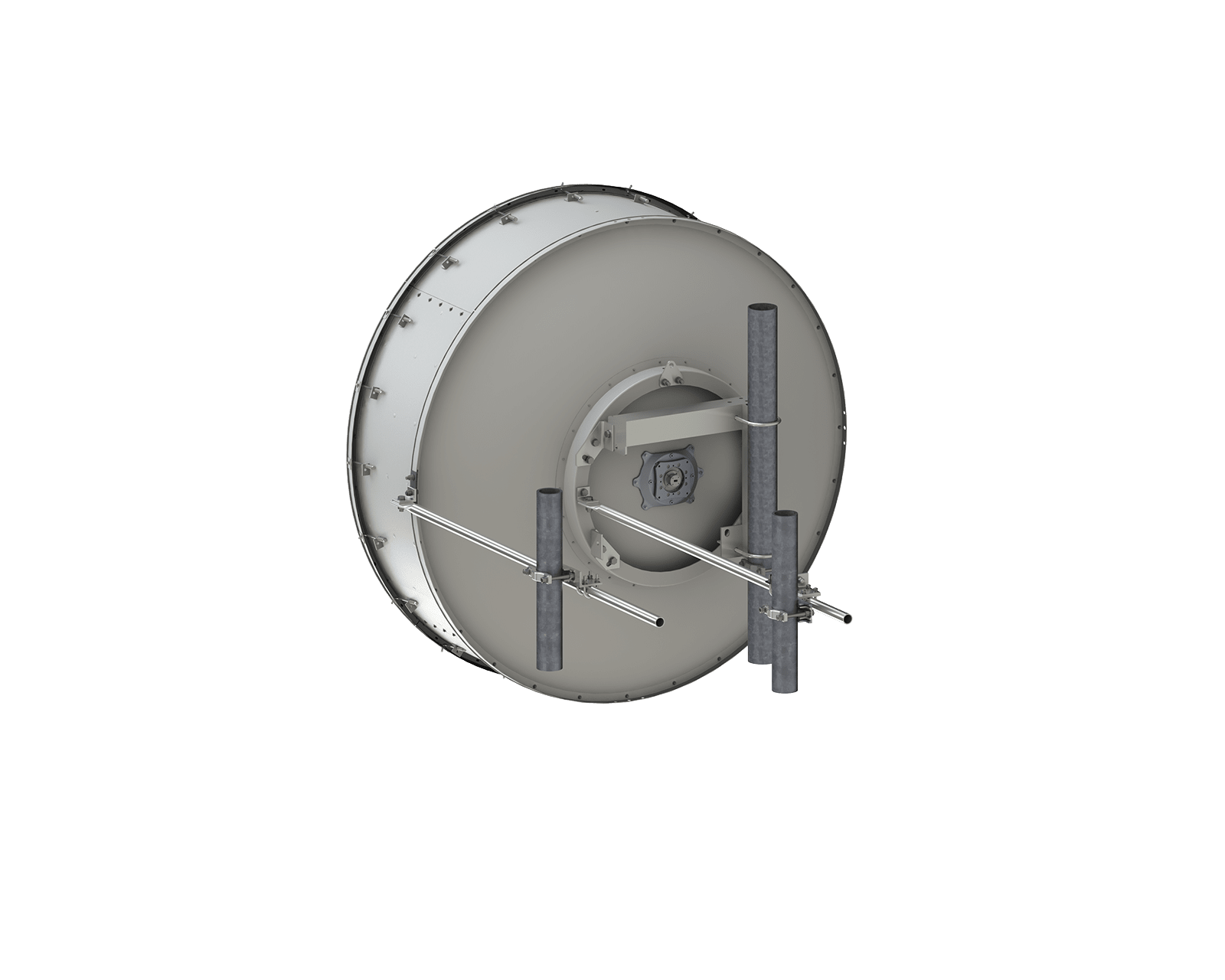

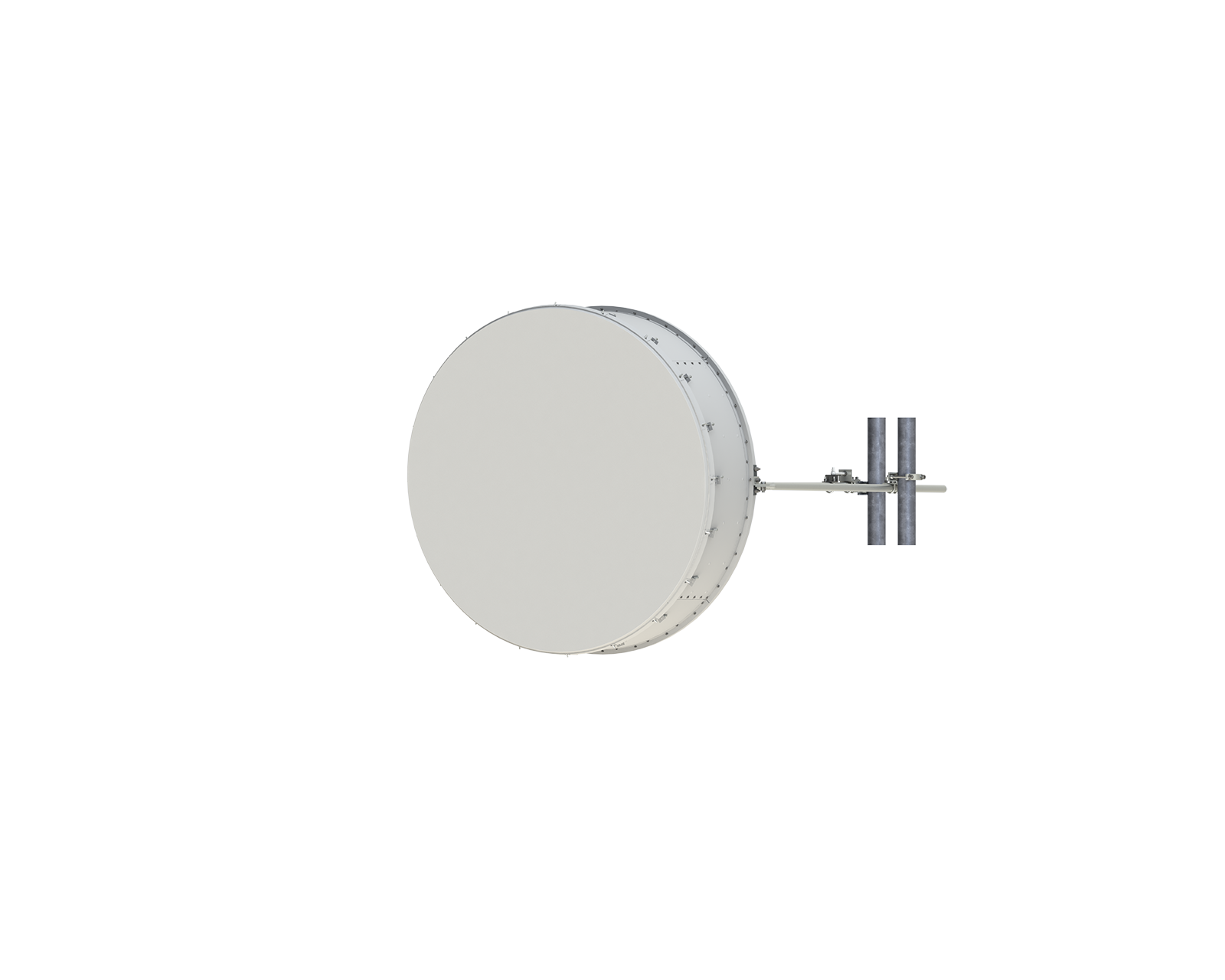

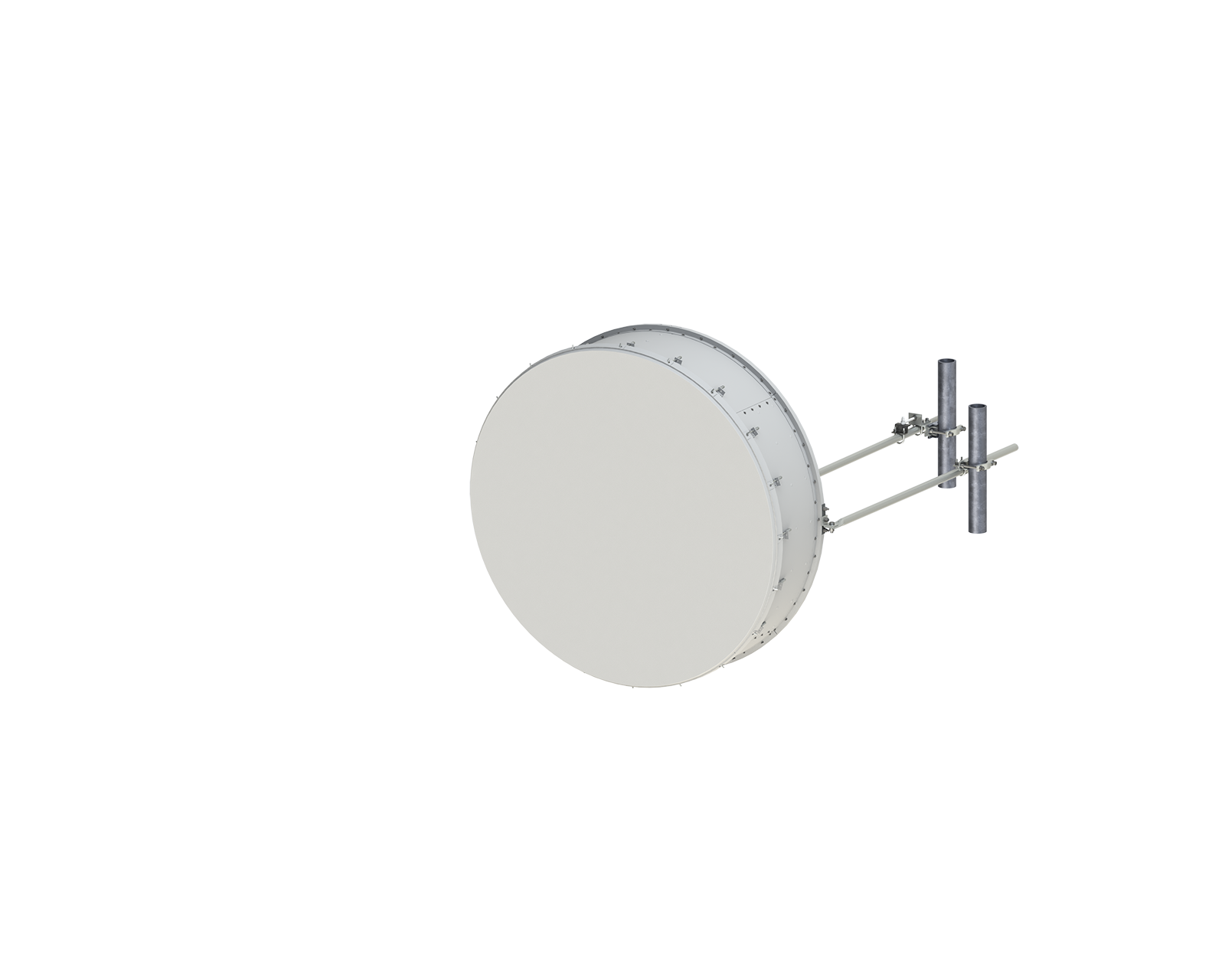

8ft | 2.4m High Performance Microwave Antenna
Dual polarized
7.100 – 8.500 GHz
Custom/Standard flange
White antenna, grey radome
2.4m High Performance Microwave Antenna
| Operating Frequency | 7.10-8.50 GHz |
| Gain, Low Band | 42.1 dBi |
| Gain, Mid Band | 43.0 dBi |
| Gain, High Band | 43.7 dBi |
| 3dB BW (Azimuth & Elevation) | 1.12 deg |
| VSWR (Return Loss) | 1.30 (-17.7 dB) |
| F/B Ratio | 69 dB |
| XPD | 30 dB |
| Polarization | Dual-polarized |
| Regulatory Compliance | ETSI 302 217 R1 Class3 |
| Radiation Pattern Envelope Number | RPE24-7W |
| Operating Temperature Range | -45°C to +65°C |
| Wind Speed, Operational | 180 km/h | 112 mph |
| Wind Speed, Survival | 252 km/h | 157 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±5° |
| Elevation Adjustment Range | ±5° |
| Packed Dimension, Length | 2700mm | 106.30in |
| Packed Dimension, Width | 1150mm | 45.28in |
| Packed Dimension, Height | 2560mm | 100.79in |
| Net Weight | 175 kg | 385.8 lb |
| Pole Diameter | 120 mm | 5 in |
| Side Struts, Included | 3 |
.png)
4ft | 1.2m High Performance Microwave Antenna, dual polarized, 24.250 – 26.500 GHz
.png)

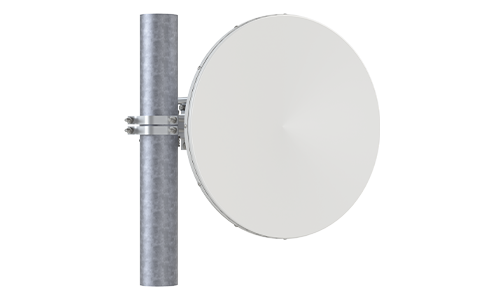

3ft | 0.9m High Performance Microwave Antenna, dual polarized, 17.700 - 19.700 GHz
.png)

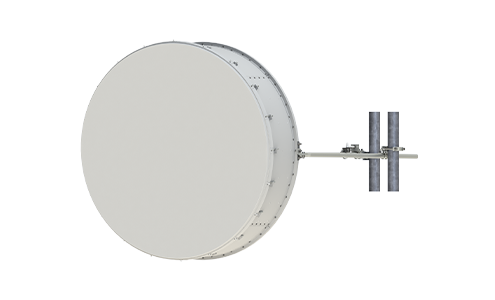

6ft | 1.8m High Performance Microwave Antenna, dual polarized, 7.100 - 8.500 GHz
