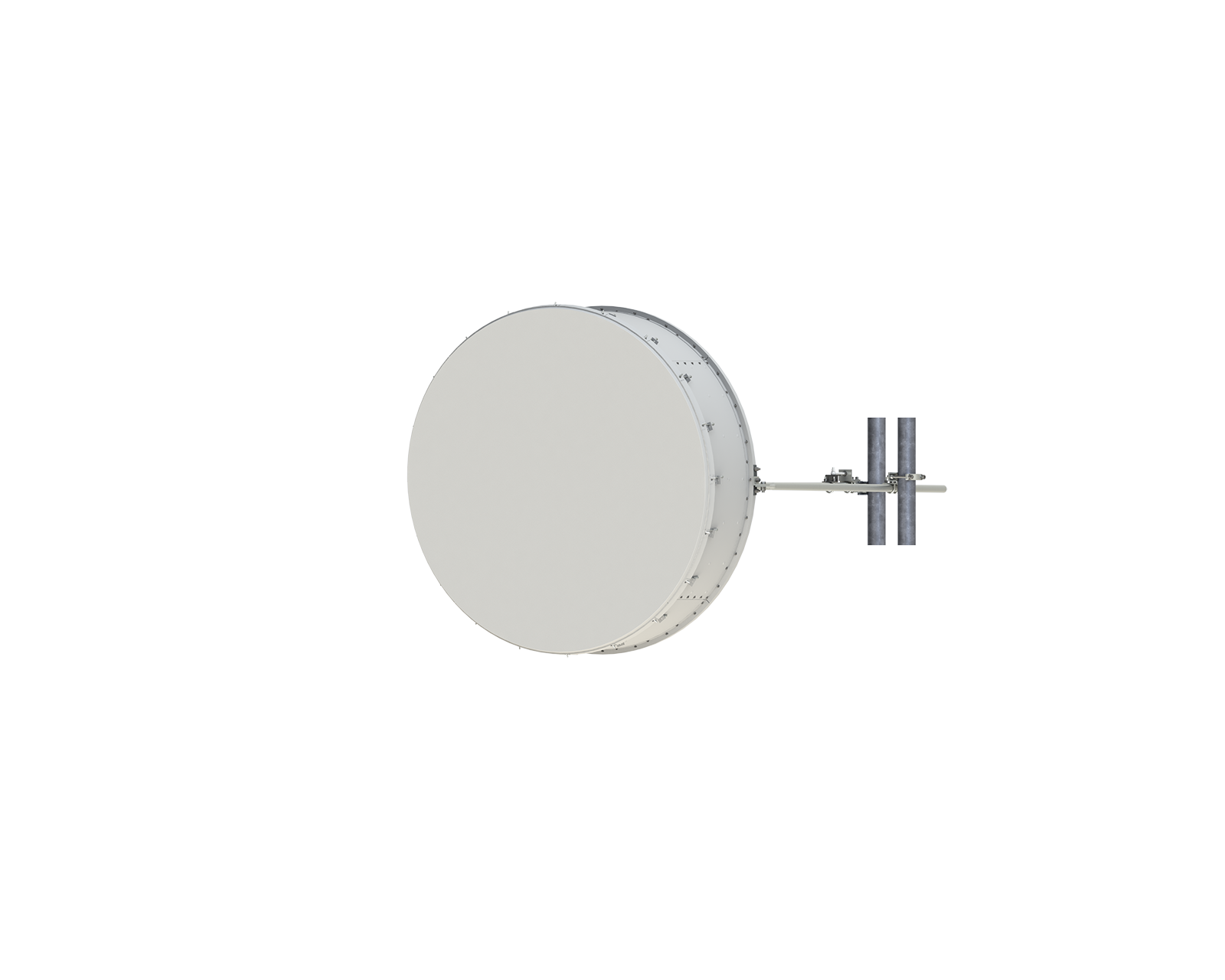

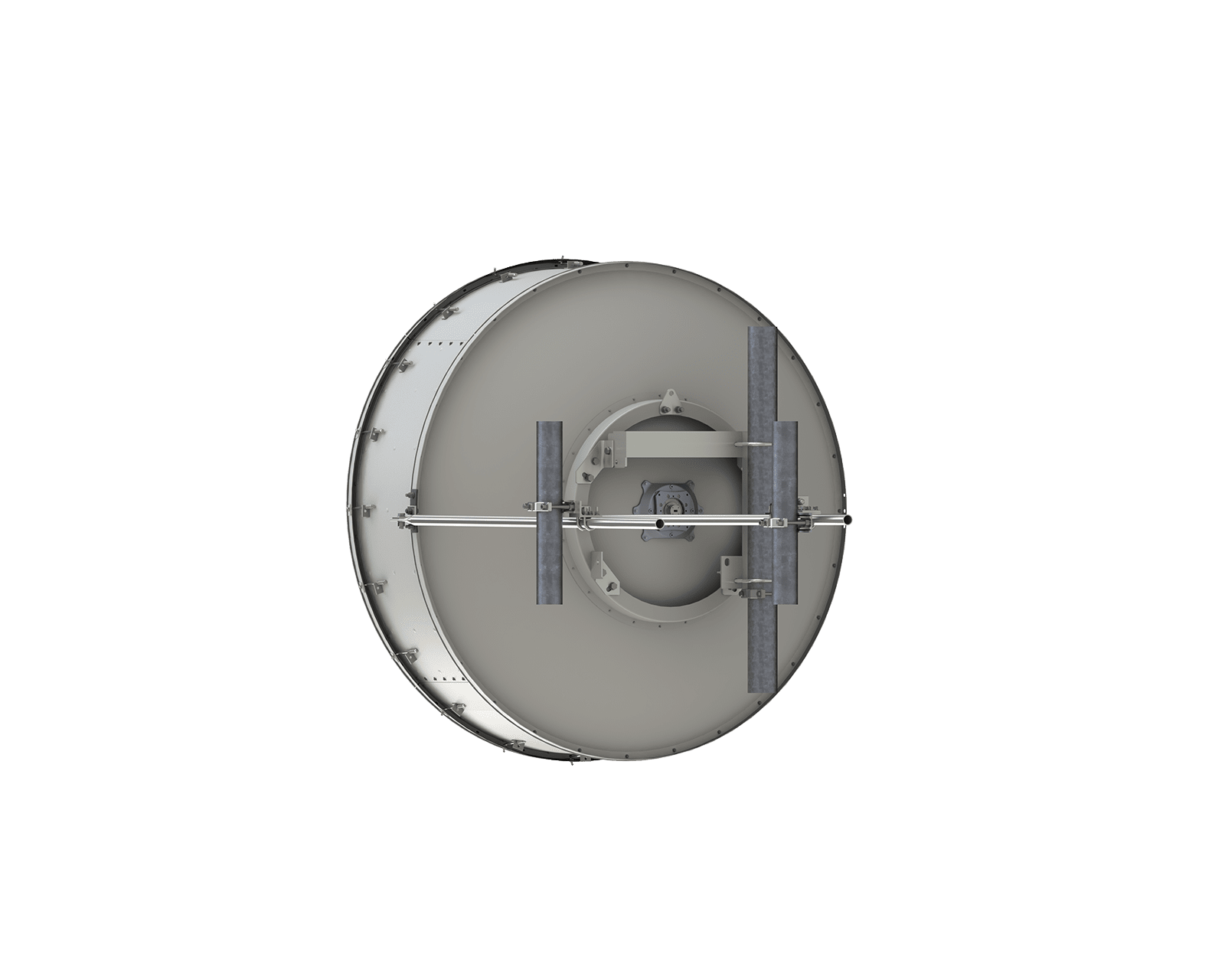

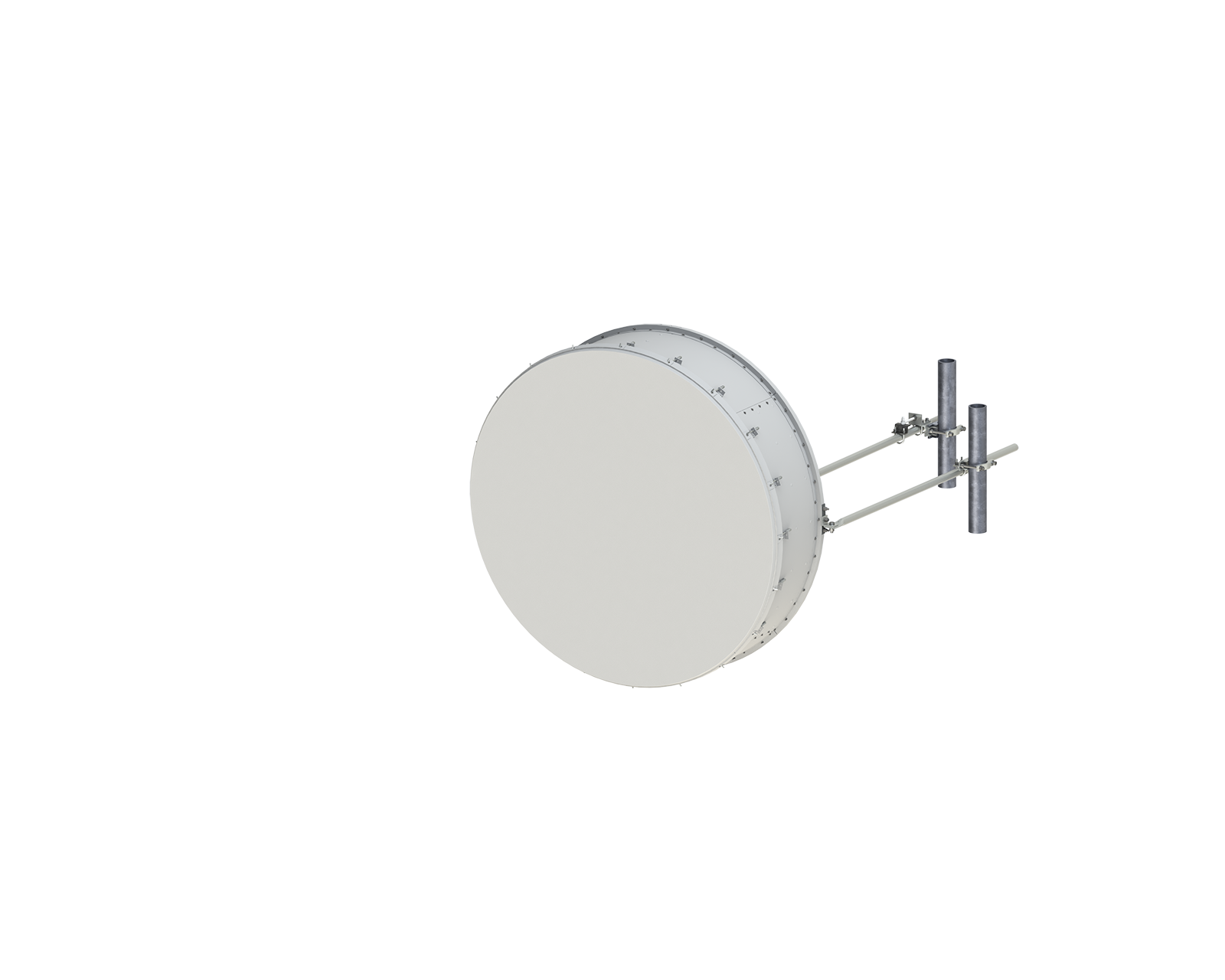

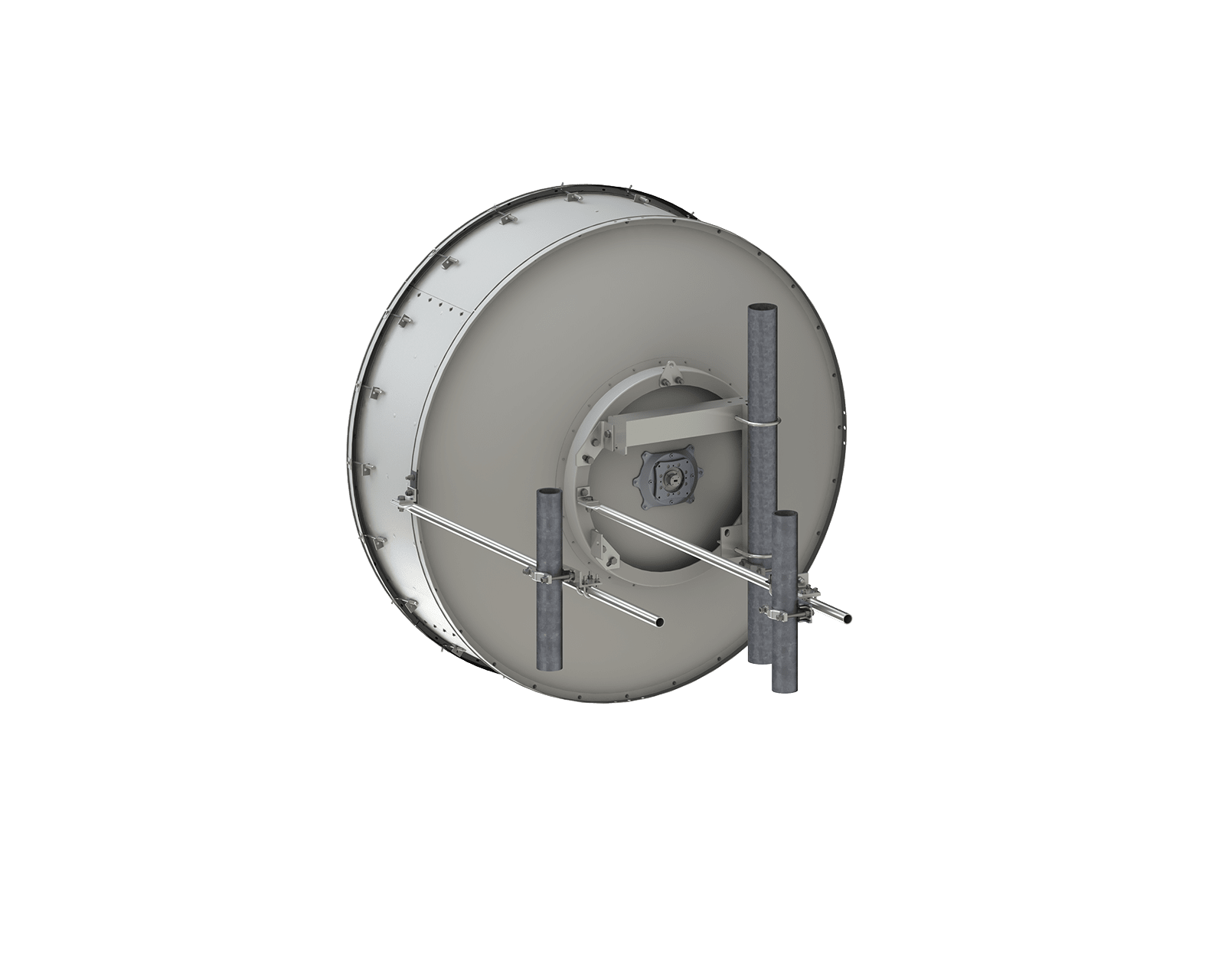

8ft | 2.4m High Performance Microwave Antenna
Dual polarized
5.925 – 7.125 GHz
Custom/Standard flange
White antenna, grey radome
2.4m High Performance Microwave Antenna
| Operating Frequency | 5.925-7.125 GHz |
| Gain, Low Band | 40.6 dBi |
| Gain, Mid Band | 41.5 dBi |
| Gain, High Band | 42.3 dBi |
| 3dB BW (Azimuth & Elevation) | 1.3 deg |
| VSWR (Return Loss) | 1.30 (-17.7 dB) |
| F/B Ratio | 67 dB |
| XPD | 30 dB |
| Polarization | Dual-polarized |
| Regulatory Compliance | ETSI 302 217 R1 Class3 | US FCC Part 101A |
| Radiation Pattern Envelope Number | RPE24-6W |
| Operating Temperature Range | -45°C to +65°C |
| Wind Speed, Operational | 180 km/h | 112 mph |
| Wind Speed, Survival | 252 km/h | 157 mph |
| Reflector Construction | One-piece reflector |
| Azimuth Adjustment Range | ±5° |
| Elevation Adjustment Range | ±5° |
| Packed Dimension, Length | 2700mm | 106.30in |
| Packed Dimension, Width | 1150mm | 45.28in |
| Packed Dimension, Height | 2560mm | 100.79in |
| Net Weight | 175 kg | 385.8 lb |
| Pole Diameter | 120 mm | 5 in |
| Side Struts, Included | 3 |
.png)
2ft | 0.6m High Performance Microwave Antenna, single polarized, 24.250- 26.500 GHz
.png)
2ft | 0.6m High Performance Microwave Antenna, single polarized, 12.700 - 13.250 GHz
.png)

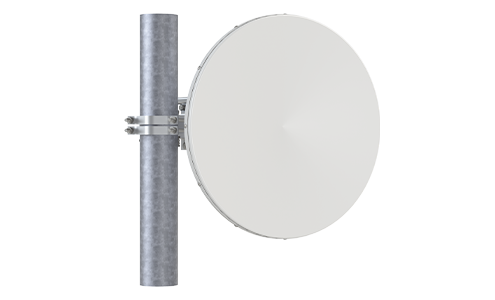

2ft | 0.6m High Performance Microwave Antenna, dual polarized, 21.200 - 23.600 GHz
