Comply with international standards.
Low insertion loss.
Single mode or multi-mode.
Metal or plastic housing.
Bronze or ceramic calibration sleeves.
Simplex or duplex.
With or without flange.

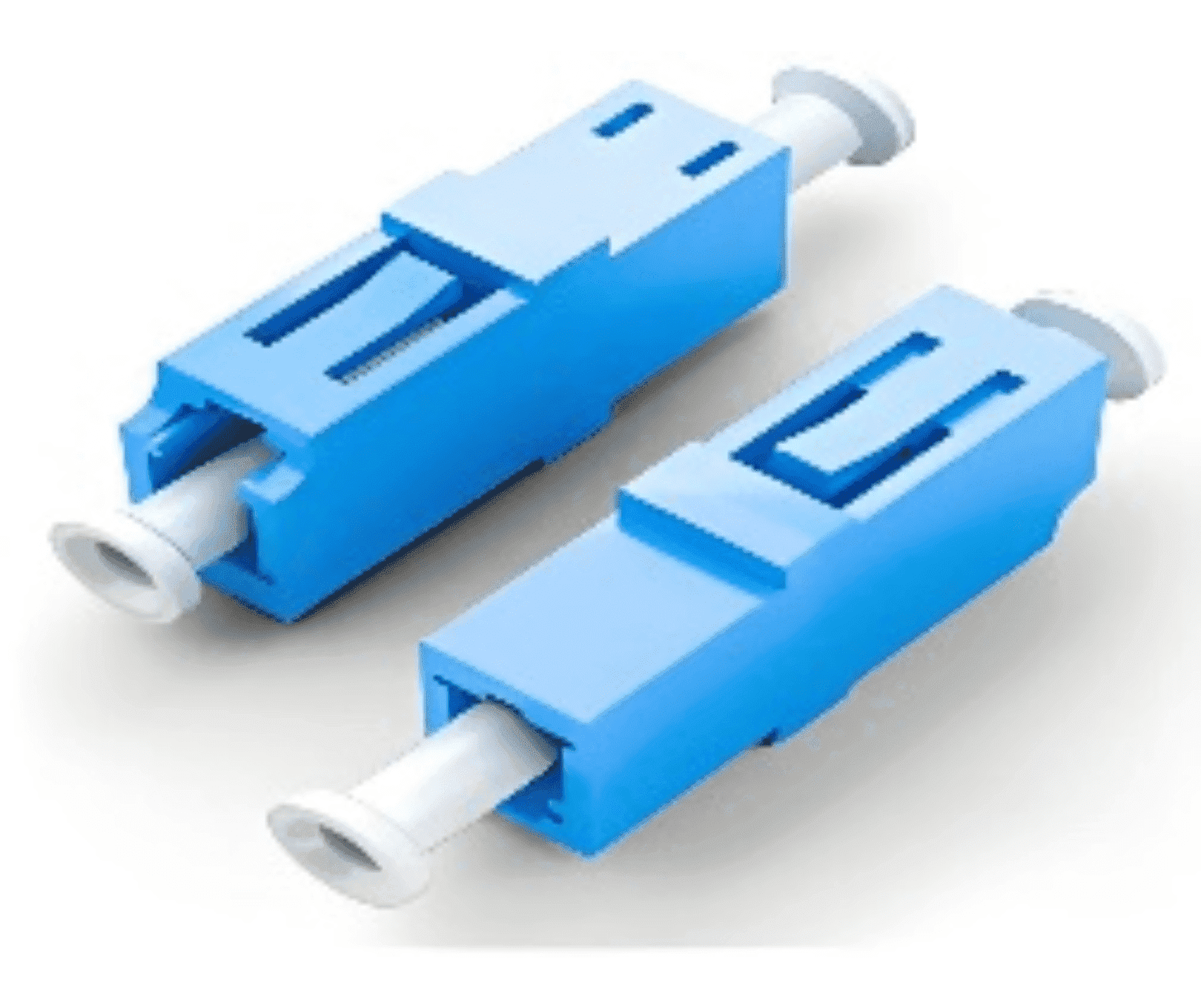

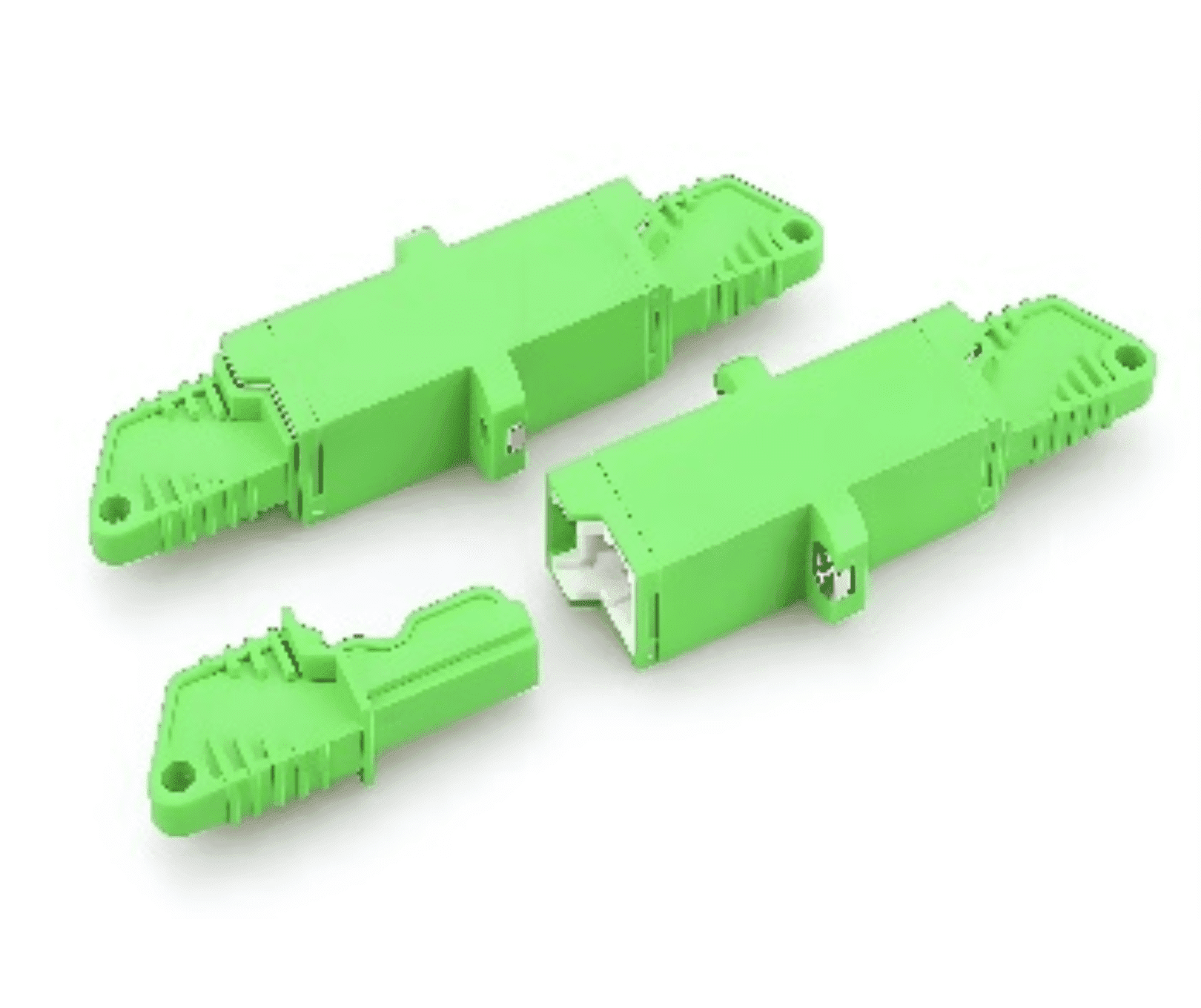

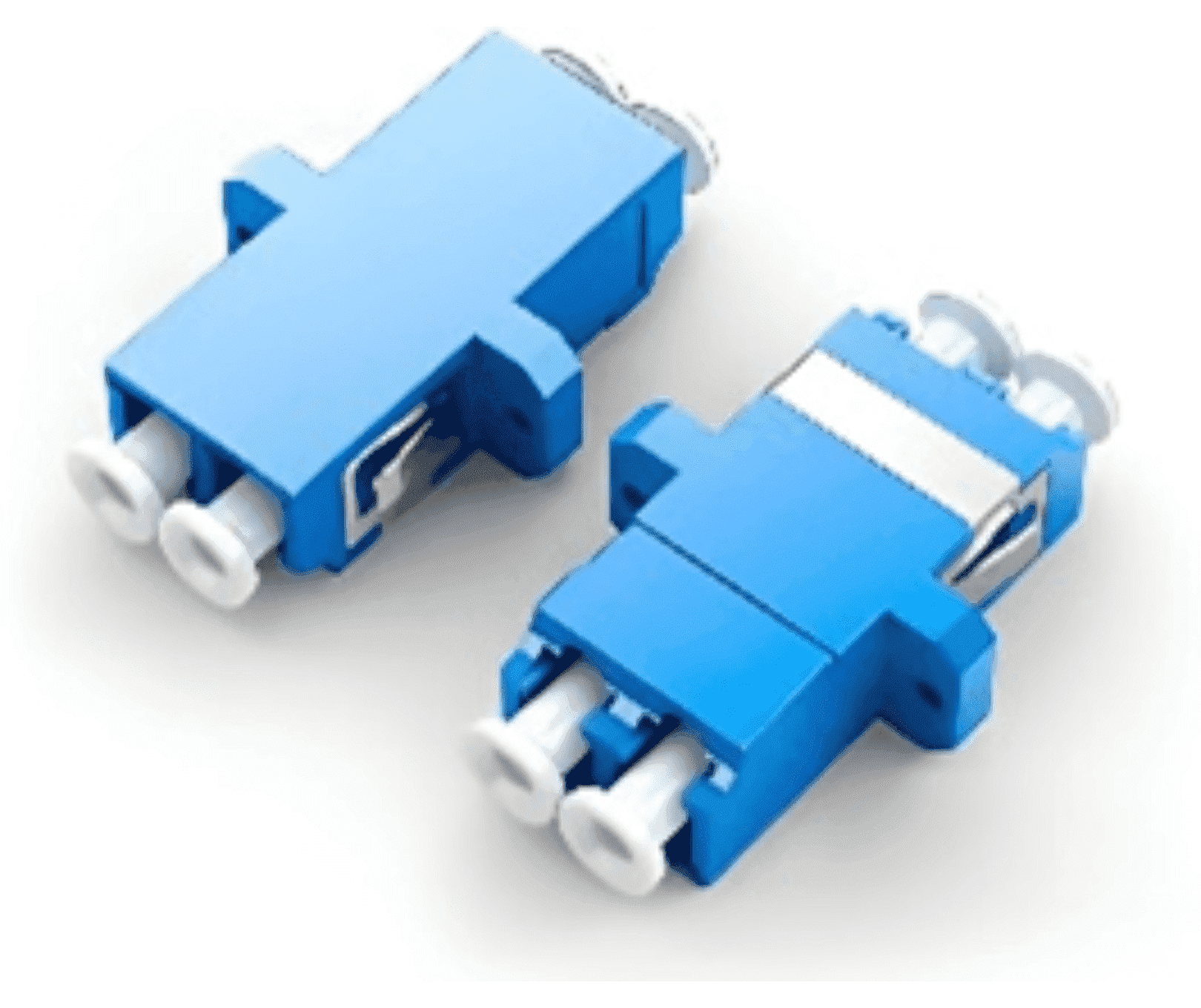

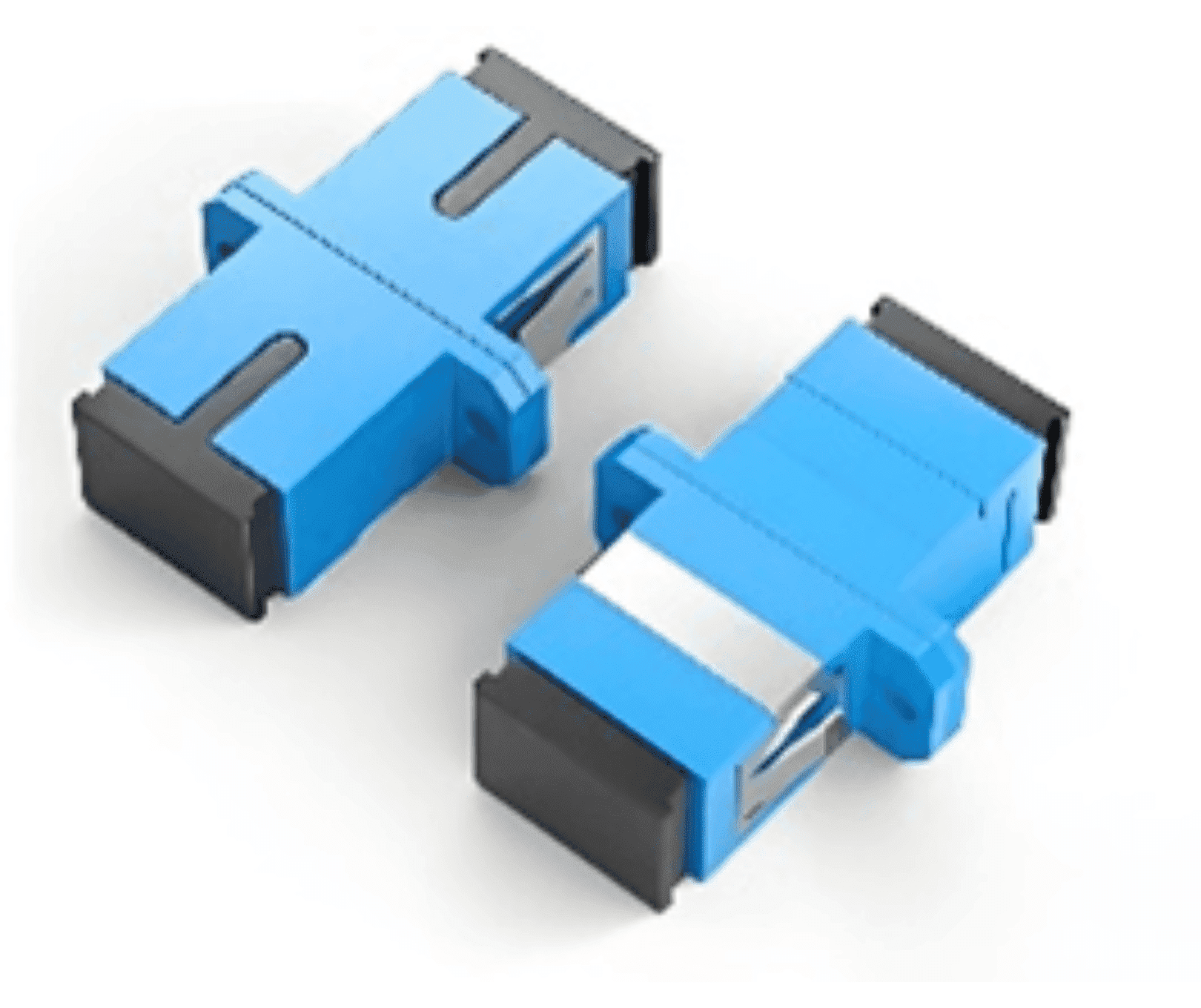

PROSE optical fiber adapter is a component that connects two optical fiber connectors and is usually installed on optical fiber distribution frames and wall panels, it meets and exceeds the TIA-568.3-D standard.
The optical fiber is precisely positioned through a ceramic sleeve, ensuring that the adapter provides a safe, low-loss internal connection.
They are suitable for local area networks, datacenter, premises distribution, test and laboratory equipment.
| Items | Parameters |
| Insertion loss | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Insertion and withdrawal life | ≥1000 times |
| Temperature range | -40℃~80℃ |
