RJ45 keystones, fiber adapter, fiber welding, fiber pre-termination, one-stop solution.
Copper adapter panel, optical adapter panel, module box collocation.
Adapter Panel supports a variety of fiber type including SM, OM3, OM4 and OM5.
It is designed for high density cabling, especially in data center.

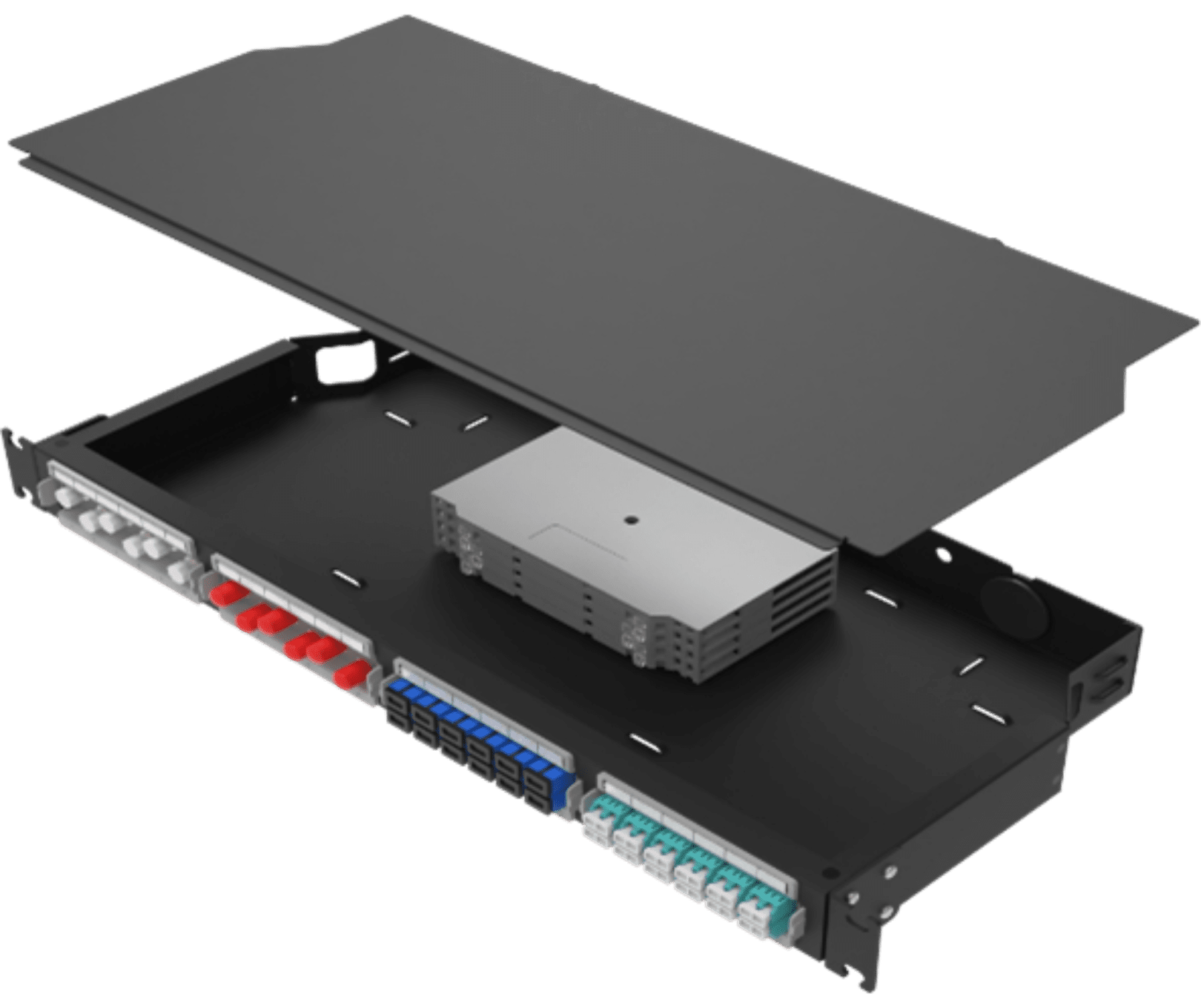

PROSE adapter panel is suitable for high-density fixed patch panel and is used with it.

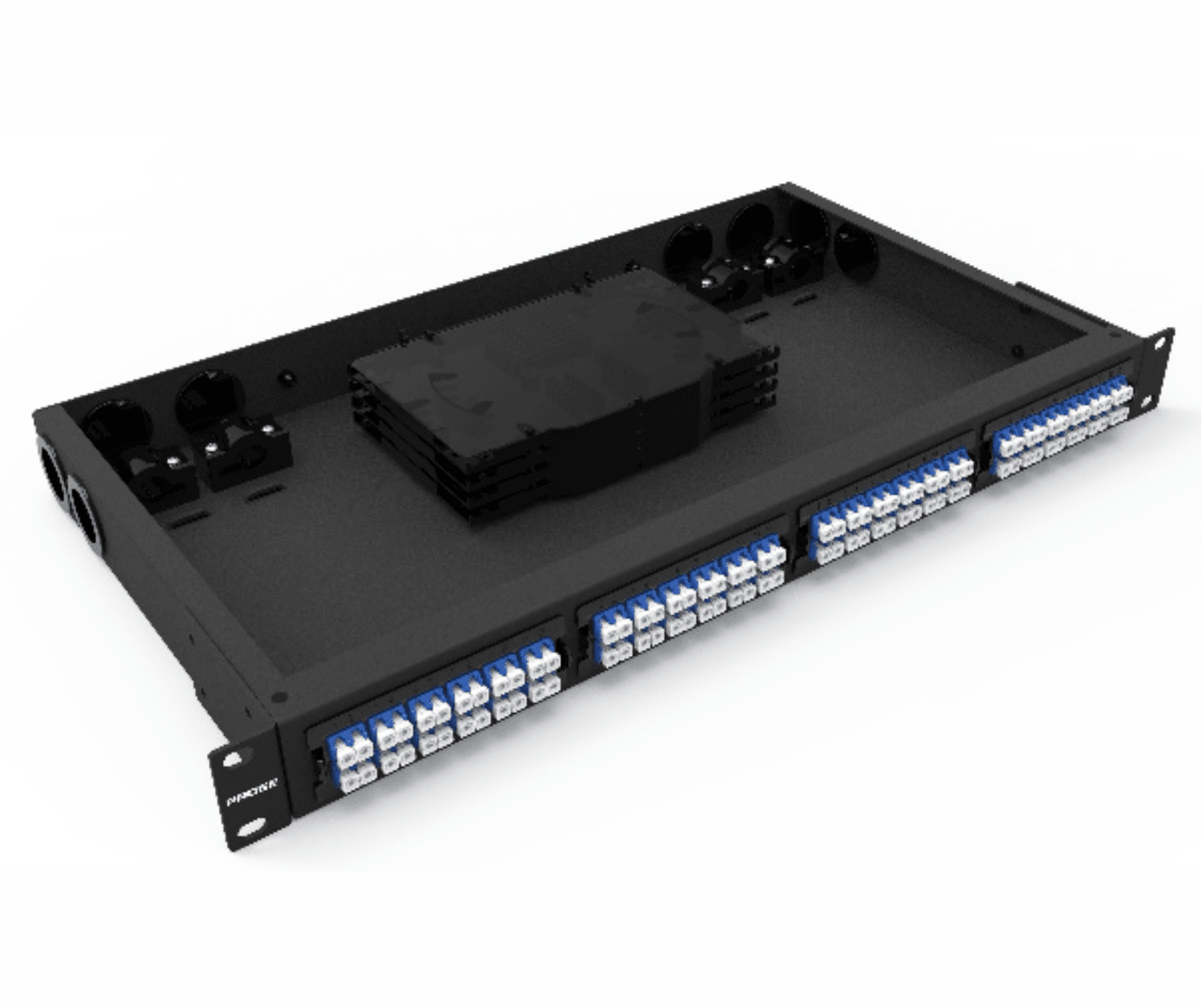

PROSE high-density fiber patch panels are designed for application in high density cabling system, especially in data center.
It meets the requirements of ANSI/TIA-568.2-D and ISO/IEC 11801.
They are suitable for installation on 19" racks with excellent performance and easy installation, and meanwhile have extremely high flexibility, adaptability and maximally integration.
| Items | Parameters |
| Compatibility | 19” rackmount, fixed / sliding / hybrid high-density patch panel |

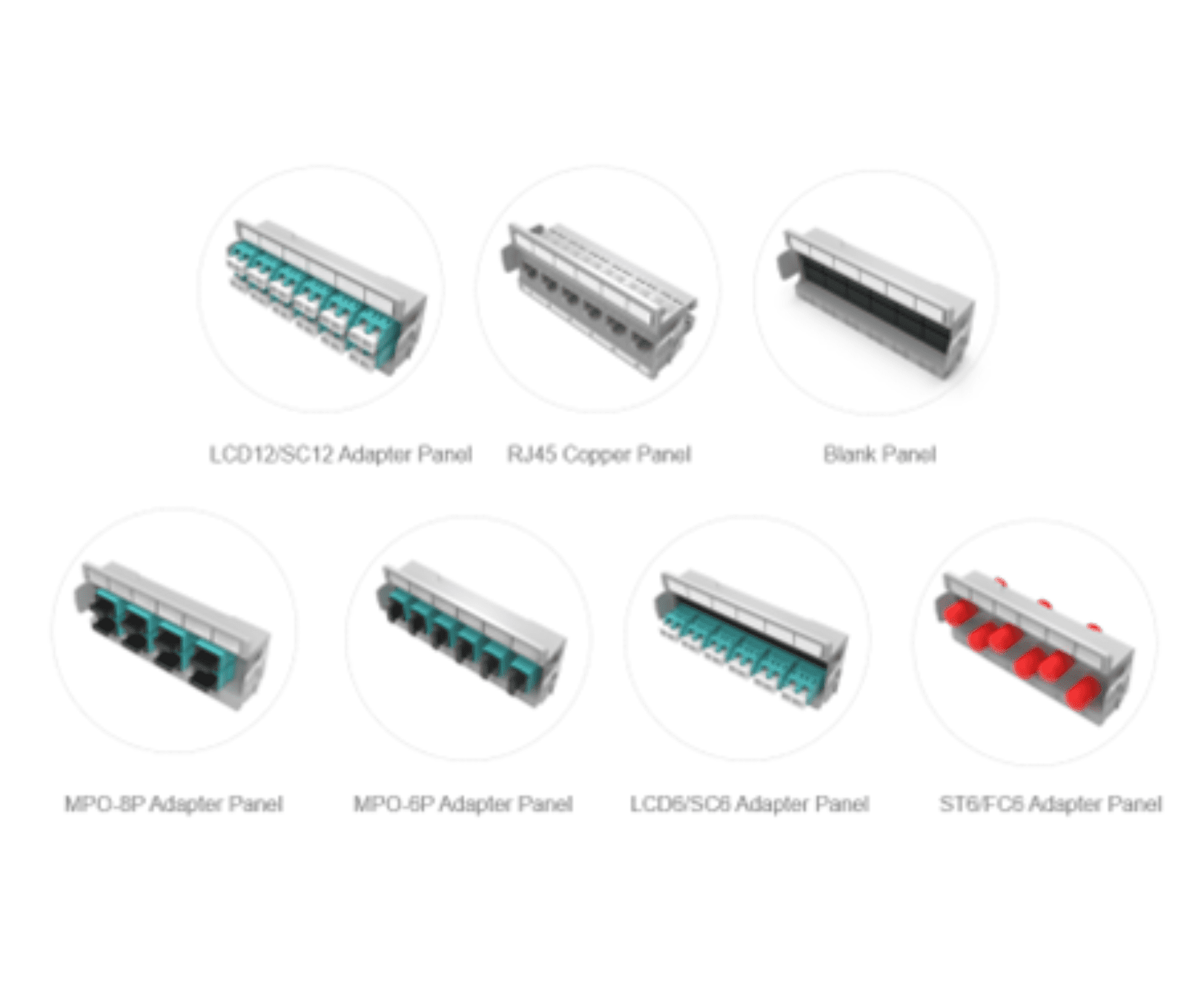

| Supported Adapter Types | LC/SC/FC/ST, MPO Type A / Type B, Copper modules, Blank panel |
| Supported Fiber Types | SM G652D, OM3, OM4, OM5, MM |
| Material | High‑strength metal panel (black coated) |
| Port Configuration | 6 / 8 / 12 ports |
| Insertion Loss (adapter) | ≤ 0.2 dB (typical) |
| Return Loss | UPC: ≥ 50 dB APC: ≥ 60 dB |
| Repeatability | ≤ 0.2 dB variation |
| Interchangeability | ≤ 0.2 dB |
| Insertion & Withdrawal Durability | ≥ 1000 cycles |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
