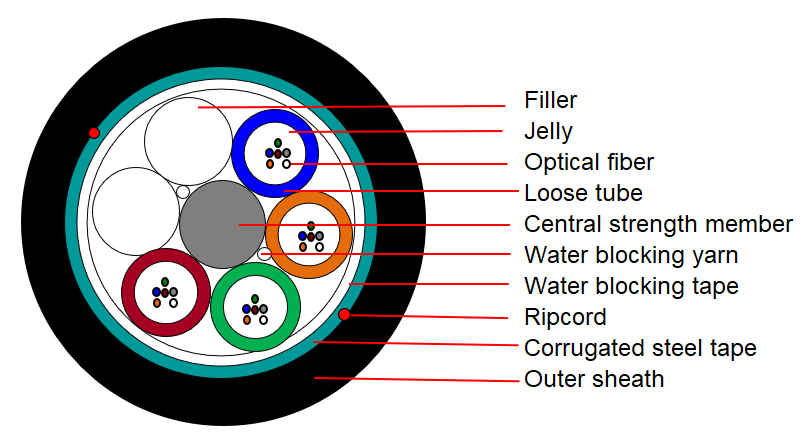

Standard loose tube containing fibers and filled with fiber jelly
Gel-filing loose tube, dry core
FRP for central strength element with no bonding
Corrugated steel tape armored
UV resistance PE outer sheath
Experience our high-performance fiber optic cables—where speed meets reliability. Engineered for ultra-fast data transmission, these durable cables deliver exceptional signal integrity with low attenuation and resistance to interference. Perfect for diverse environments, from data centers to outdoor setups, they ensure seamless connectivity for today's high-bandwidth demands. Future-ready, easy to install, and built to last.
| Fiber Count |
24 F |
![]() |
||
| Fiber Per Tube | 6 F | |||
| NO. of Tube/Filler | 4/2 | |||
| Loose Tube | Material | PBT | ||
| Water Blocking Material | Fiber jelly | |||
| Cable cCore Water Blocking Material | Water blocking yarn+ Water blocking tape | |||
| Central Strength Member | FRP | |||
| Armor | Corrugated steel tape | |||
| Outer Sheath Material | PE | |||
| Attenuation | At 1310nm (SM) | ≤0.35 dB/km | ||
| At 1550nm (SM) | ≤0.21 dB/km | |||
| Tensile Strength | Short Term | 1500 N | |
| Long Term | 600 N | ||
| Crush | Short Term | 1000 N/100mm | |
| Long Term | 300 N/100mm | ||
| Min. Bending Radius | Static | 10D mm | |
| Dynamic | 20D mm | ||
| Attenuation | At 1310nm (SM) | ≤0.35 dB/km | |
| At 1550nm (SM) | ≤0.21 dB/km | ||
| NO. | 1 | 2 | 3 | 4 | 5 | 6 | |
| Color | Blue | Orange | Green | Brown | Grey | White | |
| NO. | 7 | 8 | 9 | 10 | 11 | 12 | |
| Color | Red | Black | Yellow | Violet | Pink | Aqua | |
| Operation Temperature | -40 to +70 ℃ | |
| Installation Temperature | -20 to +60 ℃ | |
| Storage Temperature | -40~+70 ℃ | |
| 2011/65/EC (RoHS) | Compliant | |
