High performance and reliability
Wideband performance
Laser technology with high linearity
Low optical transmission loss
Support up to 8 remotes from one single NEU
Management via OMT or NMS management software
Utilizes hybrid DC/Fiber feed to provide signal and DC power for each IRU-O remote

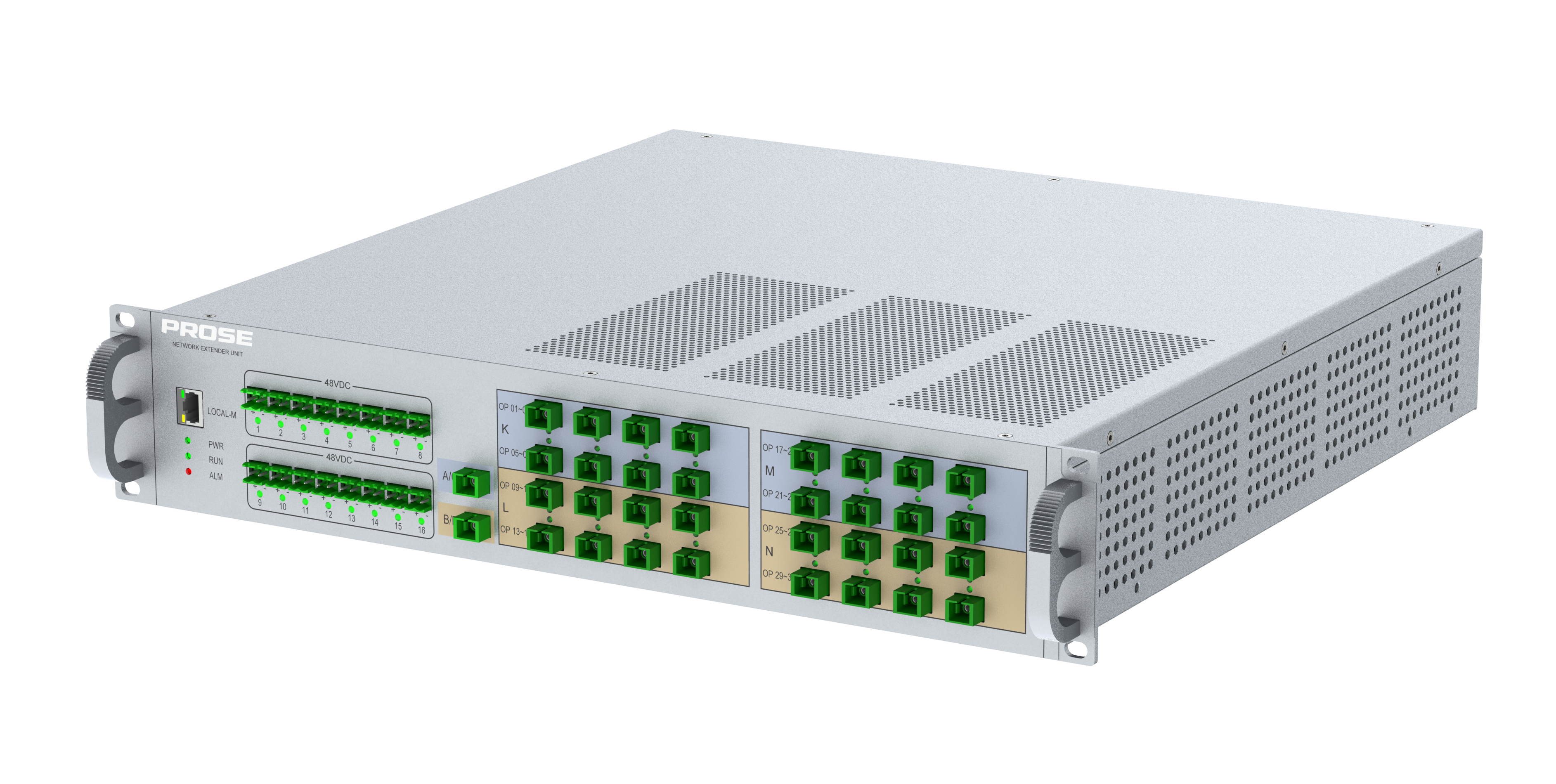

690-4000MHz, 2T2R, 2-32 optical ports, AC220V, Wall/Cabinet mounted
| Uplink | Downlink | ||
| Frequency Range | 690 - 4000 MHz | 690 - 4000 MHz | |
| System Gain | 0 ± 2 dB | 0 ± 2 dB | |
| Optical Output Power | 9 ± 1 dBm (O/P) | 0 ± 1 dBm (O/P) | |
| Operating Temperature Range | -10°C to +45°C |
| Storage Temperature Range | -40°C to +85°C |
|
Relative Humidity |
10% - 95% |
|
Ingress Protection |
IP40 for indooor |
| Monitoring and Control | LAN-RJ45 (local) |
| Cooling | Nature cooling |
| Fiber Optical Connectors | 32 x SC/APC (to IRU) | |
| 2 x SC/APC (to IM2U/PBMU) | ||
| Mounting | Wall or rack | |
