Module Design
4T4R
eCPRI

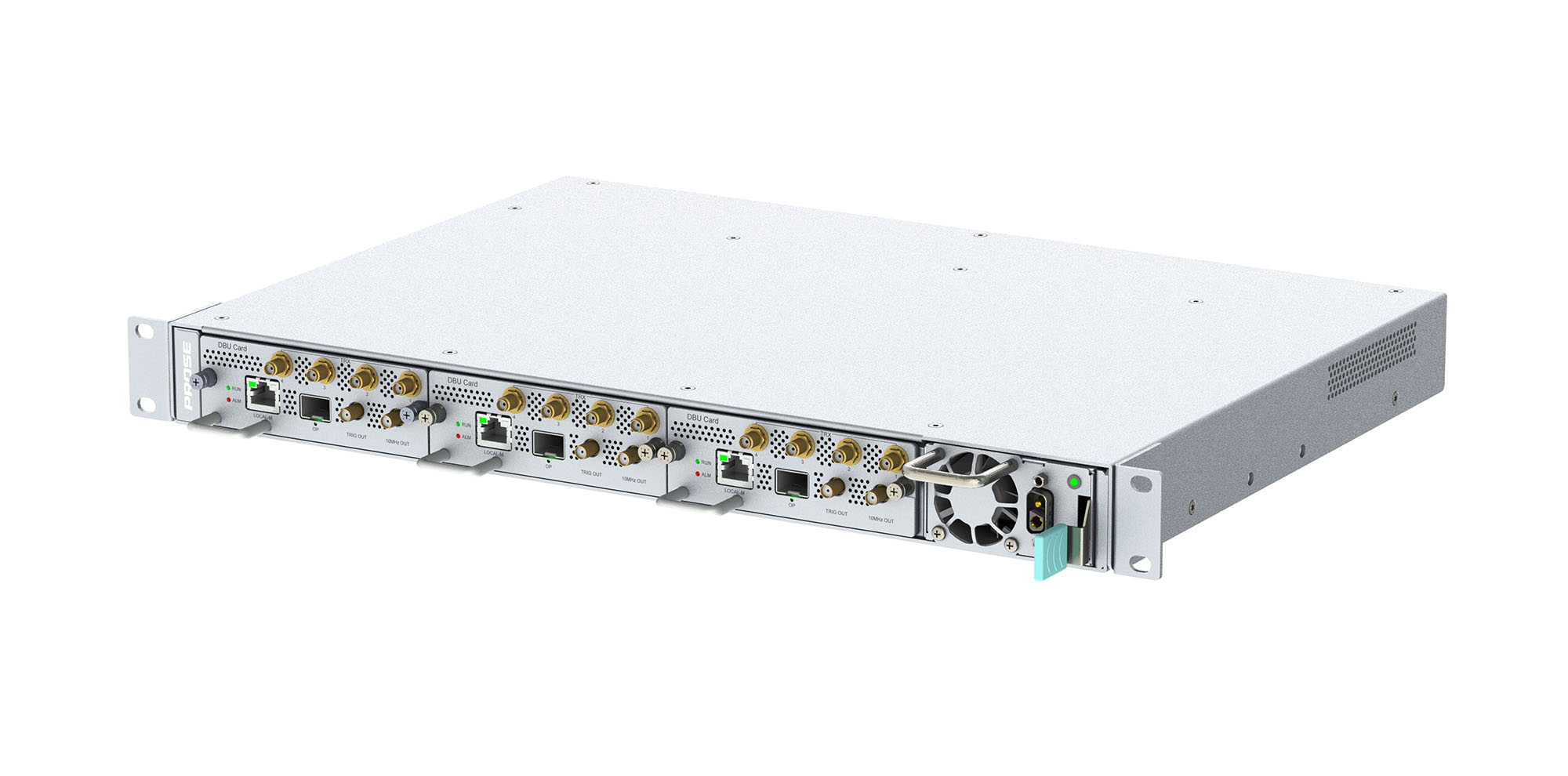

DBU is a module deisgn indoor RRU product, one DBU cabinet can instanll up tp 3 pcs DBU card, each DBU card can support one band. It's flexible to match the site design and different operator/band combination. Since it's customized product, for more details, please contrat with PROSE.
| Frequency | B1, B3, B7, B8, B20, B28, B40, B41/N41, N78 |
| Mode | LTE/NR |
| RF Output Power | 4x20dbm (per card) |
| Power Supply | -48V DC(-36V~-57V) |
| ORAN Split Option | Split option 7-2x |
| Data Rate of Front Haul | Max. 10.3125Gbps |
| Noise Figure(typical) | < 3dB |
| 3GPP Compliant | TS38.104, TS38.141 |
| Operating Temperature | 0°C to +45°C |
| Relative Humidity | 5% RH to 95% RH |
| Heat dissipation | Forced air cooling |
| Ingress Protection (IP) Rating | IP20 |
| Size | 19 inch / 1U |
| RF Connectors | 4xQMA Female (per card) |
