Low VSWR, low insertion loss, low PIM
High ports isolation, high reliability
Stable power handling
Compact design for easy installation
Customized connector is available
Optional DC bypass

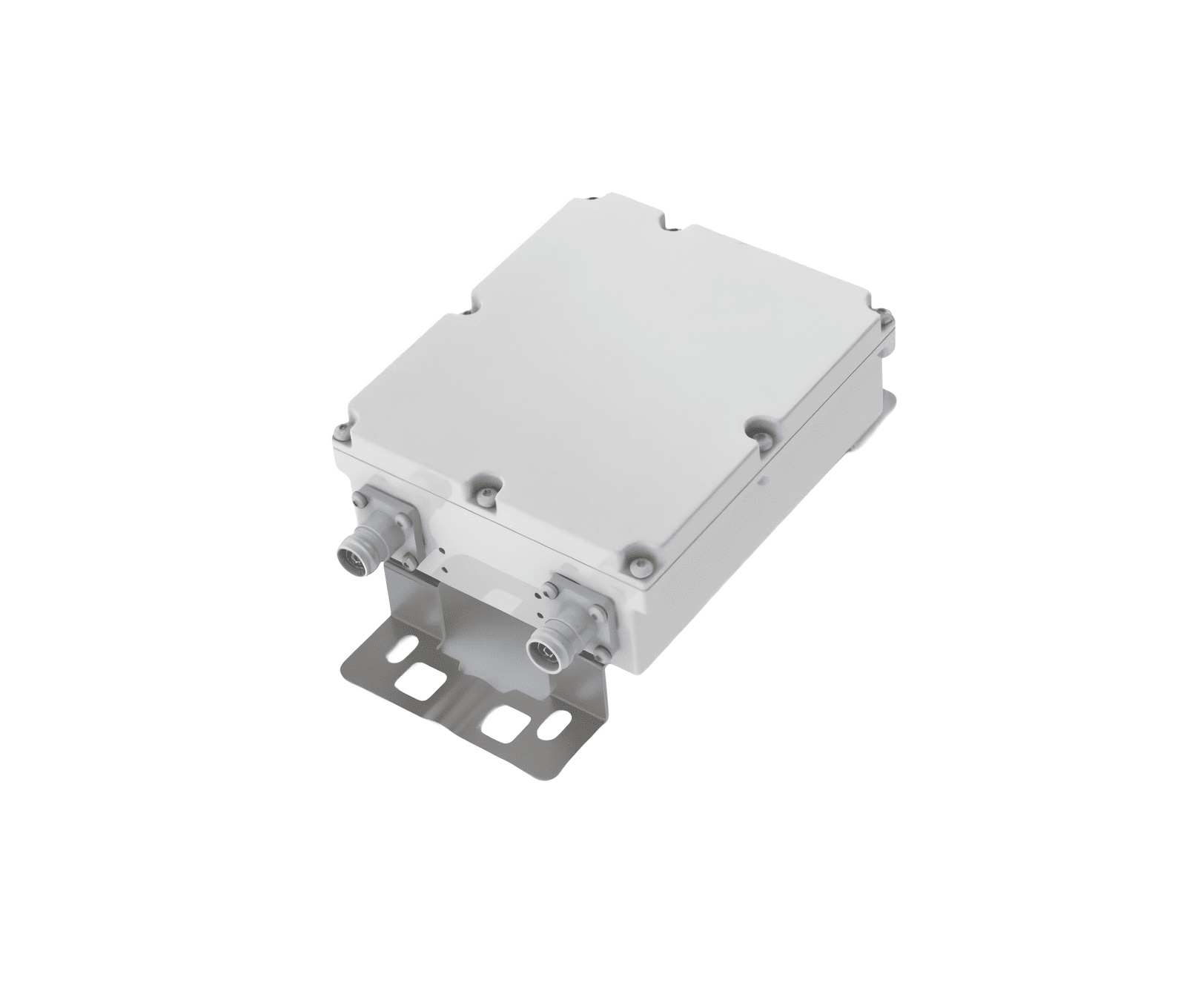

Indoor DAS combiner is a multi port passive device mainly used for multi system combining in indoor DAS systems. According to different application scenarios, it can support up to 7 system combinations. This product series has excellent electrical performance indicators, high protection level, and high reliability. It is widely used in the deployment of various distributed antenna systems.
| Frequency | 694-862/880-960 MHz |
| Return Loss / VSWR | ≤-19 dB/1.25 |
| Insertion Loss | ≤0.3 dB |
| Isolation | ≥50 dB |
| Power Handling | 250 W |
| Intermodulation (3rd Order) | ≤-155 dBc@2x43dBm |
| DC Characteristic | DC Bypass for All Ports |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | IP67 |
| Dimension | 205 x171 x56.5 (mm) |
| Weight | 3 kg |
| Connectors Type | 4.3-10 female |
| Packing | 1Pcs in box |
