Meets ISO/IEC 11801:2008, ANSI/TIA-568-C. 2, IEC 61156-5 requirements.

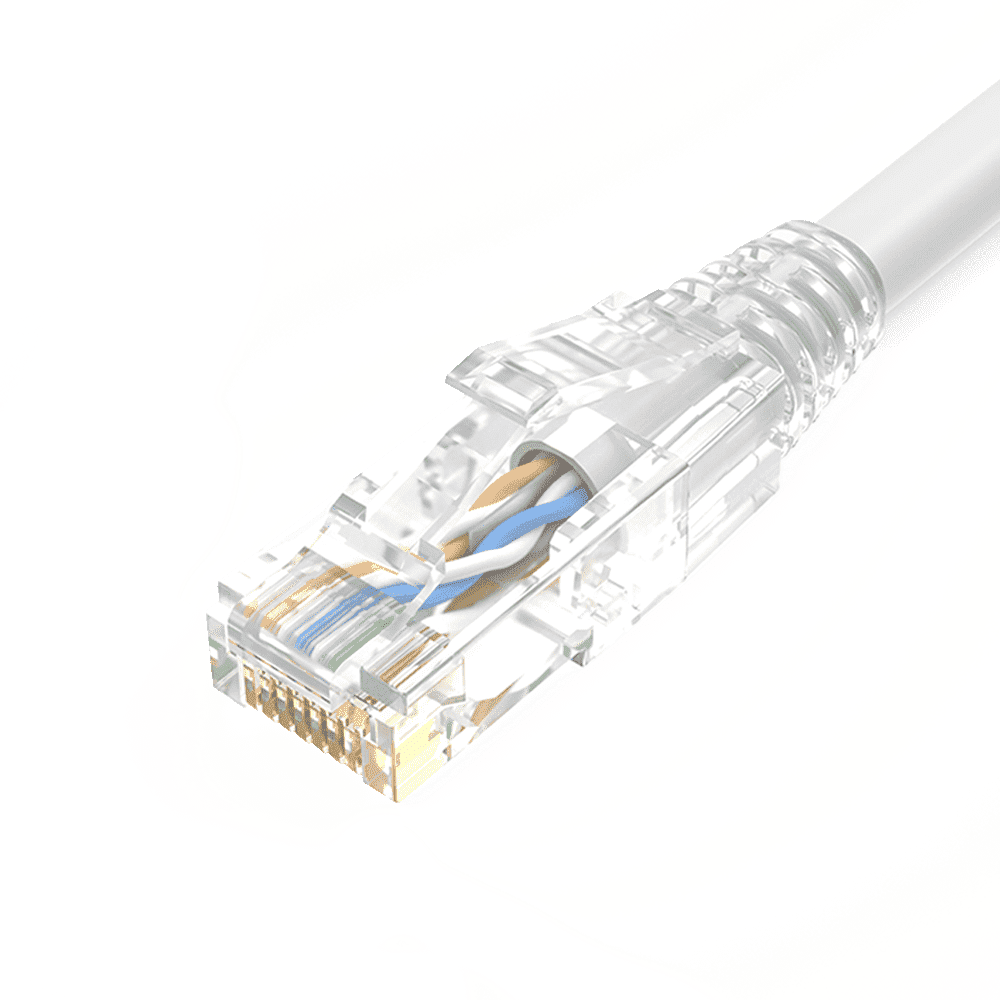

360° over-molded boot protects cable and improves durability.
50μ” gold plating reduces resistance and ensures reliable signal transmission.
Supports high bandwidth and reduces signal interference.
Multiple colors available for easy network management.

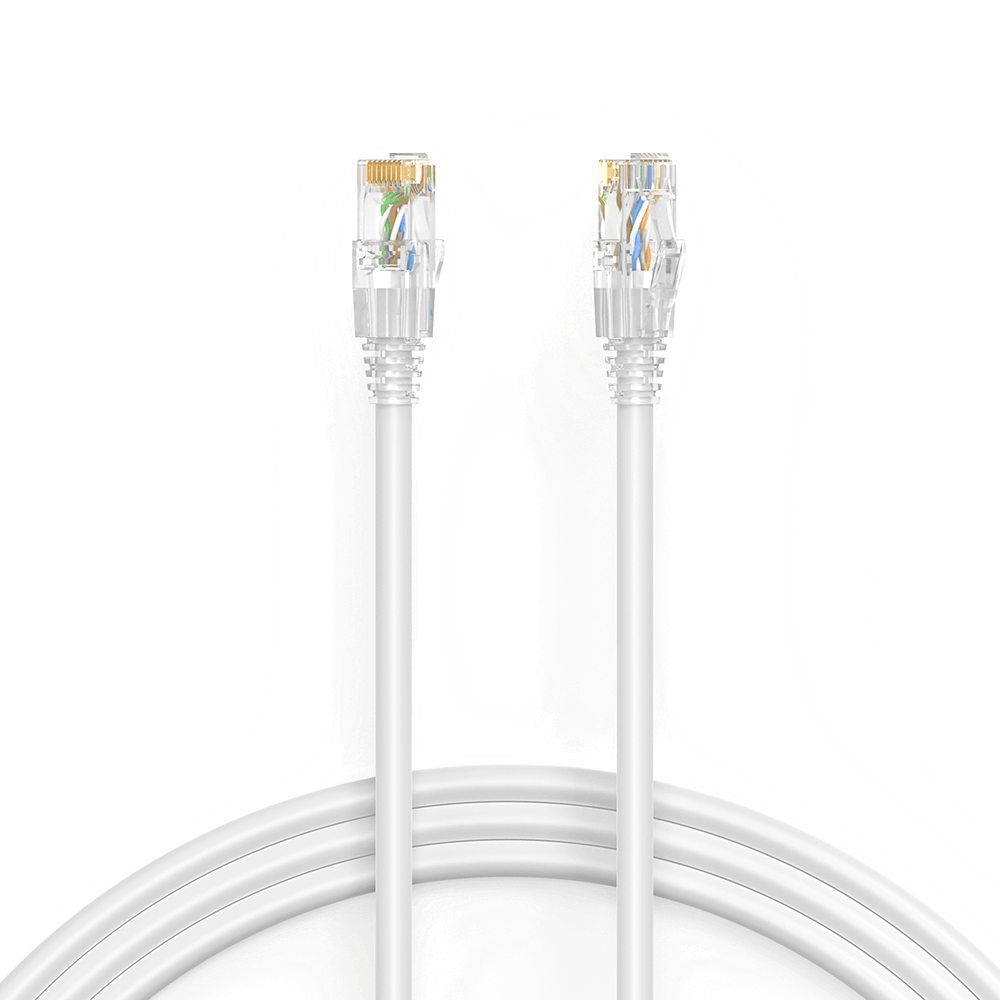

PROSE Cat6 copper patch cords are designed for reliable high-speed data transmission in enterprise networks and data centers. Compliant with international standards, Exceeding the specification of ANSI/TIA-568.2-D Category 6 requirements. They ensure stable connectivity, low signal loss, and flexible deployment across various structured cabling environments.
| Items | Parameters |
| Category | Cat.6 |
| Conductor Type | Stranded copper wire: 24AWG. 26AWG, 28AWG are optional. |
| External Dimensions (Unshielded,24AWG) | Cat6:6.2±0.2mm |
| External Dimensions (Shielded,26AWG) | Cat6:6.2±0.2mm |
| Conductor Paris | 4 Pairs |
| Connector Type | RJ45-RJ45 |
| Connector Contact Material | Copper alloy with contact plating of 50μ''gold |
| Cable Structure | U/UTP, F/UTP,U/FTP, S/FTP are optional. |
| Jacket Material | PVC CM, LSZH,PVC |
| Jacket Color | Blue, Orange, Grey, Purple, Red, White, etc. Other colors can be customized. |
| Material | Bare copper (99.99%) |
| Connector | 8P8C |
| Storage Temperature | 0 to +50℃ |
| Operating Temperature | -10℃ to +60℃ |
| Frequency (MHz) |
NEXT (dB) | RL (dB) |
||
| 2m Cord | 5m Cord | 10m Cord | ||
| 1 | 65.0 | 65.0 | 65.0 | 19.8 |
| 4 | 65.0 | 65.0 | 65.0 | 21.6 |
| 8 | 65.0 | 65.0 | 64.8 | 22.5 |
| 10 | 65.0 | 64.5 | 62.9 | 22.8 |
| 16 | 62.0 | 60.5 | 59.0 | 23.4 |
| 20 | 60.1 | 58.6 | 57.2 | 23.7 |
| 25 | 58.1 | 56.8 | 55.4 | 24.0 |
| 31.25 | 56.2 | 54.9 | 53.6 | 23.0 |
| 62.5 | 50.4 | 49.2 | 48.1 | 20.0 |
| 100 | 46.4 | 45.3 | 44.4 | 18.0 |
| 125 | 44.5 | 43.5 | 42.7 | 17.0 |
| 150 | 43.0 | 42.1 | 41.4 | 16.2 |
| 175 | 41.8 | 40.9 | 40.2 | 15.5 |
| 200 | 40.6 | 39.8 | 39.3 | 15.0 |
| 225 | 39.7 | 38.9 | 38.4 | 14.5 |
| 250 | 38.8 | 38.1 | 37.6 | 14.0 |
