Meets ISO/IEC 11801:2008, ANSI/TIA-568-C. 2, IEC 61156-5 requirements.
360° over-molded boot protects cable and improves durability.
50μ” gold plating reduces resistance and ensures reliable signal transmission.
Supports high bandwidth and reduces signal interference.
Multiple colors available for easy network management.

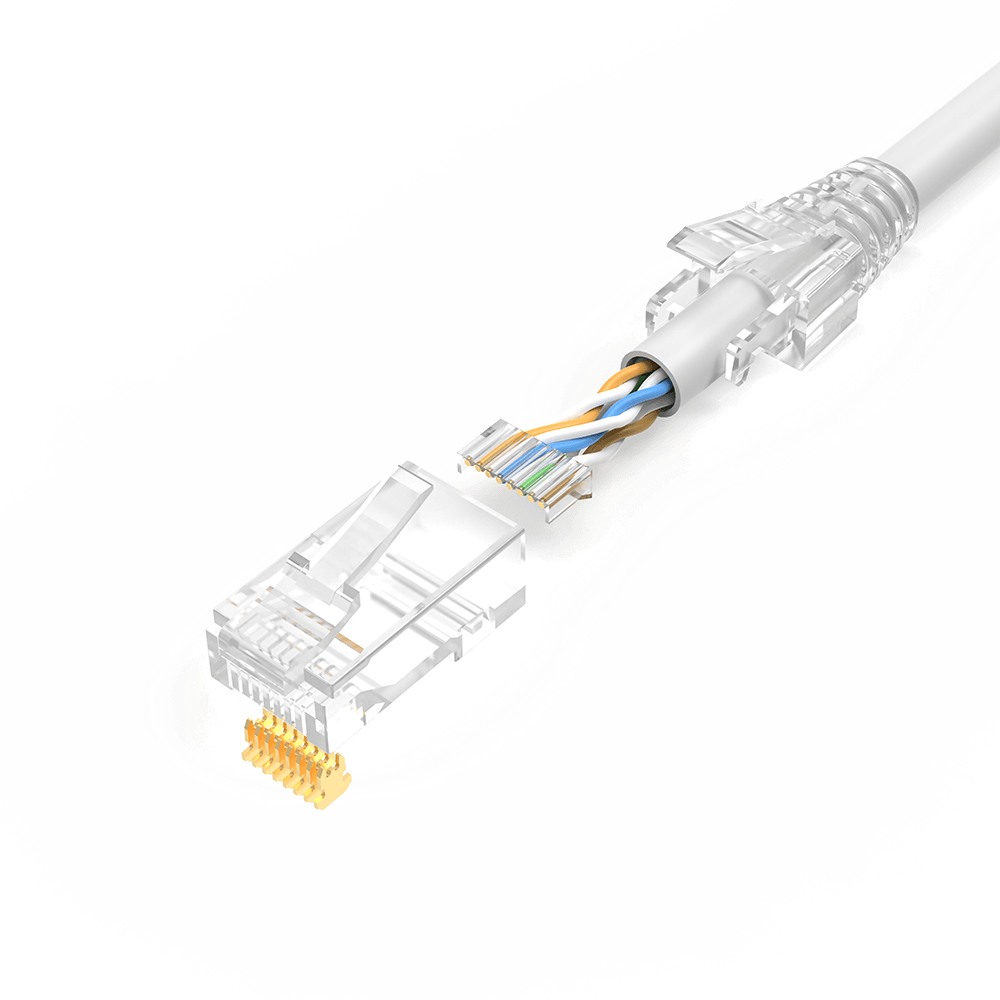

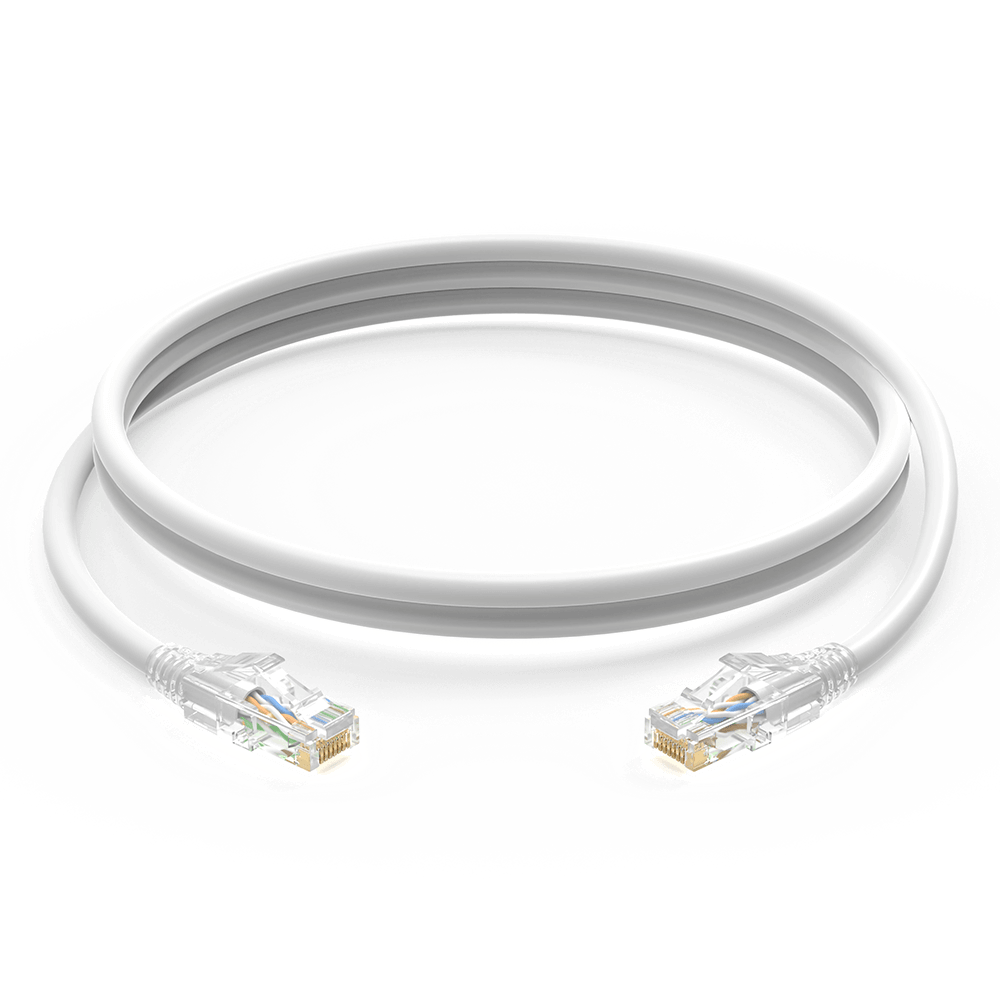

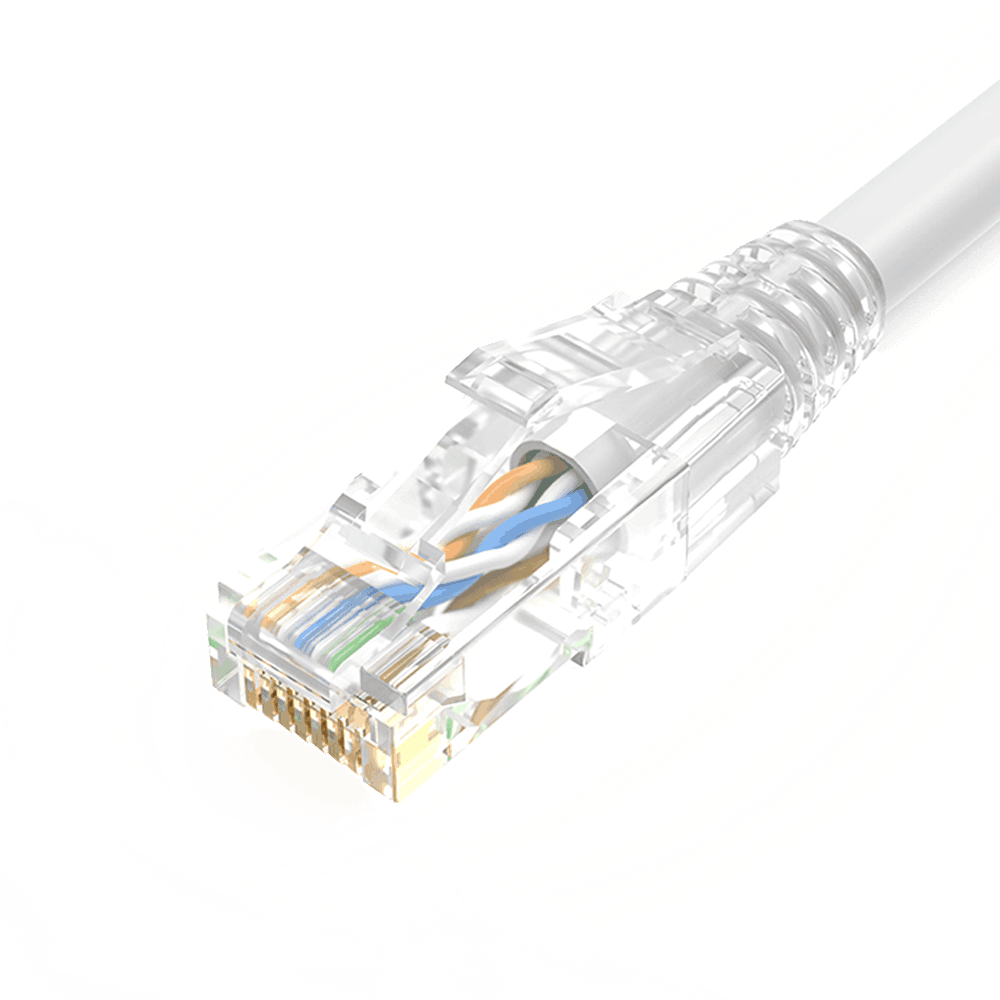

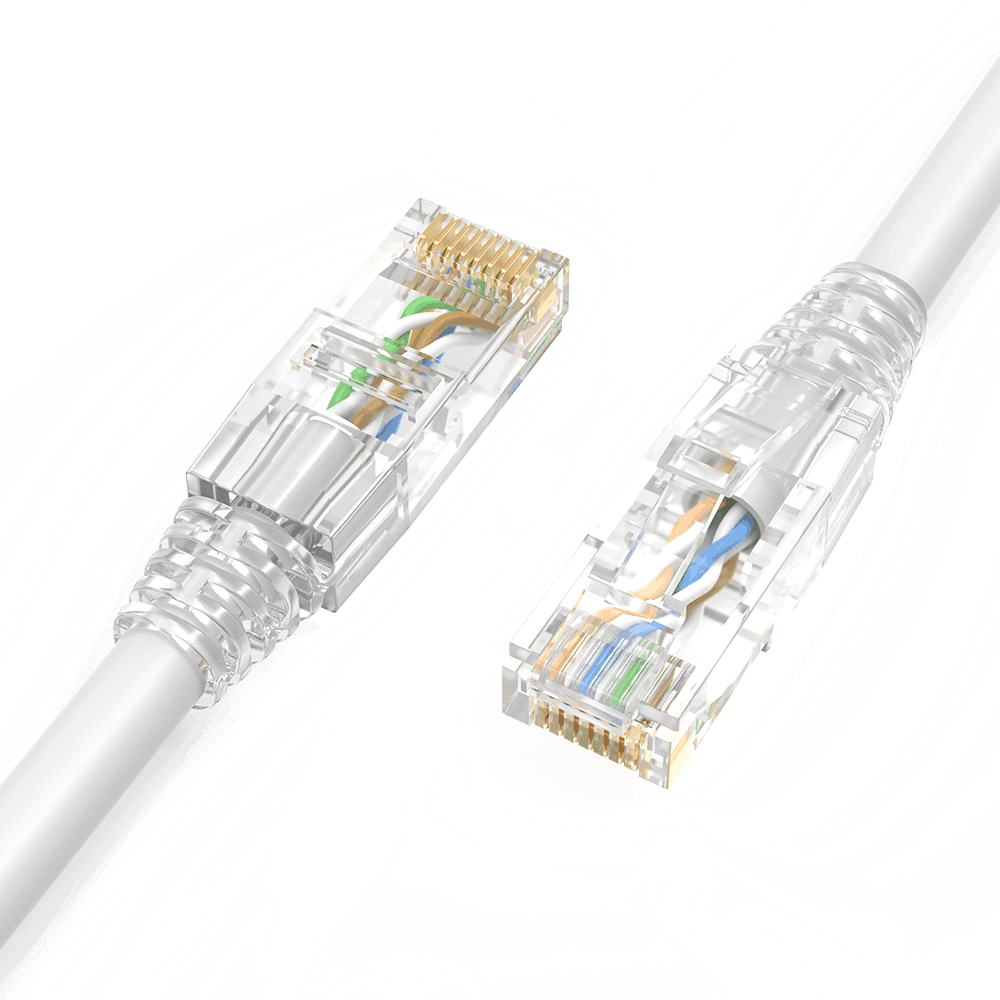

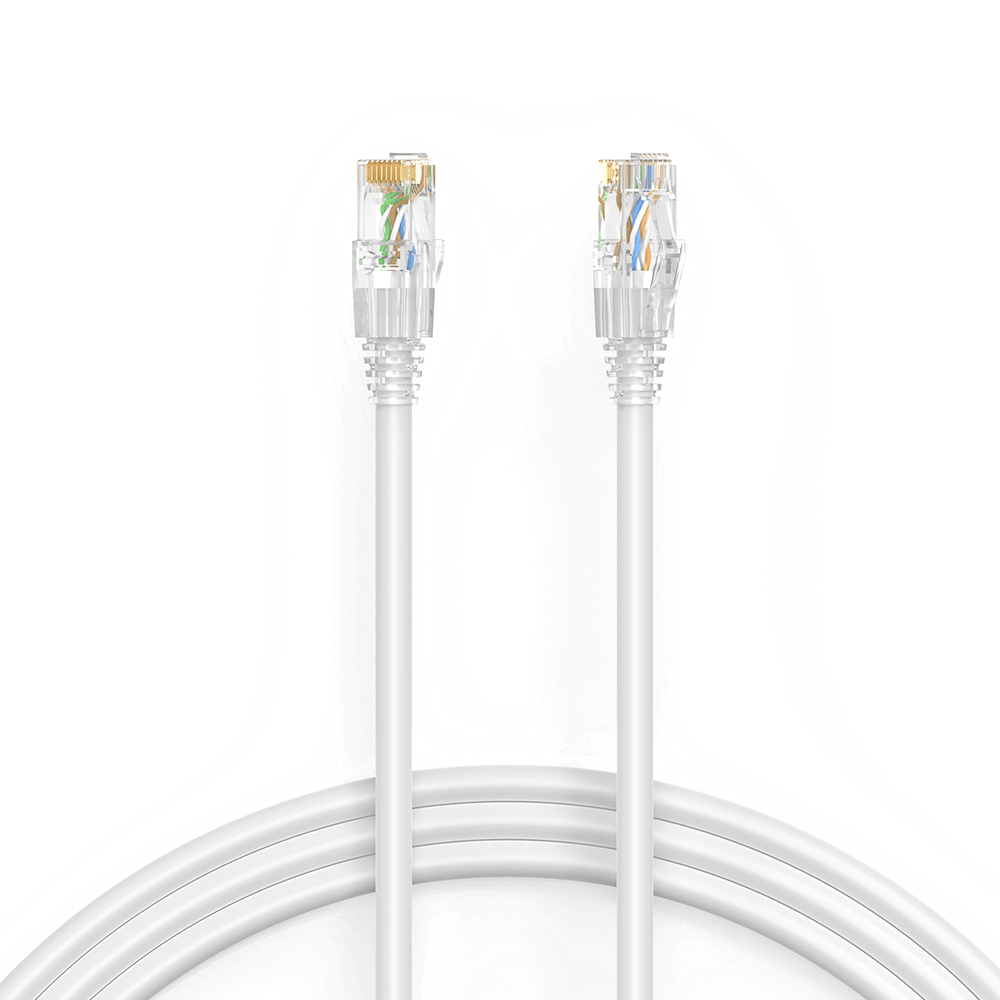

PROSE Cat5e copper patch cords are designed for reliable data transmission in LAN environments, supporting high-speed connectivity up to Gigabit Ethernet. Engineered for stable performance and cost efficiency, they are ideal for office networks, commercial buildings, and general structured cabling applications.
| Items | Parameters |
| Category | Cat.5e |
| Conductor Type | Stranded copper wire: 24AWG. 26AWG, 28AWG are optional. |
| External Dimensions (Unshielded,24AWG) | Cat5e:5.5±0.2mm; |
| External Dimensions (Shielded,26AWG) | Cat5e:5.8±0.2mm |
| Conductor Paris | 4 Pairs |
| Connector Type | RJ45-RJ45 |
| Connector Contact Material | Copper alloy with contact plating of 50μ'' gold |
| Cable Structure | U/UTP, F/UTP,U/FTP, S/FTP are optional. |
| Jacket Material | PVC CM, LSZH,PVC |
| Jacket Color | Blue, Orange, Grey, Purple, Red, White, etc. Other colors can be customized. |
| Material | Bare copper (99.99%) |
| Connector | 8P8C |
| Storage Temperature | 0 to +50℃ |
| Operating Temperature | -20℃ to +60℃ |
| Frequency (MHz) |
NEXT (dB) | RL (dB) | ||
| 2m Cord | 5m Cord | 10m Cord | ||
| 1 | 65.0 | 65.0 | 65.0 | 19.8 |
| 4 | 62.3 | 61.5 | 60.4 | 21.6 |
| 8 | 56.4 | 55.6 | 54.7 | 22.5 |
| 10 | 54.5 | 53.7 | 52.8 | 22.8 |
| 16 | 50.4 | 49.8 | 48.9 | 23.4 |
| 20 | 48.6 | 47.9 | 47.1 | 23.7 |
| 25 | 46.7 | 46 | 45.3 | 24.0 |
| 31.25 | 44.8 | 44.2 | 43.6 | 23.0 |
| 62.5 | 39 | 38.5 | 38.1 | 20.0 |
| 100 | 35.1 | 34.8 | 34.6 | 18.0 |
