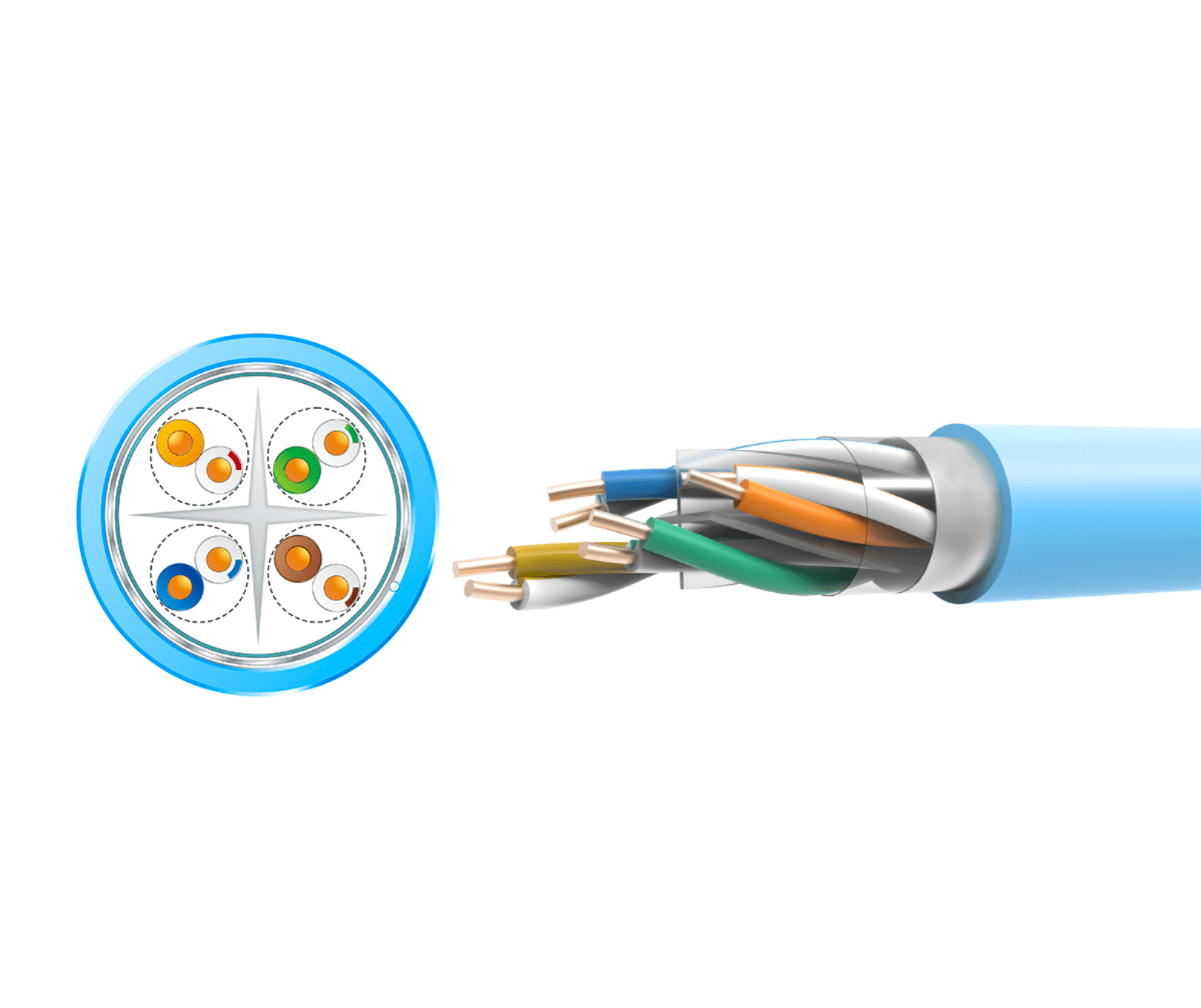

PROSE indoor CAT6A UTP cable are designed for unshielded cabling system.
PROSE Category 6A cables meet and exceed the requirements of ISO/IEC11801, ANSI/TIA-568-C.2.
PROSE povides different jacket material including CMX, CM, CMR, CMP, LSZH for different applications.
Complies with ISO/IEC 11801-1, IEC 61156-5, and ANSI/TIA-586.2-D standards.
Halogen emission complies with IEC 60754-2; smoke density complies with IEC 61034-2; single vertical flame propagation complies with IEC 60332-1.
Supports 10GBase-T transmission and is backward compatible.
Verified through third-party (link-channel) multi-node certification.
Optimized high-speed cable pitch design and skin insulation process significantly improve transmission performance, including crosstalk and return loss.
Shielded design enhances anti-interference performance and ensures stable data transmission.

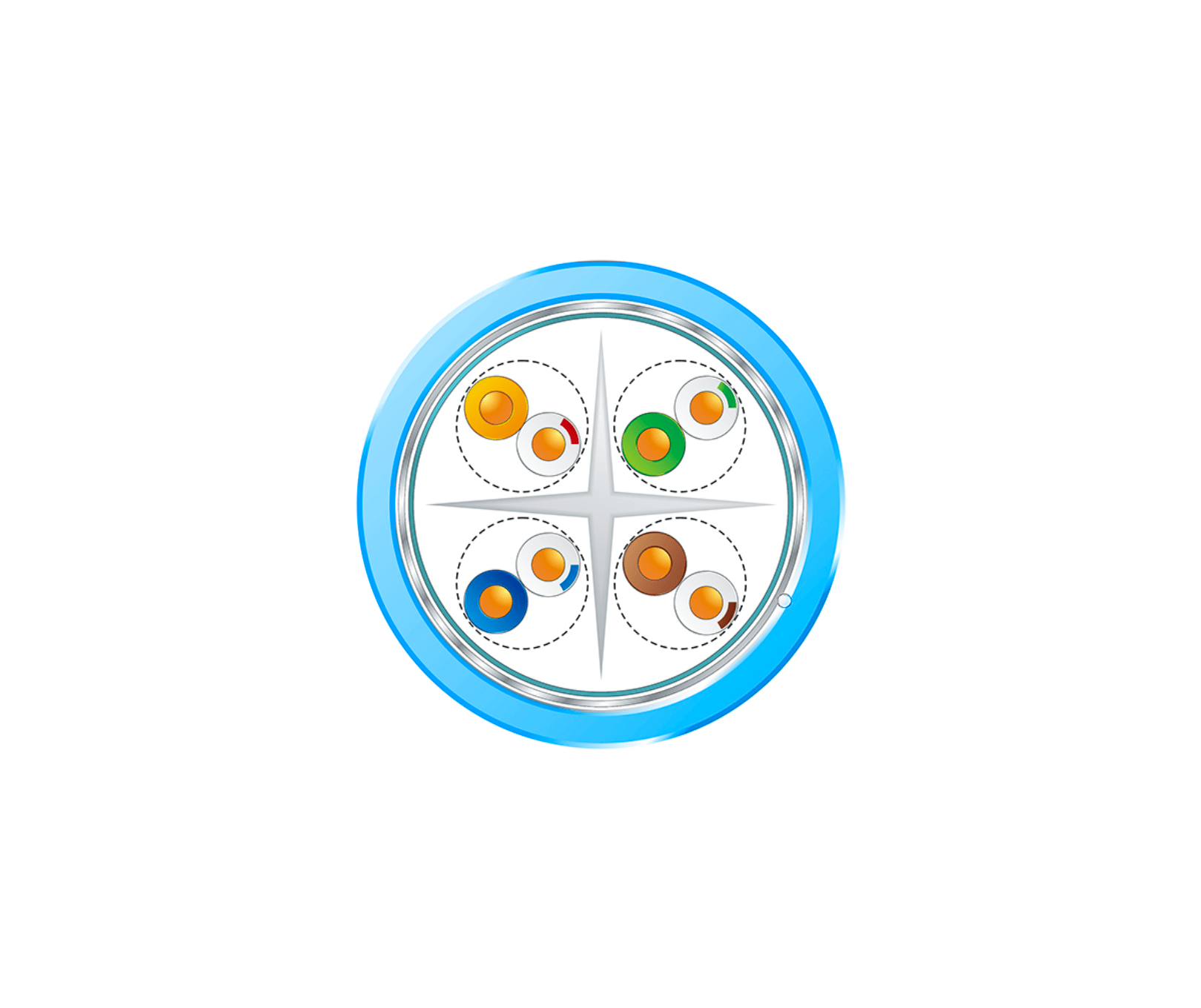

| Construction | 4×2×23AWG |
| Conductor O.D | 0.565±0.01mm(PVC,CM), 0.565±0.005mm(LSZH) |
| Insulation 1 Material | PE |
| Insulation 1 Diameter | 1.10±0.08mm(PVC, LSZH), 1.12±0.05mm(CM) |
| Insulation 2 Material | PE |
| Insulation 2 Diameter | 1.20±0.08mm(PVC, LSZH), 1.16±0.08mm(CM) |
| Sheath Thickness | 0.50±0.05 mm |
| Nominal Diameter | 7.3±0.5 mm |
| Surface | Clean, Frap, Satiation |
| Sheath | PVC,CM,LSZH |
| Sheath Colour | Grey(PVC), Blue(PVC CM), Orange(LSZH), Purple, Red, White, etc, other colour is customized |
| Leight | 305+1.5m |
| Frequency(MHz) |
RL (dB) |
ATT (dB) |
NEXT (dB) |
PSNEXT (dB) |
ELFEXT (dB) |
PSELFEXT (dB) |
PSANEXT (dB) |
PSAACRF (dB) |
| Min. | Max. | Min. | Min. | Min. | Min. | Min. | Min. | |
| 1.0 | 20.0 | - | 74.3 | 72.3 | 67.8 | 64.8 | 67.0 | 67.0 |
| 4.0 | 23.0 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 67.0 | 66.2 |
| 8.0 | 24.5 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 67.0 | 60.1 |
| 10.0 | 25.0 | 5.9 | 59.3 | 57.3 | 47.8 | 44.8 | 67.0 | 58.2 |
| 16.0 | 25.0 | 7.5 | 56.2 | 54.2 | 43.7 | 40.7 | 67.0 | 54.1 |
| 20.0 | 25.0 | 8.4 | 54.8 | 52.8 | 41.8 | 38.8 | 67.0 | 52.2 |
| 25.0 | 24.3 | 9.4 | 53.3 | 51.3 | 39.8 | 36.8 | 67.0 | 50.2 |
| 31.25 | 23.6 | 10.5 | 51.9 | 49.9 | 37.9 | 34.9 | 67.0 | 48.3 |
| 62.5 | 21.5 | 15.0 | 47.4 | 45.4 | 31.9 | 28.9 | 65.6 | 42.3 |
| 100.0 | 20.1 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 62.5 | 38.2 |
| 200 | 18.0 | 27.6 | 39.8 | 37.8 | 21.8 | 18.8 | 58.0 | 32.2 |
| 250 | 17.3 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 56.5 | 30.2 |
| 300 | 16.8 | 34.3 | 37.1 | 35.1 | 18.3 | 15.3 | 55.3 | 28.7 |
| 400 | 15.9 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 53.5 | 26.2 |
| 500 | 15.2 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 52.0 | 24.2 |
| Before Aging Tensile Strength | ≥13.5 Mpa(PVC,CM), ≥10Mpa(LSZH) |
| Before Aging Elongation | ≥150%(PVC,CM), ≥125%(LSZH) |
| Aging Period | 100℃×24h×7d |
| After Aging Tensile Strength | ≥12.5 Mpa(PVC,CM), ≥8.0 Mpa(LSZH) |
| After Aging Elongation | ≥125%(PVC,CM), ≥100% (LSZH) |
| Cold bend(-20±2℃×4h) | 8×Cable O.D., No visible cracks |
| Impedance | 100±15Ω (1-250MHZ), 100±22Ω(250-500MHz) |
| Delay Skew | ≤45ns (1-500MHZ) |
| DC Resistance | ≤9.38Ω/100m |
| Unbalanced Resistance | ≤5% |
| Unbalance Capacitance | ≤330pF/100m |
| Capacitance | ≤5.4nF/100m |
| Dielectric Strength | DC 1kv (3s No Fail) |
| Insulation Resistance | ≥5000MΩ·km |
| Bending Radius | |
| During installation (min.) | 8×outer diameter |
| Installed (min.) | 4×outer diameter |
| Temperature Range | |
| During installation | 0℃ to +50℃ |
| Installed | -20℃ to +60℃ |
