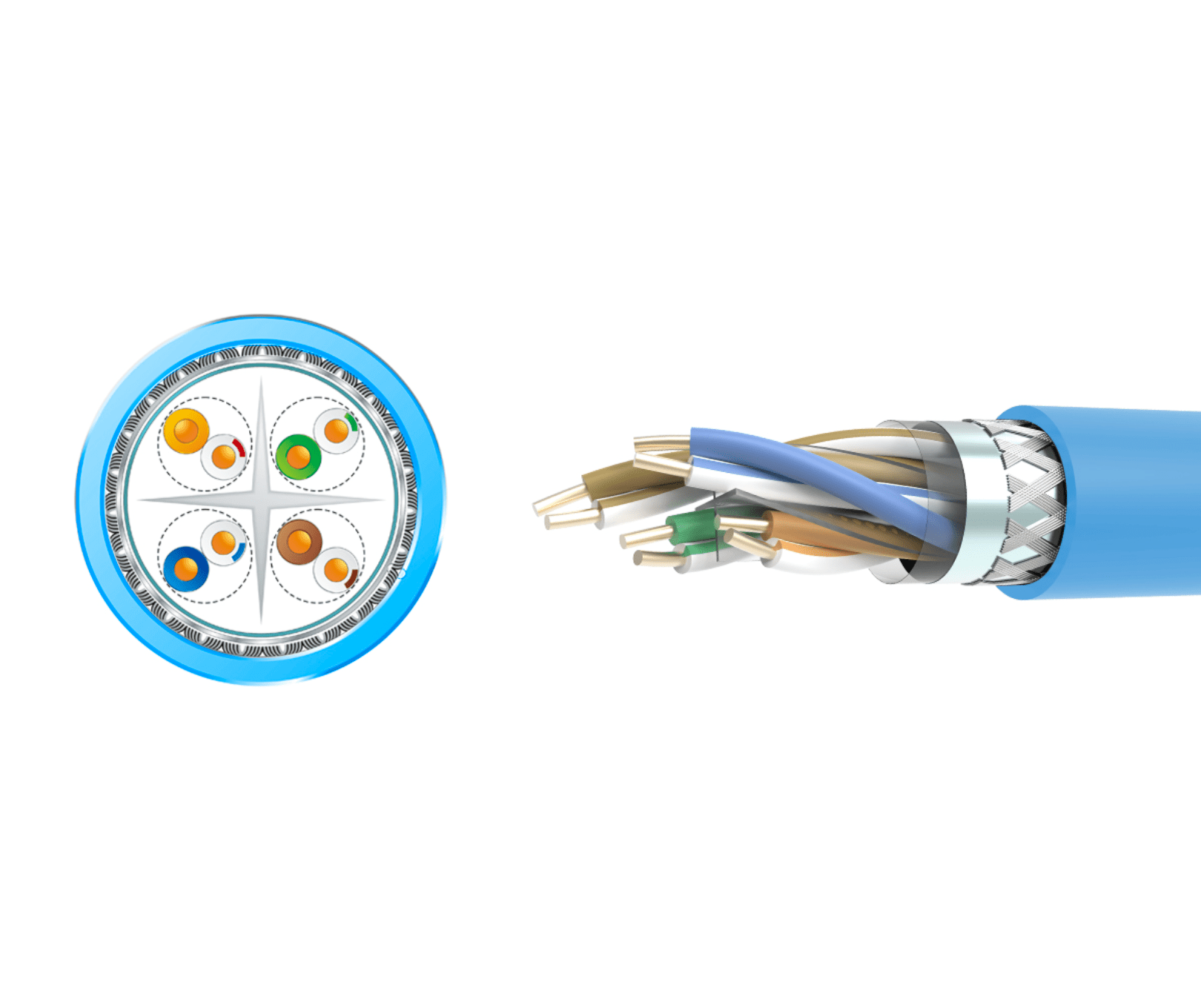

PROSE indoor CAT6 SF/UTP cables are designed for shielded structured cabling system.
PROSE Category 6 indoor cables meet and exceed the requirements of ISO/IEC11801、ANSI/TIA-568.2-D.
PROSE provides different jacket materials including PVC, CM, CMR, CMP and LSZH for different applications.
Complies with ISO/IEC 11801-1, IEC 61156-5, ANSI/TIA-586.2-D, and GB/T 18015.5 standards.
Supports 1000Base-T transmission and is backward compatible.
Verified by an authorized third-party laboratory, with multi-node link-channel certification.
High-quality copper conductors ensure excellent tensile strength and stable electrical performance.

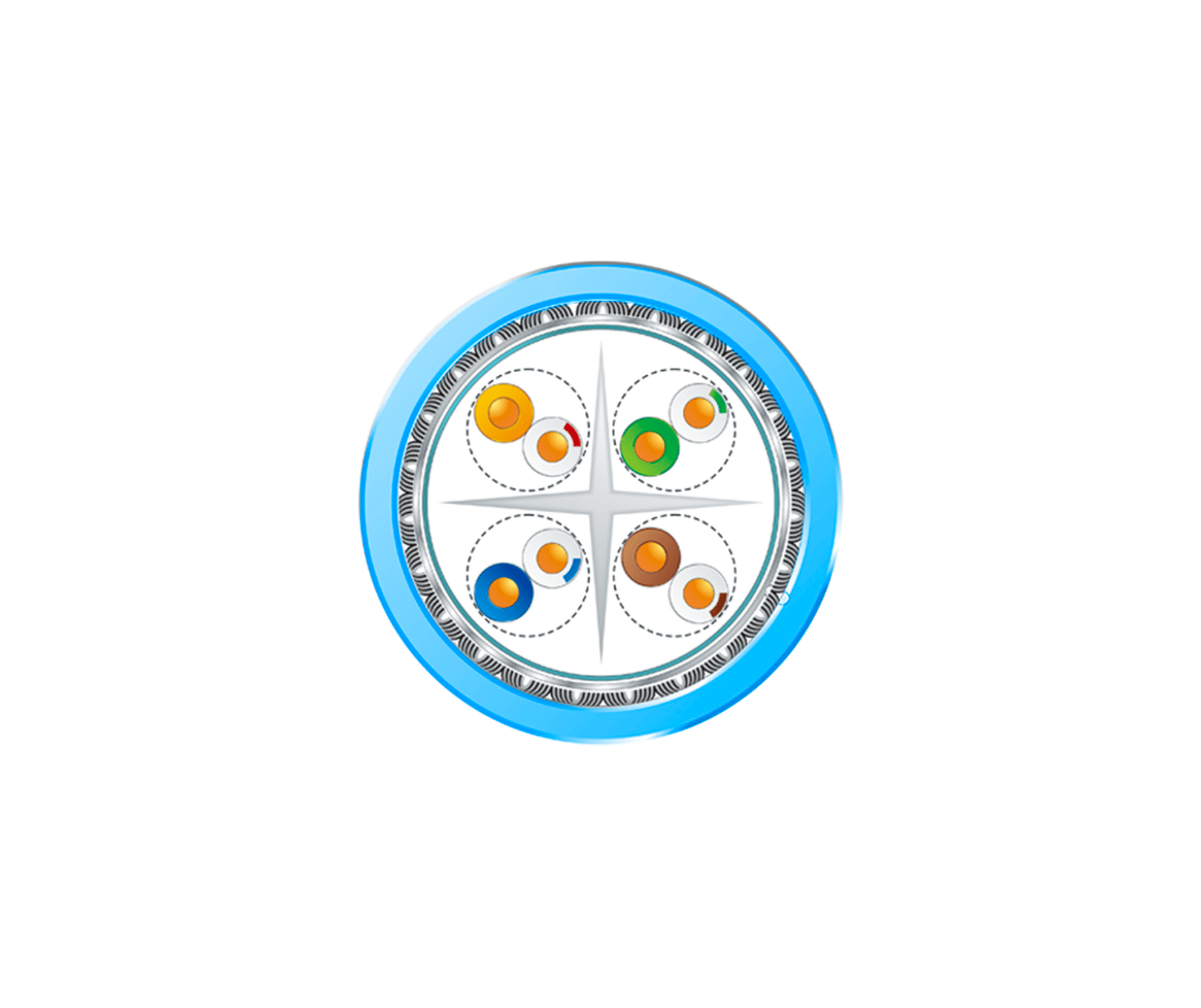

| Construction | 4×2×23AWG |
| Conductor O.D | 0.565±0.005mm |
| Insulation Material | HDPE |
| Insulation Diameter | 1.12±0.05mm(PVC,CM), 1.12±0.08mm(LSZH) |
| Sheath Thickness | 0.55±0.05 mm |
| Nominal Diameter | 7.8±0.4 mm |
| Surface | Clean, Frap, Satiation |
| Sheath | PVC,CM,LSZH |
| Sheath Colour | Grey(PVC), Blue(PVC CM), Orange(LSZH), Purple, Red, White, etc, other colour is customized |
| Leight | 305+1.5m |
| Frequency(MHz) |
RL (dB) |
ATT (dB) |
NEXT (dB) |
Phase DELAY (ns) |
PSNEXT (dB) |
ELFEXT (dB) |
PSELFET (dB) |
| Min. | Max. | Min. | Max. | Min. | Min. | Min. | |
| 1.0 | 20.0 | - | 74.3 | 570.00 | 72.3 | 67.8 | 64.8 |
| 4.0 | 23.0 | 3.78 | 65.3 | 552..00 | 63.3 | 55.8 | 52.8 |
| 8.0 | 24.5 | 5.32 | 60.8 | 546.73 | 58.8 | 49.7 | 46.7 |
| 10.0 | 25.0 | 5.95 | 59.3 | 545.38 | 57.3 | 47.8 | 44.8 |
| 16.0 | 25.0 | 7.55 | 56.2 | 543.00 | 54.2 | 43.7 | 40.7 |
| 20.0 | 25.0 | 8.47 | 54.8 | 542.05 | 52.8 | 41.8 | 38.8 |
| 25.0 | 24.3 | 9.51 | 53.3 | 541.20 | 51.3 | 39.8 | 36.8 |
| 31.25 | 23.6 | 10.67 | 51.9 | 540.44 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.38 | 47.7 | 538.55 | 45.4 | 31.9 | 28.9 |
| 100.0 | 20.1 | 19.80 | 44.3 | 537.60 | 42.3 | 27.8 | 24.8 |
| 200.0 | 18.0 | 28.98 | 39.8 | 536.54 | 37.8 | 21.8 | 18.8 |
| 250.0 | 17.3 | 32.95 | 38.3 | 536.27 | 36.3 | 19.8 | 16.8 |
| Before Aging Tensile Strength | ≥13.5 Mpa(PVC,CM), ≥10Mpa(LSZH) |
| Before Aging Elongation | ≥150%(PVC,CM), ≥125%(LSZH) |
| Aging Period | 100℃×24h×7d |
| After Aging Tensile Strength | ≥12.5 Mpa(PVC,CM), ≥8.0 Mpa(LSZH) |
| After Aging Elongation | ≥125%(PVC,CM), ≥100% (LSZH) |
| Cold bend(-20±2℃×4h) | 8×Cable O.D., No visible cracks |
| Impedance | 100±15Ω (1-250MHZ) |
| Delay Skew | ≤45ns (1-250MHZ) |
| DC Resistance | ≤9.38Ω/100m |
| Unbalanced Resistance | ≤5% |
| Unbalance Capacitance | ≤330pF/100m |
| Capacitance | ≤5.4nF/100m |
| Dielectric Strength | DC 1kv (3s No Fail) |
| Insulation Resistance | ≥5000MΩ·km |
| Bending Radius | |
| During installation (min.) | 8×outer diameter |
| Installed (min.) | 4×outer diameter |
| Temperature Range | |
| During installation | 0℃ to +50℃ |
| Installed | -20℃ to +60℃ |
