High grade tinned copper
Widely field application
Different size available
Simple operation and easy wiring
RoHS compliance

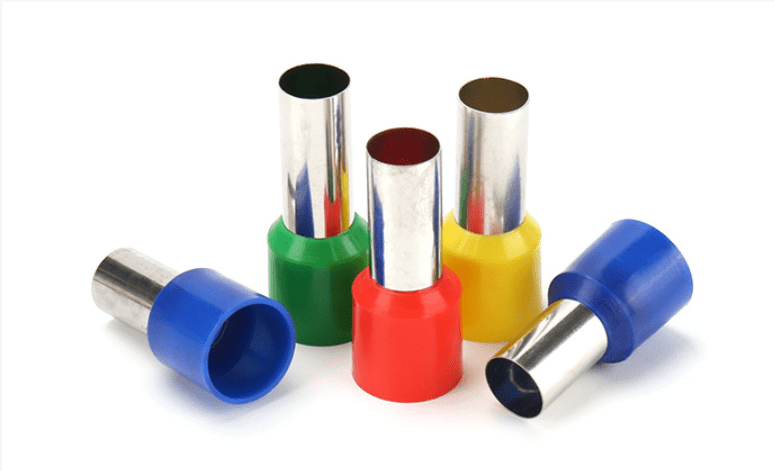

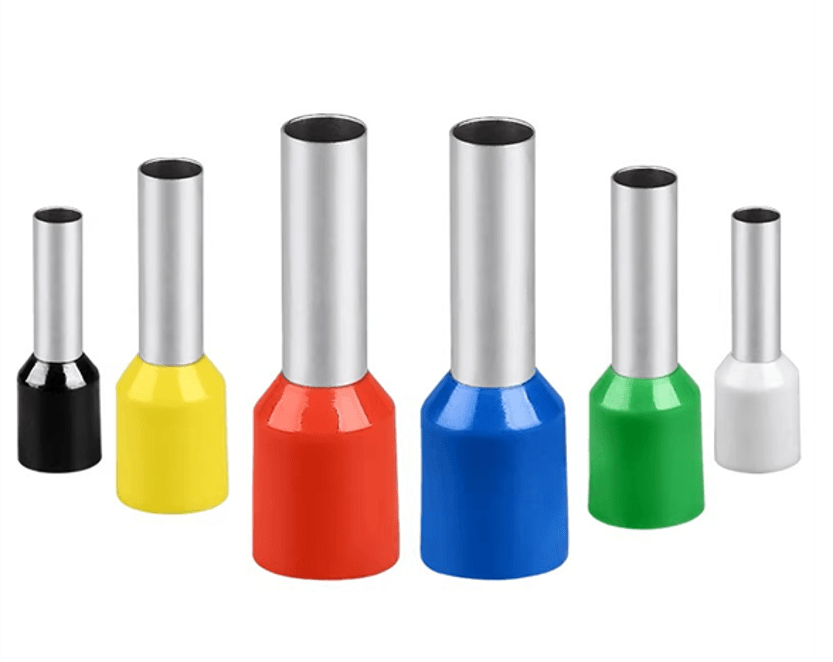

The cable lug is designed to prevent wire fray and to fit into ground terminals, or for flat surface grounding. Tinned copper provides enhanced conductivity and corrosion resistance.
| Material | Copper, T2 |
| Surface Finish | Tinned |
| Insulation | Nylon |

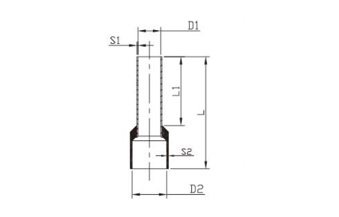

| PR-CLX-P2(X)-XX | Cable lug pipe type , pre insulated | |||
| PR | CLX | P2(X) | XX | |
| Default | Suitable cable dimension | Pipe length | Color | |
| Part Number | Wire size (mm) | Length (mm) | Description | ||||
| PR-CL0.5-P2(6)-XX | 0.5 | 6 | Cable lug pipe type, 0.5mm2, copper length 6mm | ||||
| PR-CL0.5-P2(8)-XX | 0.5 | 8 | Cable lug pipe type, 0.5mm2, copper length 8mm | ||||
| PR-CL0.5-P2(10)-XX | 0.5 | 10 | Cable lug pipe type, 0.5mm2, copper length 10mm | ||||
| PR-CL0.75-P2(6)-XX | 0.75 | 6 | Cable lug pipe type, 0.75mm2, copper length 6mm | ||||
| PR-CL0.75-P2(8)-XX | 0.75 | 8 | Cable lug pipe type, 0.75mm2, copper length 8mm | ||||
| PR-CL0.75-P2(10)-XX | 0.75 | 10 | Cable lug pipe type, 0.75mm2, copper length 10mm | ||||
| PR-CL0.75-P2(12)-XX | 0.75 | 12 | Cable lug pipe type, 0.75mm2, copper length 12mm | ||||
| PR-CL1-P2(6)-XX | 1.0 | 6 | Cable lug pipe type, 1.0mm2, copper length 6mm | ||||
| PR-CL1-P2(8)-XX | 1.0 | 8 | Cable lug pipe type, 1.0mm2, copper length 8mm | ||||
| PR-CL1-P2(10)-XX | 1.0 | 10 | Cable lug pipe type, 1.0mm2, copper length 10mm | ||||
| PR-CL1-P2(12)-XX | 1.0 | 12 | Cable lug pipe type, 1.0mm2, copper length 12mm | ||||
| PR-CL1.5-P2(8)-XX | 1.5 | 8 | Cable lug pipe type, 1.5mm2, copper length 8mm | ||||
| PR-CL1.5-P2(10)-XX | 1.5 | 10 | Cable lug pipe type, 1.5mm2, copper length 10mm | ||||
| PR-CL1.5-P2(12)-XX | 1.5 | 12 | Cable lug pipe type, 1.5mm2, copper length 12mm | ||||
| PR-CL1.5-P2(18)-XX | 1.5 | 18 | Cable lug pipe type, 1.5mm2, copper length 18mm | ||||
| PR-CL2.5-P2(8)-XX | 2.5 | 8 | Cable lug pipe type, 2.5 mm2, copper length 8mm | ||||
| PR-CL2.5-P2(10)-XX | 2.5 | 10 | Cable lug pipe type, 2.5 mm2, copper length 10mm | ||||
| PR-CL2.5-P2(12)-XX | 2.5 | 12 | Cable lug pipe type, 2.5 mm2, copper length 12mm | ||||
| PR-CL2.5-P2(18)-XX | 2.5 | 18 | Cable lug pipe type, 2.5 mm2, copper length 18mm | ||||
| PR-CL4-P2(10)-XX | 4 | 10 | Cable lug pipe type, 4mm2, copper length 10mm | ||||
| PR-CL4-P2(12)-XX | 4 | 12 | Cable lug pipe type, 4mm2, copper length 12mm | ||||
| PR-CL4-P2(18)-XX | 4 | 18 | Cable lug pipe type, 4mm2, copper length 18mm | ||||
| PR-CL6-P2(12)-XX | 6 | 12 | Cable lug pipe type, 6mm2, copper length 12mm | ||||
| PR-CL6-P2(18)-XX | 6 | 18 | Cable lug pipe type, 6mm2, copper length 18mm | ||||
| PR-CL10-P2(12)-XX | 10 | 12 | Cable lug pipe type, 10mm2, copper length 12mm | ||||
| PR-CL10-P2(18)-XX | 10 | 18 | Cable lug pipe type, 10mm2, copper length 18mm | ||||
| PR-CL16-P2(12)-XX | 16 | 12 | Cable lug pipe type, 16mm2, copper length 12mm | ||||
| PR-CL16-P2(18)-XX | 16 | 18 | Cable lug pipe type, 16mm2, copper length 18mm | ||||
| PR-CL25-P2(16)-XX | 25 | 16 | Cable lug pipe type, 25mm2, copper length 16mm | ||||
| PR-CL25-P2(18)-XX | 25 | 18 | Cable lug pipe type, 25mm2, copper length 18mm | ||||
| PR-CL25-P2(22)-XX | 25 | 22 | Cable lug pipe type, 25mm2, copper length 22mm | ||||
| PR-CL35-P2(16)-XX | 35 | 16 | Cable lug pipe type, 35mm2, copper length 16mm | ||||
| PR-CL35-P2(18)-XX | 35 | 18 | Cable lug pipe type, 35mm2, copper length 18mm | ||||
| PR-CL35-P2(25)-XX | 35 | 25 | Cable lug pipe type, 35mm2, copper length 25mm | ||||
| PR-CL50-P2(20)-XX | 50 | 20 | Cable lug pipe type, 50mm2, copper length 20mm | ||||
| PR-CL50-P2(25)-XX | 50 | 25 | Cable lug pipe type, 50mm2, copper length 25mm | ||||
| PR-CL70-P2(21)-XX | 70 | 21 | Cable lug pipe type, 70 mm2, copper length 21 mm | ||||
| PR-CL90-P2(25)-XX | 90 | 25 | Cable lug pipe type, 90 mm2, copper length 25mm | ||||
| PR-CL120-P2(27)-XX | 120 | 27 | Cable lug pipe type, 120 mm2, copper length 27 mm | ||||
| PR-CL150-P2(32)-XX | 150 | 32 | Cable lug pipe type, 150 mm2, copper length 32 mm |
| RoHS | Compliant |
