Widely field application
Different size available
Simple operation and easy wiring
RoHS compliance

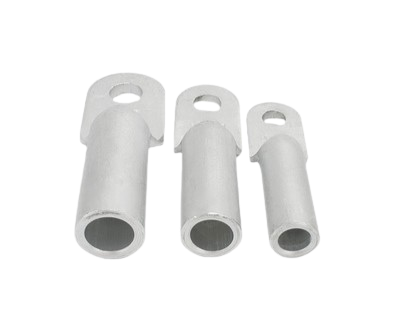

The DL Aluminium Cable Lug is a critical component designed for creating secure and highly efficient electrical terminations for aluminium conductors ranging from 10 to 300 mm². Its primary function is to establish a robust, low-resistance connection point. This enables the aluminium cable to be safely and effectively bolted onto various electrical components such as terminal blocks, busbars, circuit breakers, or other compatible devices.
| Material | Aluminum |
| PR-CLX-DL1(MX) | Cable lug 1hole, aluminum | ||
| PR | CLX | DL1 | MX |
| Default | Suitable cable dimension | Cable lug type | Fasten hold dimension |
| 10,16,25,35,50,70,95,120,150,185,240,300,... | DL type, 1hole | M8, M10, M12, M14, M16, M20 | |
| PN | φ (mm) | D (mm) | d (mm) | L (mm) | L1 (mm) |
| PR-CL10-DL1(M8) | 8.5 | 9.0 | 6.0 | 68.0 | 28 |
| PR-CL16-DL1(M8) | 8.5 | 10.0 | 6.0 | 70.0 | 30 |
| PR-CL25-DL1(M8) | 8.5 | 12.0 | 7.0 | 75 | 34 |
| PR-CL35-DL1(M10) | 10.5 | 14.0 | 8.5 | 85 | 38 |
| PR-CL50-DL1(M10) | 10.5 | 16.0 | 9.8 | 90 | 40 |
| PR-CL70-DL1(M12) | 12.5 | 18.0 | 11.5 | 102 | 48 |
| PR-CL95-DL1(M12) | 12.5 | 21.0 | 13.5 | 112 | 51 |
| PR-CL120-DL1(M14) | 14.5 | 23.0 | 15 | 120 | 53 |
| PR-CL150-DL1(M14) | 14.5 | 25.0 | 16.5 | 126 | 56 |
| PR-CL185-DL1(M16) | 16.5 | 27.0 | 18.5 | 133 | 58 |
| PR-CL240-DL1(M16) | 16.5 | 30.0 | 21 | 140 | 60 |
| PR-CL300-DL1(M21) | 21 | 34.0 | 24 | 160 | 65 |
| RoHS | Compliant |
