High grade copper material provides good contact resistance
Length is available for different request
Easy to install by the fitting ring clip
Good lightning protection performance make system well
Cable grounding kits play a vital role in protecting systems from over-voltage and ensuring reliable operation. PROSE offers high-quality grounding kits designed to safeguard your transmission systems, from antennas to base stations, against lightning strikes and other electrical surges.
Our grounding kits are crafted with premium solid copper construction, providing exceptional durability and corrosion resistance, even in harsh environments. They are engineered for quick, easy, and reliable installation, minimizing downtime and ensuring long-term performance. Whether for new installations or upgrades, PROSE grounding kits deliver dependable protection and peace of mind.

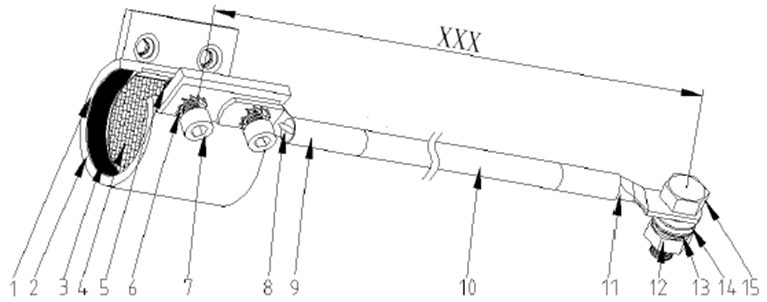

| Piece Part | Material | |
| 1, Wrap rubber | EPDM | ![]() |
| 2, Grounding strap | Stainless steel SUS304 | |
| 3, Butyl rubber tape | Butyl rubber | |
| 4, Braided tape | Copper, Tin-plated | |
| 5, O-ring washer | Rubber | |
| 6, Serrated washer | Stainless steel SUS304 | |
| 7, Inner hexagon screw M6×25 | Stainless steel SUS304 | |
| 8, Single hole Cable lug M6 | Copper, Tin-plated | |
| 9, Heat shrinkable tube | Polyolefin | |
| 10, Grounding cable 16 mm2 | Copper(conductor), PVC (jacket), Black | |
| 11, Cable lug M8 | Copper, tinned plated | |
| 12, Nut M8 | Stainless steel SUS304 | |
| 13, Spring washer | Stainless steel SUS304 | |
| 14, Plain washer | Stainless steel SUS304 | |
| 15, Bolt M8×25 | Stainless steel SUS304 |
| Contact Resistance | ≤4 mΩ |
| Max. Current Handling | ≥50 kA |
| Working Temperature | -40 to +70 ℃ |
| IP Protection | IP68 |
| RoHS | Compliant |

Grounding kit for 1/2" super flexiable feeder cable, cable length as required

Grounding kit for 1/4" feeder cable, cable length as required

Grounding kit for 1/2" feeder cable, cable length as required

Grounding kit for 7/8" feeder cable, cable length as required
