High grade copper material provides good contact resistance
Length is available for different request
Easy to install by the fitting ring clip
Good lightning protection performance make system well

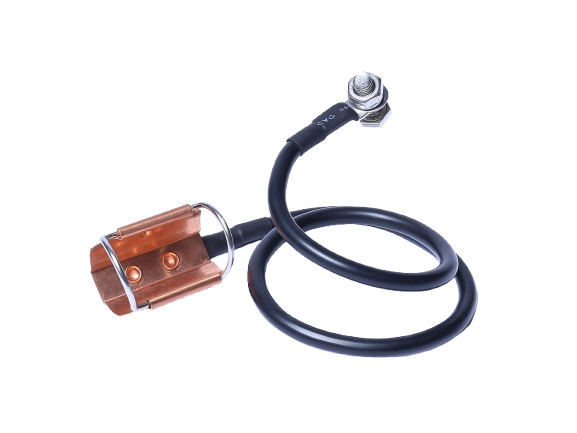

Cable grounding kits play a vital role in protecting systems from over-voltage and ensuring reliable operation. PROSE offers high-quality grounding kits designed to safeguard your transmission systems, from antennas to base stations, against lightning strikes and other electrical surges.
Our grounding kits are crafted with premium solid copper construction, providing exceptional durability and corrosion resistance, even in harsh environments. They are engineered for quick, easy, and reliable installation, minimizing downtime and ensuring long-term performance. Whether for new installations or upgrades, PROSE grounding kits deliver dependable protection and peace of mind.

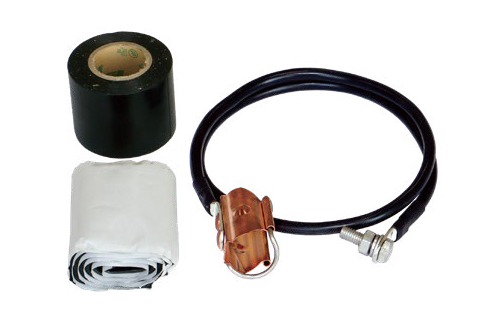

| Piece Part | Material |
| Jump ring | Stainless steel SUS304 |
| Grounding strap | Copper |
| Rivet/bolt kit | Copper |
| Cable lug | Copper, tin-plated |
| Heat shrink tube | Polyolefin |
| Grounding cable BV 16 mm2 | Copper+PVC, Black |
| Single hole cable lug M8 | Copper, tin-plated |
| Bolt set M8x25 | Stainless steel SUS304 |
| Rubber tape | Butyl rubber tape 63.5 mmx0.6 m |
| Insulation tape | PVC insulation tape 50 mmx10 m |
| Contact Resistance | ≤4 mΩ |
| Max. Current Handling | ≥50 kA |
| Working Temperature | -40 to +70 ℃ |
| IP Protection | IP68 |
| RoHS | Compliant |
.png)
Grounding kit for 1/4" feeder cable, cable length as required

Grounding kit for 1/4" feeder cable, cable length as required

Grounding kit for 1/2" feeder cable, cable length as required

Grounding kit for 1/2" super flexiable feeder cable, cable length as required
