Aluminum-magnesium alloy plate, stainless steel hoop
High flame retardant and aging-anti rubber material
Effective protection against acid and alkali corrosion, UV radiation
Light weight, high strength, beautiful appearance
Boot dimension 4”
Aluminum Feed-Thru Entry Panels provide a reliable solution for routing multiple coaxial cables into buildings or shelters while preventing moisture ingress. These panels are designed to support coaxial cables at the entry point and ensure a secure fit with cushion-supported boot assemblies.
Available in a variety of hole patterns and plate sizes, our Feed-Thru Entry Panels can be tailored to suit both interior and exterior wall applications. Each panel includes wall attachment hardware, making installation quick and easy. Boot assemblies and cushions are sold separately, allowing for flexible customization based on your specific needs. Whether for new builds or upgrades, these panels deliver durability and protection for seamless cable management.
| Item | Piece Part | Material | Draft Drawing |
| 1 | Cable entry plate | Aluminum, gray power coated | ![]() |
| 2 | Protection caps | Rubber black | |
| 3 | Expansion bolts | Q235, zinc plated | |
| 4 | Seal retainer | Rubber black | |
| 5 | Metal hoop1 | Stainless steel 304 | |
| 6 | Metal hoop2 | Stainless steel 304 | |
| 7 | Seal skirt | Rubber black | |
| 8 | Sealing plug | Rubber black |
| Working Temperature | -40 to +70 ℃ |
| UV Resistance | ASTM G154-06 Gycle1 |
| RoHS | Compliant |

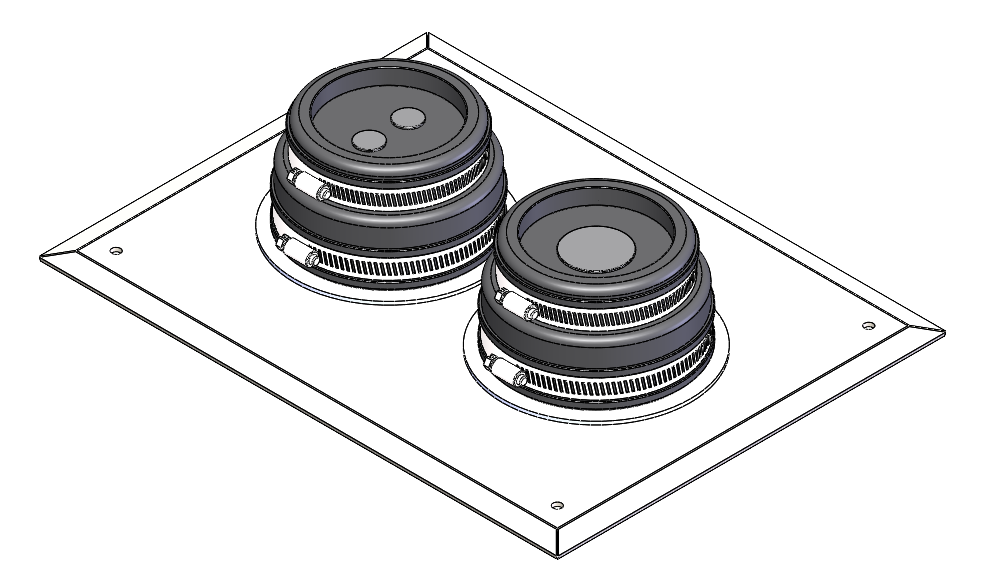

| Suitable for Cable | 1/2" feeder cable | 1 1/4" feeder cable |
| Qty. of Cable | 2 ways | 1 way |

Entry set with 2 boots of 3 holes x 7/8” feeder cable

Entry set with 1 boot of 4 holes x 7/8” feeder cables
.jpg)

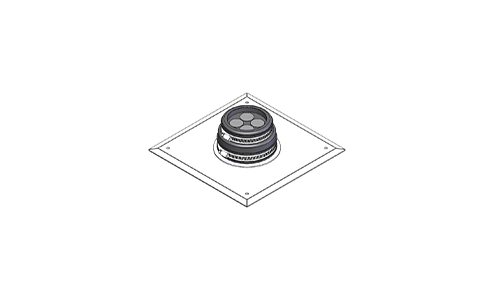

Entry set with 1 boot of 3 holes x 1/2” feeder cables

Entry set with 4 boots of 1 hole x 1 5/8” feeder cable
