Antenna frequency: 4 x (2300-2690) MHz
3dB azimuth beamwidth: 90 (°)
Gain: 17.1 (dBi)
Electrical downtilt: 2-12 (°)
Connector: 8 x 4.3-10 female, Cal: 1 x 4.3-10 female
Dimension: 1570 x 305 x 115 (mm)
Status of product: general available
TDD Beamforming Antenna
Integrated RET (AISG 2.0 Compliant), field exchangeable
| Frequency | 4 x (2300-2690) MHz |
| Gain | 17.1 dBi |
| 3dB Azimuth Beamwidth | 90 ° |
| Electrical Downtilt | 2-12 ° |
| 1st Upper Sidelobe Suppression | > 16 dB |
| VSWR | < 1.5 |
| Intra - Cluster Isolation | > 25 dB |
| Inter - Cluster Isolation | > 25 dB |
| 3rd PIM(2 x 43 dBm) | < -150 dBc |
| Impedance | 50 Ω |
| Connector Type | 8 x 4.3-10 female, Cal: 1 x 4.3-10 female |

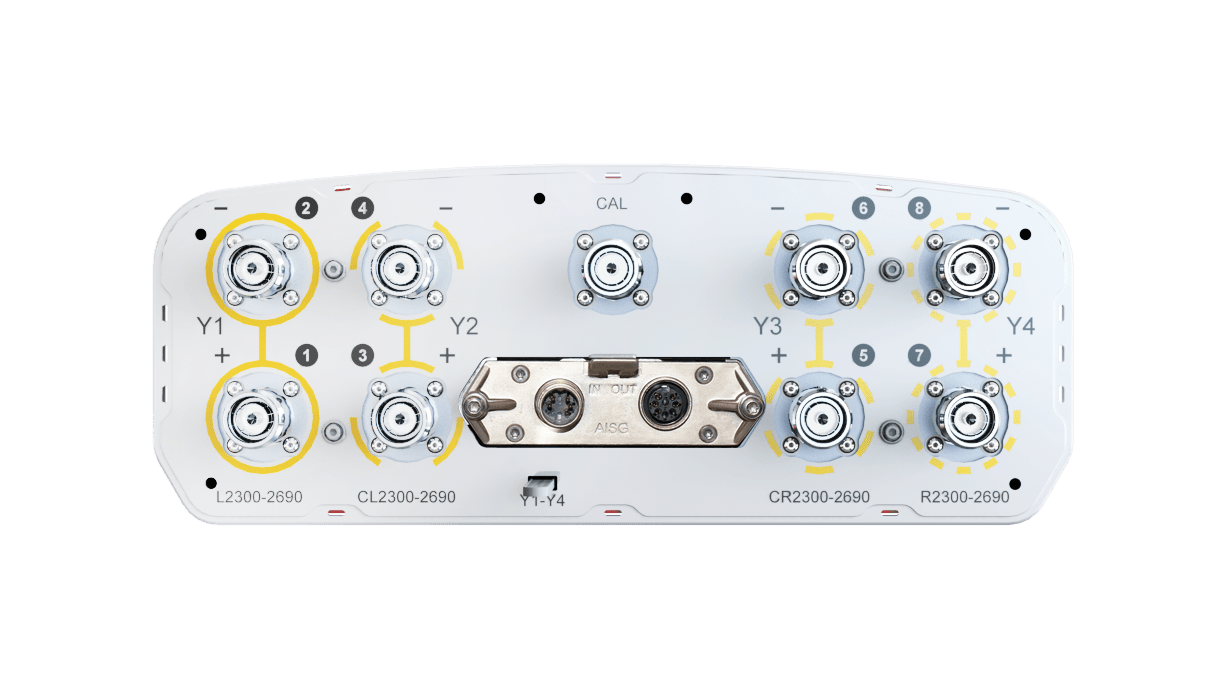

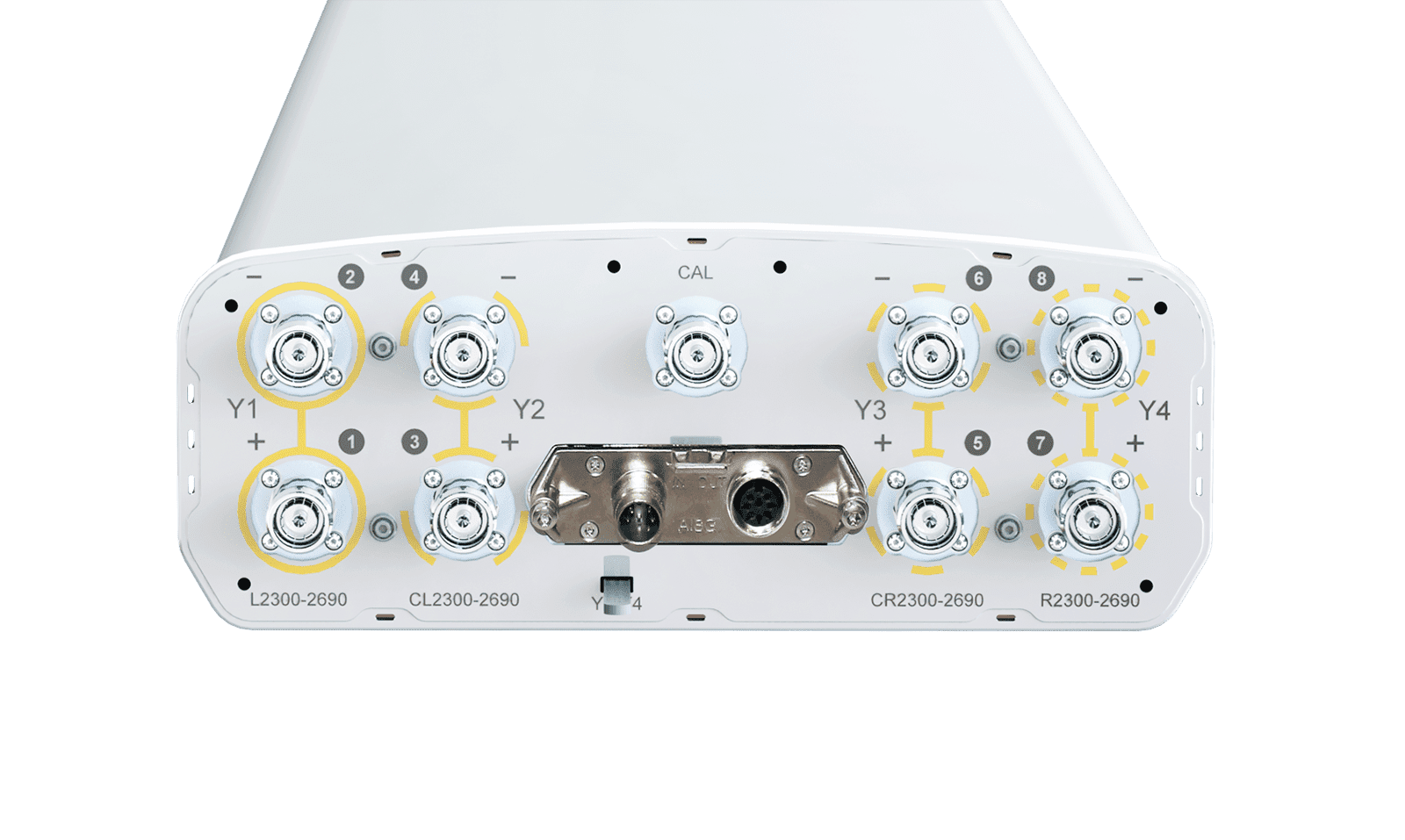

| Connector Position | Bottom |
| Lightning Protection | DC ground |
| Radome Material | Fiberglass |
| Radome Color | Light grey |
| Antenna Dimensions (H x W x D) | 1570 x 305 x 115 mm ∣ 61.8 x 12.0 x 4.5 in |
| Packing Size (H x W x D) | 1720 x 375 x 260 mm ∣ 67.7 x 14.7 x 10.2 in |
| Survival Wind Speed | 241 km/h ∣ 150 mph |
| Wind Load @150 km/h (Max) | 448 N ∣ 101 lbf |
| Mast Diameter Supported | 50 - 110 mm ∣ 2.0 – 4.3 in |
| Relative Humidity | 5% - 95% |
| Operating Temperature Range | -40 ~ +70 °C ∣ -40 ~ +158 °F |
| Compatible Standards | AISG2.0/ 3GPP |
| Power Consumption | ≤2(stand by); ≤13(operating) |
| Configuration Management | Integrated RET, pre-configured |
| Software Upgradability | True |
| Replaceability in Field | True |
| 2300-2690 | |||
| Column Beam | Broadcast Beam | 0° Service Beam | 30° Service Beam |
![]() |
![]() |
![]() |
![]() |

| Item | Model | Weight | Mechanical tilt range (°) |
| Mounting Kit | RAPMK-L1 | 2.5 kg / 5.5 lb | 0-10 |
