Compact size, low weight
Guaranteed PIM performance
Flat attenuation value
Reliable power handling
Customized connector interface

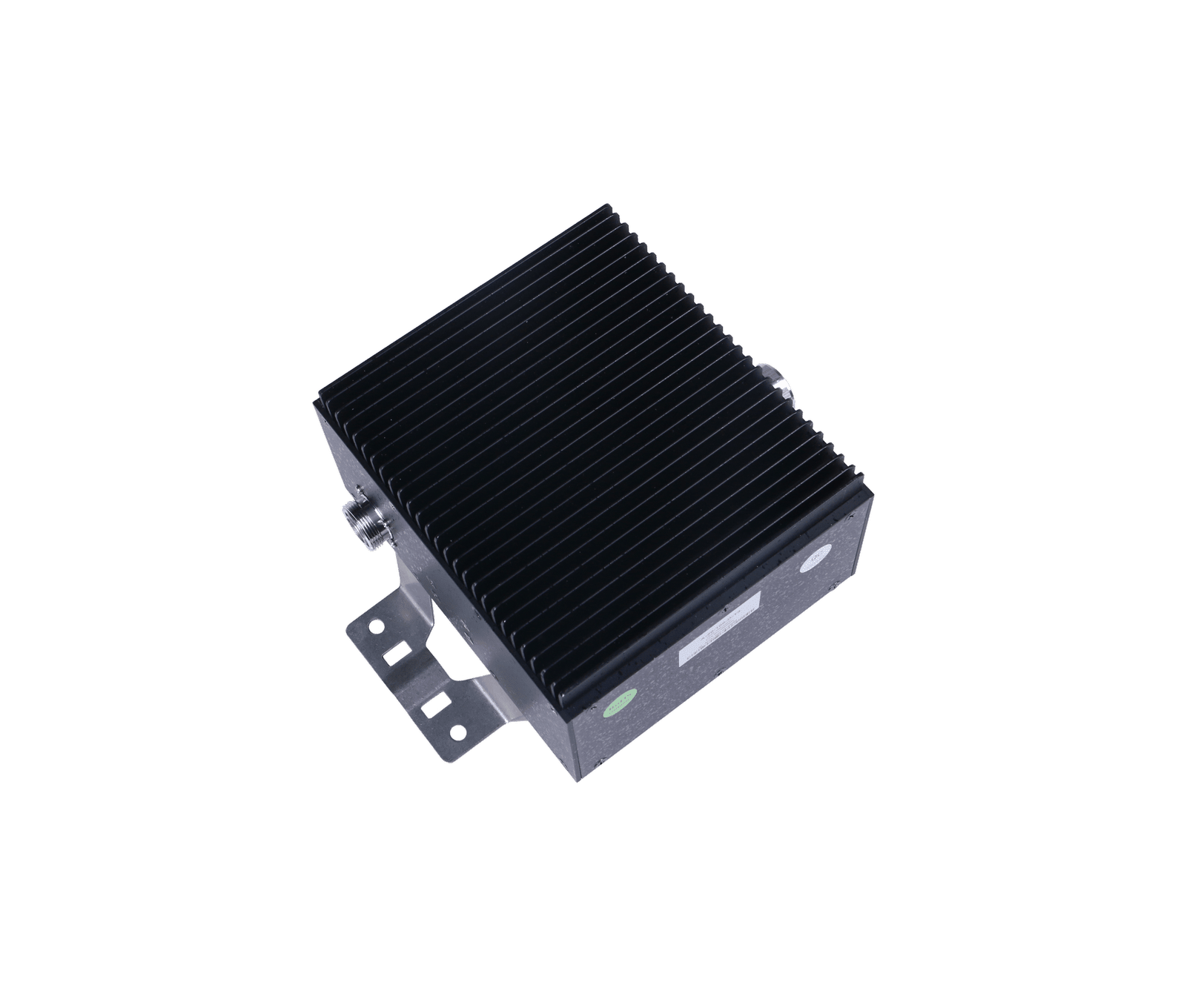

RF coaxial attenuator is an energy loss type RF component that provides different power levels and optional attenuation values, making it easy, fast, and reliable to adjust the power level in the RF link. Some models have the characteristic of low PIM, which can effectively avoid intermodulation interference to the signal receiver.
| Frequency | 698-4000 MHz |
| Return Loss / VSWR | ≤-19 dB/1.25 |
| Various Attenuation | Refer to the datasheet |
| Attenuation Ripple | Refer to the datasheet |
| Power Handling | 50 W |
| PIM | ≤-155dBc@2×20W |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | Indoor |
| Dimension | 158×220×108 (mm) |
| Weight | 3.5 kg |
| Connectors Type | 4.3-10 male to 4.3-10 female |
| Packing | 1Pcs in box |
