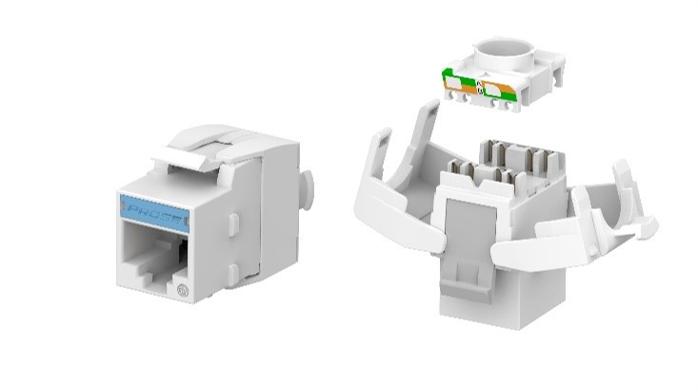

PROSE CAT.5e keystone jacks are components of the cabling system.
They are applied in structured premise cabling and data center cabling and used with outlet faceplate and modular patch panel.
PROSE Cat.5e keystone jacks meet and exceed ANSI/TIA-568.2-D and ISO/IEC 11801 requirements.
Outstanding performance,(including IR, NEXT, FEXT and RL), which ensure the high link performance.
Termination cap provides excellent strain relief, helps control cable bend radius and securely retains wires.
Wiring scheme: T568 A/B.
Available in many colors for label.
EU RoHS compliance.
Other standards: FCC part 68, Subpart F, IEC 60603-7, EN50173-1.
| Voltage Rating | 125 VAC RMS |
| Current Rating | 1.5 AMP |
| Contact Resistance | 20 mΩ Max. |
| Insulation Resistance | 100MΩ Min. @ 500V DC |
| Dielectric Strength | 750V AC RMS 60Hz 1MIN |
| Unbalance Capacitance | ≤330pF/100m |
| Housing Material | PC UL94V-0 |
| Insert Material | PC+20%GF UL94V-0 |
| PCB Material | FR-4 |
| Contact Material | Phosphor bronze |
| IDC Contact Material | Phosphor bronze with silver or nickel plating |
| Wire | AWG 22 ~ 26 |
| Life (Plug in /out) | ≥750 times |
| IDC Life | ≥200 times |
| Frequency(MHz) | Attenuation (dB/100m) |
NEXT (dB) |
RL (dB) |
PSNEXT (dB) |
FEXT (dB) |
PSFEXT (dB) |
| Max. | Min. | Min. | Min. | Min. | Min. | |
| 1.0 | 0.10 | 65.0 | 30.0 | 80.0 | 65.0 | 72.1 |
| 4.0 | 0.10 | 65.0 | 30.0 | 68.0 | 63.1 | 60.1 |
| 8.0 | 0.11 | 64.9 | 30.0 | 61.9 | 57.0 | 54.0 |
| 10.0 | 0.13 | 63.0 | 30.0 | 60.0 | 55.1 | 52.1 |
| 16.0 | 0.16 | 58.9 | 30.0 | 55.9 | 51.0 | 48.0 |
| 20.0 | 0.18 | 57.0 | 30.0 | 54.0 | 49.1 | 46.1 |
| 25.0 | 0.20 | 55.0 | 30.0 | 52.0 | 47.1 | 44.1 |
| 31.25 | 0.22 | 53.1 | 30.0 | 50/1 | 45.2 | 42.2 |
| 62.5 | 0.32 | 47.1 | 24.1 | 44.1 | 39.2 | 36.2 |
| 100.0 | 0.40 | 43.0 | 20.0 | 40.0 | 35.1 | 32.1 |
| Weight | 22 g |
| Included Parts | 1 termination bar,1 cable tie |
| Packaging | Individually packaged in a plastic bag |
