RF coaxial system protection
Frequency up to 3.0GHz
High discharge current range
PROSE's expertise in coaxial technologies enables us to offer high-performance surge arresters designed to protect coaxial systems and terminal equipment.
With a maximum discharge capacity and low voltage protection levels, our surge arresters ensure reliable protection against power surges, making them ideal for critical telecommunications and RF applications.
Built with extremely durable contact materials, our surge arresters provide long-term stability and performance. They are easy to integrate into existing systems, ensuring seamless operation and enhanced durability for sensitive equipment in demanding environments.
| Characteristics Impedance |
50 Ω |
|
| Frequency | 0-3 GHz | |
| Insulation Resistance | ≥5000 MΩ | |
| Center Contact Resistance | 1.0 mΩ | |
| Outer Contact Resistance | 0.25 mΩ | |
| Nominal Impulse Discharge Current, wave 8/20us | 10 kA | |
| Insertion Loss | ≤0.3 dB | |
| VSWR | ≤1.2 | |

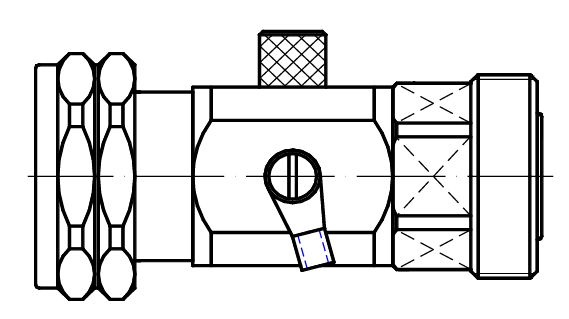

| Interface |
DIN male, DIN female |
|
| Mating Cycles | 500 times | |
| Operating Temperature |
-40 to +85 ℃ |
|
| RoHS | Compliant | |
_495x300(1).jpg)
RF coaxial surge arrester, N female to N female
_495x300.jpg)
RF coaxial surge arrester, N male to female
_495x300.jpg)
RF coaxial surge arrester, 4.3-10 male to female
_495x300.jpg)
RF coaxial surge arrester, 4.3-10 female to female
