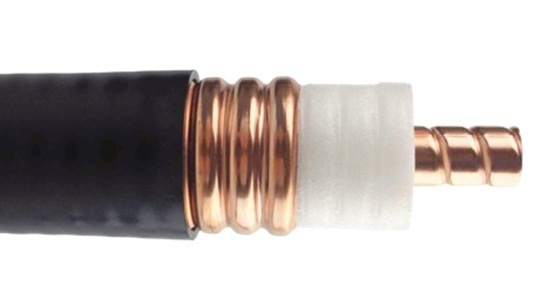

1-5/8" foam insulation coaxial cable
Corrugated copper outer conductor
Black PE jacket, outdoor application
Operating frequency: DC to 2700 MHz
PROSE RF cable adopts high-quality copper conductor and high-performance insulation structure, effectively ensuring low signal loss and stable transmission performance.
Widely used in communication systems, it can provide stable and reliable signal transmission for various RF equipment and antenna feeder systems.
| Inner Conductor Material | Corrugated copper tube | |
| Dielectric Material | Foam PE | |
| Outer Conductor Material | Corrugated copper(Annularly) | |
| Jacket Material | PE, Black, Halogen free | |
| Nominal Size | 1-5/8" | |
| Inner Conductor OD. | Ø 18.0 mm | |
| Dielectric OD. | Ø 43.5 mm | |
| Outer Conductor OD. | Ø 46.5 mm | |
| Jacket OD. | Ø 49.5 mm | |
| UV Resistance | UL 1581 or IEC 60068-2-5 | |
| Impedance | 50±1 Ω | |
| Relative Velocity of Propagation | 88 % | |
| Capacitance | 75 pF/m | |
| Inductance | 0.190 uH/m | |
| Maximum Operating Frequency | 2.7 GHz | |
| Cut-off Frequency | 2.8 GHz | |
| Peak Power Rating | 320 kW | |
| Insulation Resistance | ≥10 GΩ·km | |
| DC Breakdown Voltage | 15000 V | |
| Jacket Spark Test Voltage | 10000 Vrms | |
| Tensile Strength | 3300 N | |
| Min. Bending Radius (single) | 300 mm | |
| Min. Bending Radius (repeated) | 510 mm | |
| Number of Bends, Minimum (typical) | 15 (50) | |
| Bending Moment | 60 N.m | |
| Recommended Hanger Spacing | 1.2 m | |
| Installation Temperature | -40°C to +60°C | |
| Operating Temperature | -50°C to +85°C | |
| Storage Temperature | -50°C to +85°C | |
| RoHS | Compliance | |
| Attenuation, Ambient Temperature | 20°C | |
| Average Power, Ambient Temperature | 40°C | |
| Average Power, Inner Conductor Temperature | 100°C | |
| Return Loss | 800MHz to 1000MHz | ≤-24 dB | |
| 1700MHz to 2500MHz | ≤-24 dB | ||
| 2500MHz to 2700MHz | ≤-21 dB | ||
|
Frequency (MHz)
|
Attenuation (dB/100m)
|
Average Power(kW)
|
|
100
|
0.66
|
14.50
|
|
200
|
0.96
|
10.10
|
|
300
|
1.16
|
7.90
|
|
400
|
1.35
|
6.88
|
|
450
|
1.44
|
6.29
|
|
800
|
2.00
|
4.54
|
|
900
|
2.12
|
4.24
|
|
1000
|
2.25
|
4.05
|
|
1800
|
3.16
|
2.82
|
|
2000
|
3.36
|
2.68
|
|
2200
|
3.55
|
2.52
|
|
2500
|
3.84
|
2.34
|
|
2700
|
4.02
|
2.07
|
|
*Maximum attenuation value shall be 105% of the nominal attenuation value.
|
||
