AC input, single phase
DC output, 48V system application
Power and current monitor
Alarm monitor

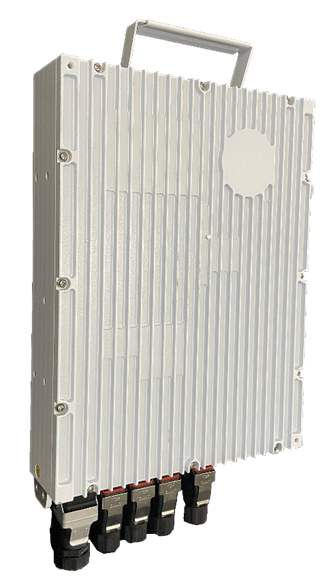

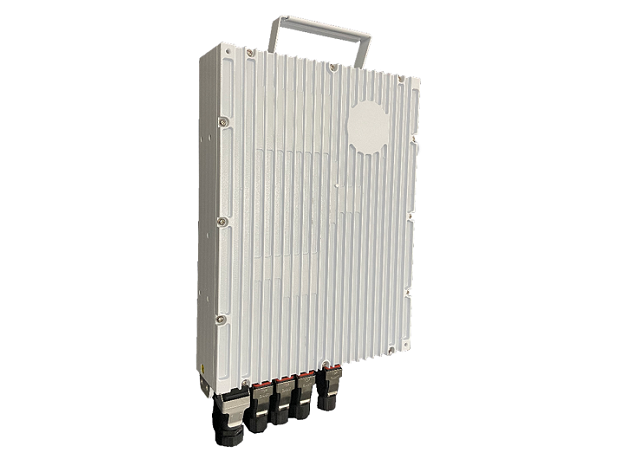

This product is called of Pad-Power system, it is designed for the demanding of power supply in high density urban and residential environment for 4G/5G devices.
All the system parts, including the rectifier, controller, distribution and Lithium battery (including BMS), are housed in an IP65 aluminum alloy box, ensure the stability and reliability with outdoor and indoor environment conditions.
It supports both pole-mounted and wall-mounted implementations.
It has the bebifit and feature as below:
| Items | Description | Qty | Photo for reference | |
| Rack | Cast aluminum | 1 pc | ![]() |
|
| AC Input | AC connector, waterproof | 1 port | ||
| DC Output | DC connector, waterproof | 3 x 40 A | ||
| Battery Load | DC connector, waterproof | 1 x 60 A | ||
| Rectifier | Inside | 1 pc | ||
| Monitor | Inside | 1 pc | ||
| Input Voltage |
Single phase 220V (90- 275 V AC) |
|
| Input Frequency | 45 - 65 Hz | |
| Power Factor | ≥0.99 (full load) | |
| Input Protection | Soft start | |
| Surge protection | ||
| Overvoltage protection | ||
| Nominal Output Voltage |
54.5 V DC (43V DC to 58V DC) |
|
| Output Power | 3000 W | |
| Output Port | 3 | |
| Output Current | 40A per port | |
| Efficiency | >96.5% (50% to 100% load) | |
| Operating Temperature Range |
-40 to +70 ℃ |
|
| Storage Temperature Range) | -40 to +70 ℃ | |
| Operating Humidity Range |
5% to 98% RH, non-condensing |
|
| Storage Humidity Range | 0% to 98% RH, non-condensing | |
| Acoustic Noise | <45 dB | |
| IP Rating | IP65 | |
| Electical Safety |
EN/IEC 60950-1 |
|
| EMC | EN 55024, Class A, EN61000-4-5 | |
