Compact size, low weight
Guaranteed PIM performance
Reliable power handling
Customized connector interface

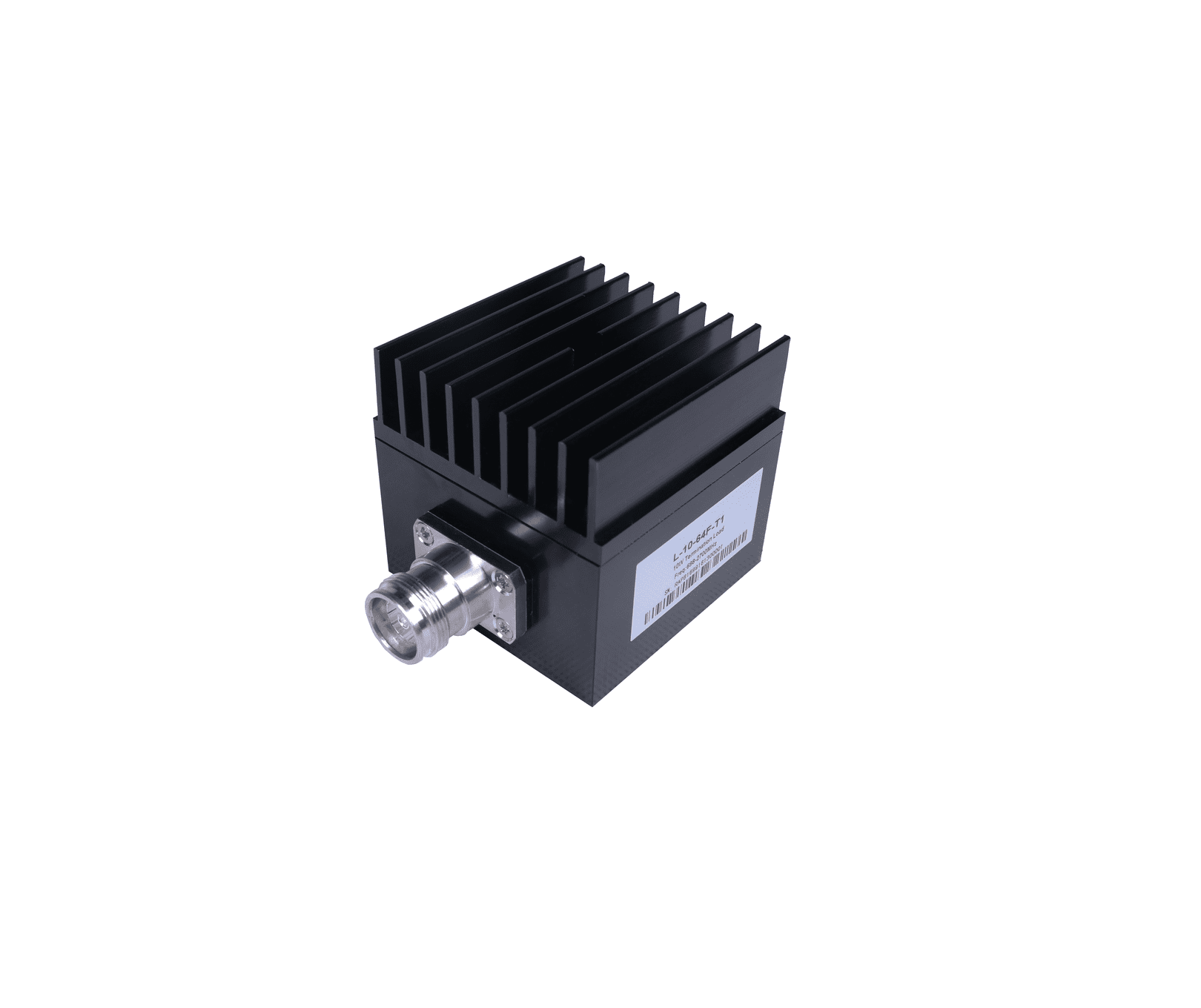

RF dummy loads are mainly used to absorb energy from empty ports in communication systems, avoiding signal reflection that may damage the receiver or reduce its performance. They can also be used to match spare output ports and provide protection for external connectors.
| Frequency | 698 - 3800 MHz |
| Return Loss / VSWR | ≤-19 dB/1.25 |
| Power Handling | 100 W |
| Intermodulation (3rd order) | ≤-160dBc@2x43dBm |
| Impedance | 50 Ω |
| Operating Temperature Range | -30 °C to +70 °C |
| Storage Temperature Range | -40 °C to +85 °C |
| Relative Humidity | 0% - 95% |
| Barometric Pressure | 55 KPa - 106 KPa |
| Applications | IP65 |
| Dimension | 129 x 100 x 66 (mm) |
| Weight | 1.3 kg |
| Connectors Type | 4.3-10 male |
| Packing | 1Pcs in box |
