Flame Retardancy: meet flame retardancy standards
Electrical Insulation: provides strong dielectric strength
Durability & Protection: highly resistant to abrasion, moisture, UV light, and weathering
Conformability & Stretch: easily stretches and conforms tightly to irregular shapes, cables, and connections

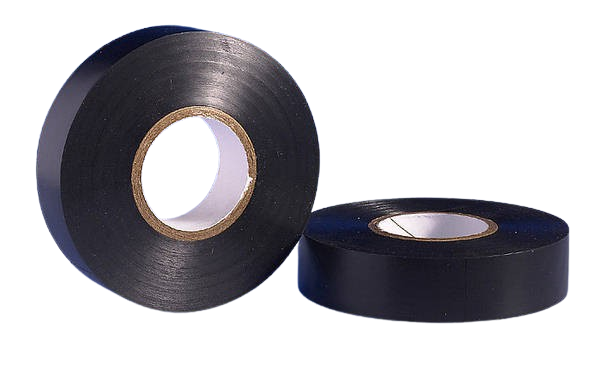

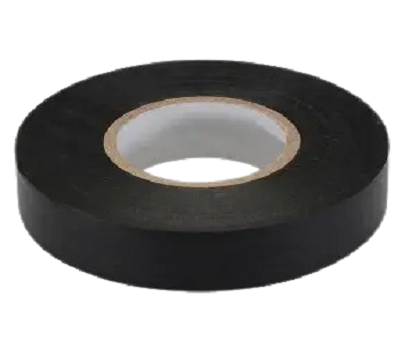

Electrical PVC tape, known for its excellent electrical insulation properties. It consists of a flexible backing film made of plasticized Polyvinyl Chloride (PVC) coated with a pressure-sensitive rubber-based adhesive. The PVC film provides the physical protection and insulation, while the adhesive ensures secure bonding. It is typically supplied in rolls of various widths and lengths.
Common Uses:
| PR-TP3-19x20 | PVC Tape 19mmx20mx0.18mm |
| Nom.Width | 19 mm |
| Nom.Length | 20 m |
| Nom.Thickness | 0.18 mm |
| Rating Voltage | 600 V |
| Elongation | 250 % |
| Adhesion | 0.196 kN/m |
| Tensile Strength | 2.98 kN/m |
| Dielectric Resistance | 40 kN/m |
| Isolation Resistance | 1.2x1012 Ω |
| Working Temperature | -15 to +105 ℃ |
| Flammability | ASTM D-1000, 4S |
| RoHS | Compliant |
